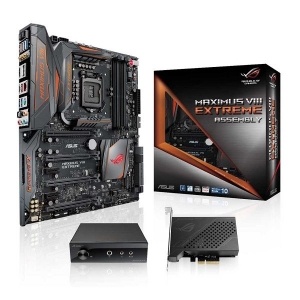

ASUS-90MB0LU1-M0UAY0 | ASUS MAXIMUS VIII EXTREME Motherboard

CPU

- Intel Socket 1151 for 6th gen Core i7, i5, i3, Pentium & Celeron processors

Chipset

- Intel Z170

Form Factor

- eATX

Dimensions

- 30.5 x 27.2cm

Memory

- 4x DIMM, Max. 64GB, Non-ECC, Un-buffered Dual Channel Memory Architecture supporting:

- DDR4 3866(O.C.)

- DDR4 3800(O.C.).

- DDR4 3733(O.C.)

- DDR4 3600(O.C.)

- DDR4 3500(O.C.)

- DDR4 3466(O.C.)

- DDR4 3400(O.C.)

- DDR4 3333(O.C.)

- DDR4 3300(O.C.)

- DDR4 3200(O.C.)

- DDR4 3000(O.C.)

- DDR4 2800(O.C.)

- DDR4 2666(O.C.)

- DDR4 2400(O.C.)

- DDR4 2133

Expansion Slots

- 3x PCIe 3.0/2.0 x16 (x16 or dual x8 or x8/x4/x4).

- 1x PCIe 3.0/2.0 x16 (x4 mode)

- 2x PCIe 3.0/2.0 x1

Storage

- 1x M.2 Socket 3, with M Key, type 2242,2260,2280,22110 storage devices (SATA & PCIE SSD).

- 8x SATA 6Gbs ports with 4 ports from 2x SATA Express

- 2x SATA Express ports

- 1x U.2 port

- Supports RAID 0, 1, 5 & 10

Back I/O Ports

- 1x PS/2 combo

- 1x DisplayPort

- 1x HDMI

- 1x LAN RJ45

- 3x USB 3.1 Type-A

- 1x USB 3.1 Type-C

- 4x USB3

- 1x SPDIF

- 5x Audio

- 1x Clear CMOS button

- 1x USB BIOS Flashback button

- 1x ASUS Wi-Fi GO! Module
