Overview

Small, Light, Fast!

The World's First NUC Mini PC with a USB Type-C Port.

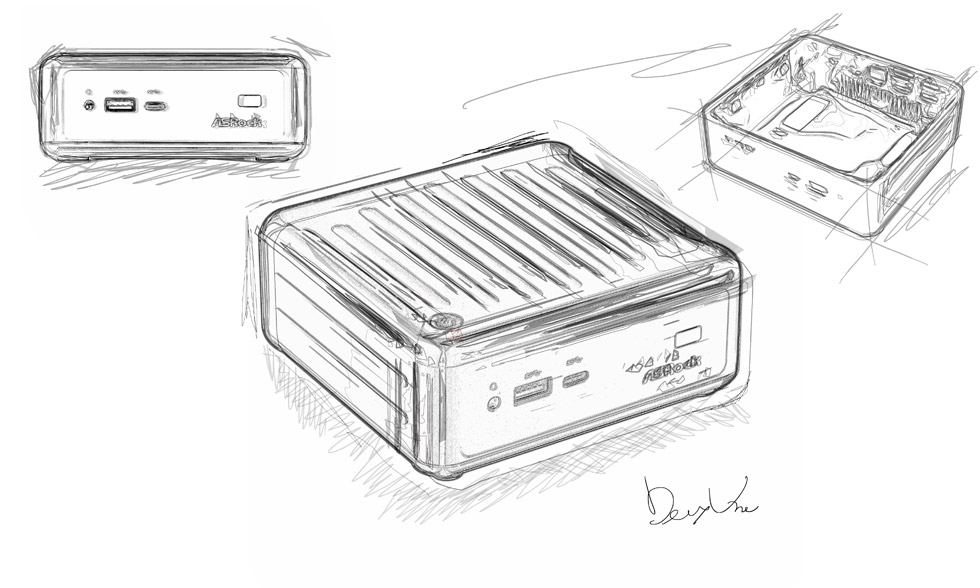

Design Concept

Why Beebox?

The design concept of ASRock Beebox originated from one of the most common insects Bees. By squeezing a cutting edge Intel N3000 Series SoC powered motherboard and other peripherals into a compact chassis, Beebox is small, fast, hard working just like a bee, all but the distracting buzzing noise.

One Size Fits All

A home theater system for your living room thats also quiet enough for your bedroom, and powerful enough for a daily computing PC

Home Theater PC
Bedroom PC
Office Desktop

A miniature PC for office tasks, stock monitoring, educational purposes or even digital signage. Makes your business bloom in no time.

Commercial
Government
Education

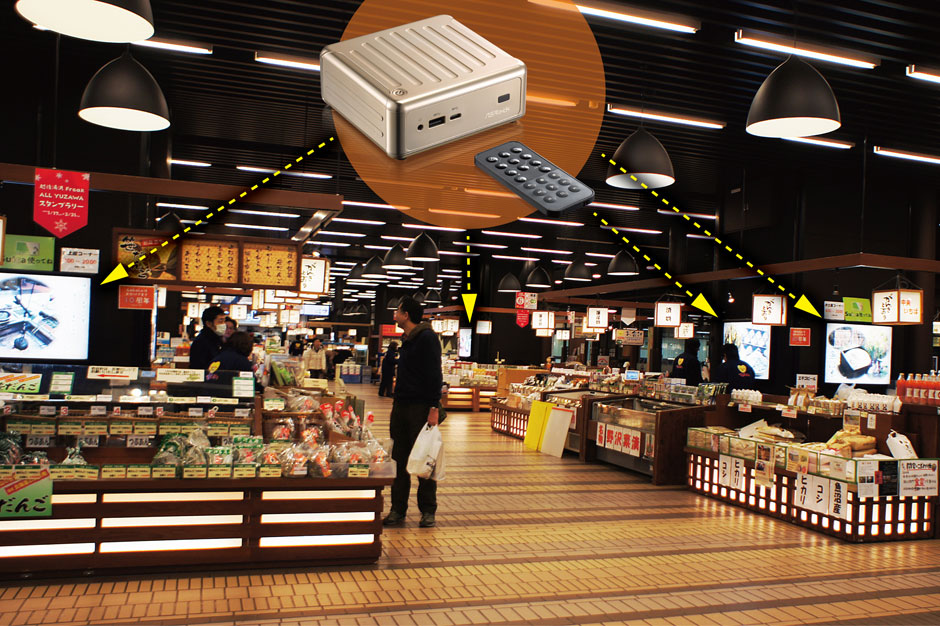

Digital signage
Industrial PC
(Digital Signage)

Drives three independent monitors for working smart

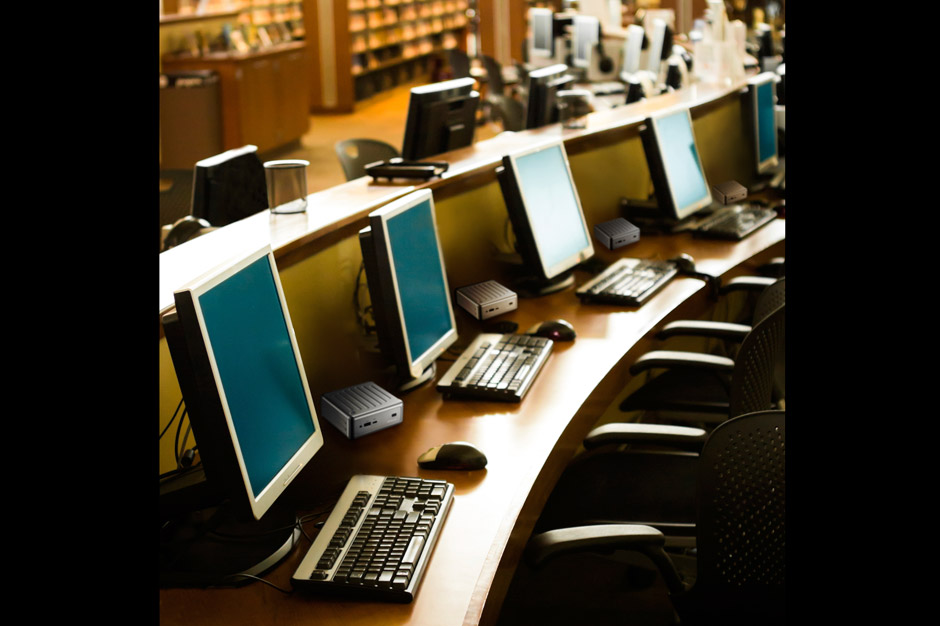

It's quite enough for libraries or classroom

Impree onlookers with 4K video playback

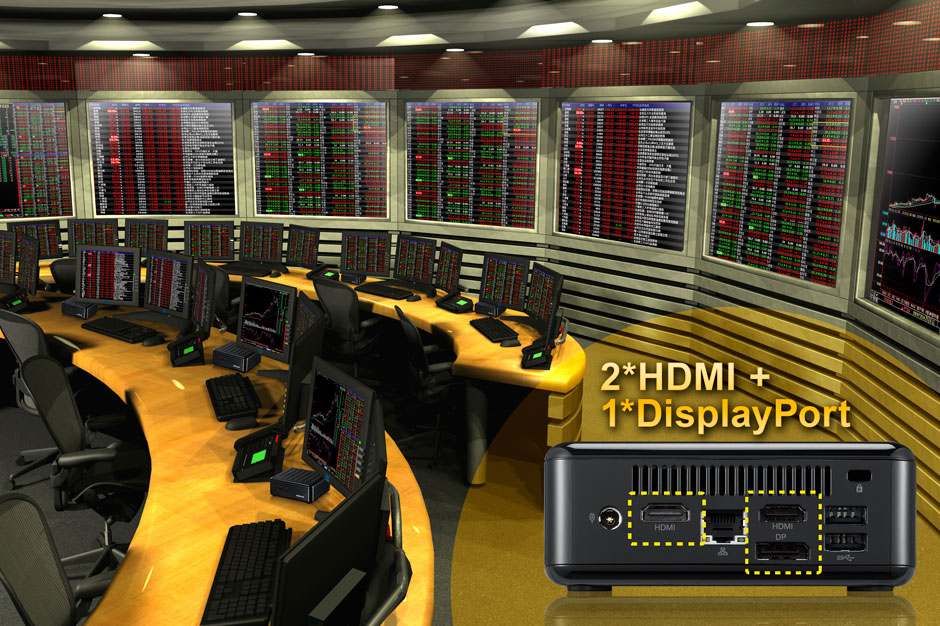

Drive multiple monitors simultaneously

Compact yet powerful for drumming up business

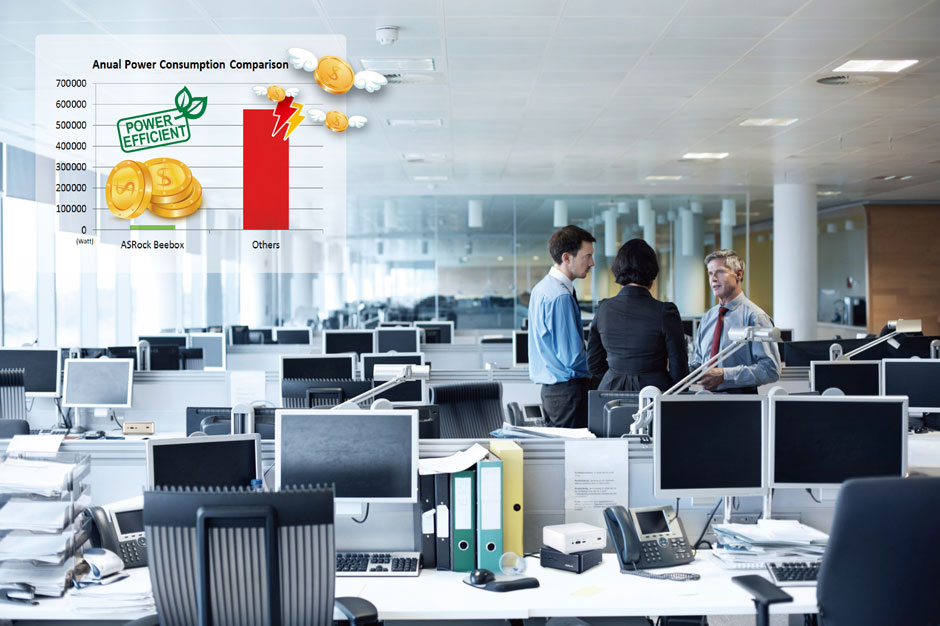

So power efficient it reduces your electricity bill

Extremely easy for first time users to setup and use

Unique Features

Three Graphics Outputs & 4K Playback

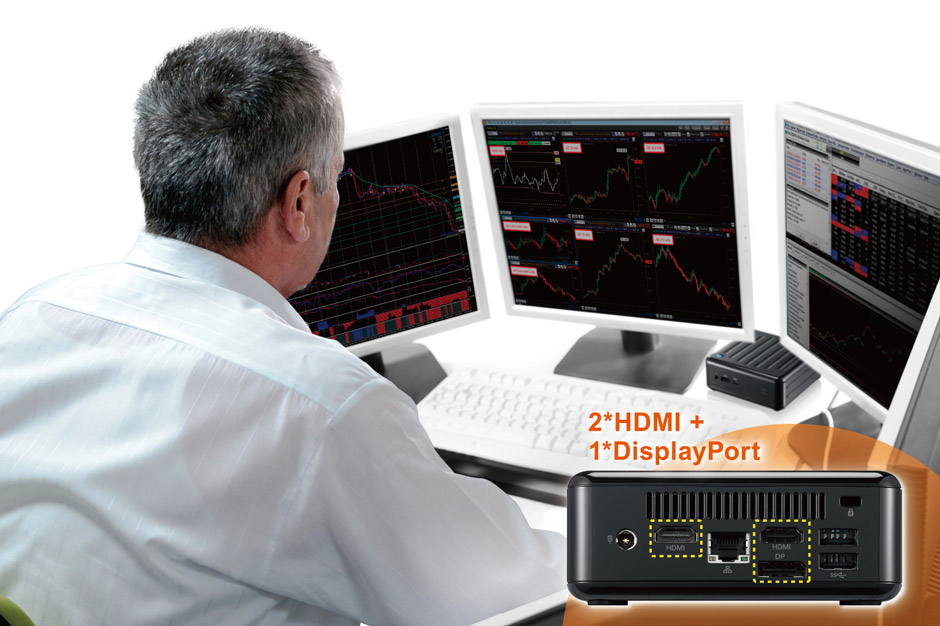

Triple Monitor

Lights up three monitors simultaneously via two HDMI ports and one DisplayPort.
*This DisplayPort only supports DP to D-Sub dongles. DP to HDMI dongles and DP to DVI dongles are not supported.
*To power up three monitors, please connect your monitors to 2*HDMI and 1*DP ports or 2*HDMI and 1*D-Sub ports via a DP to D-Sub dongle.

4K Support

The only system in the segment that supports dual channel memory for supporting 4K video playback.
*Dual channel memory is required for 4K video playback. Please install a pair of identical memory DIMMs.

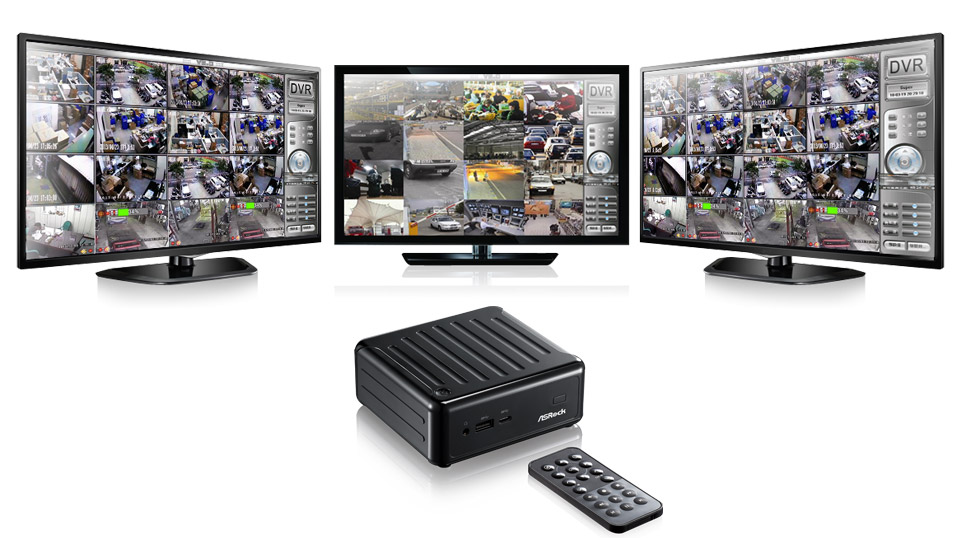

Supports Up to 48CH H.265 IP Cameras

Beebox is able to work as an industrial grade 48 channel NVR (Networking Video Recorder) system. It is also capable of HEVC (H.265) recording for up to 48 IP cameras in D1 (704x576) resolution.

Swift Data Transfer and Device Charging Type-C USB

The World's First NUC with a USB Type-C Port

USB Type-C doubles the charge speed!

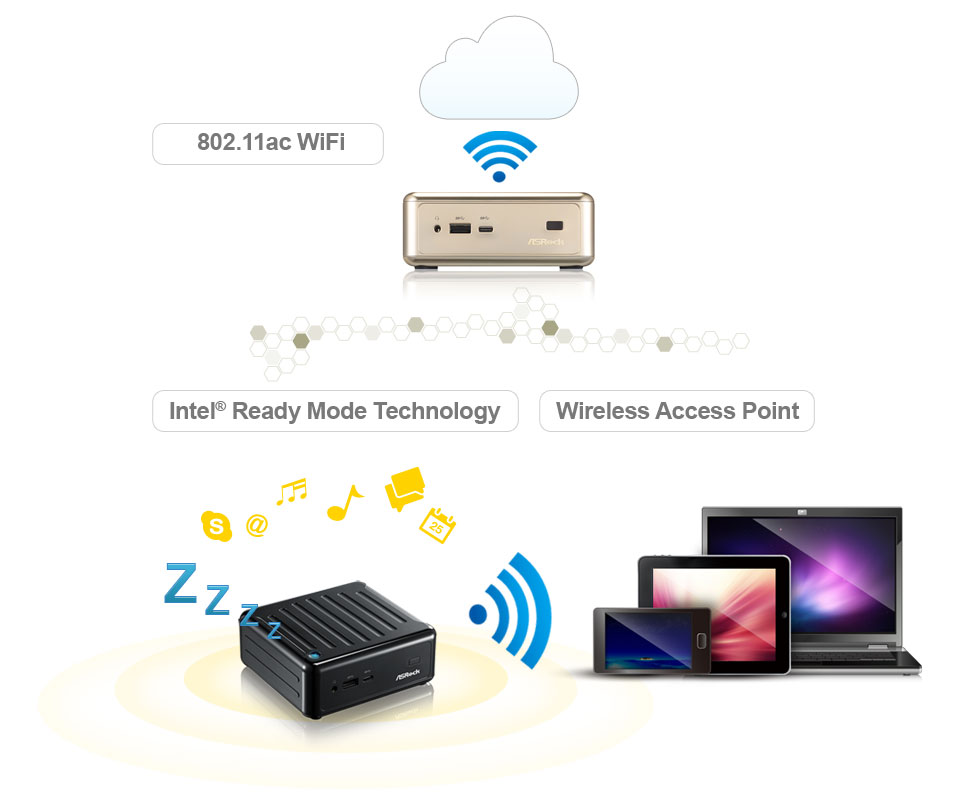

The Fastest Wireless Internet 802.11ac WiFi

Beebox comes with an exclusive 802.11ac WiFi (2.4G/5G WiFi) module and also works as a wireless access point. With IntelReady Mode Technology (RMT), Beebox may remain silent, display off, but still actively receive incoming emails, updates, social media alerts, and continue to serve as a wireless access point while minimizing power consumption.

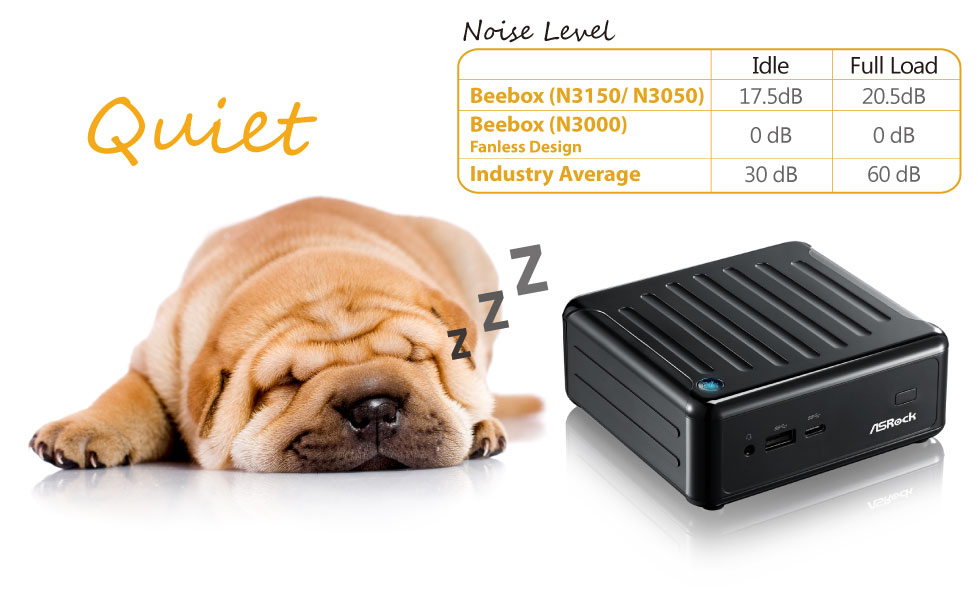

Quiet Design

A special design that produces absolutely zero noise.

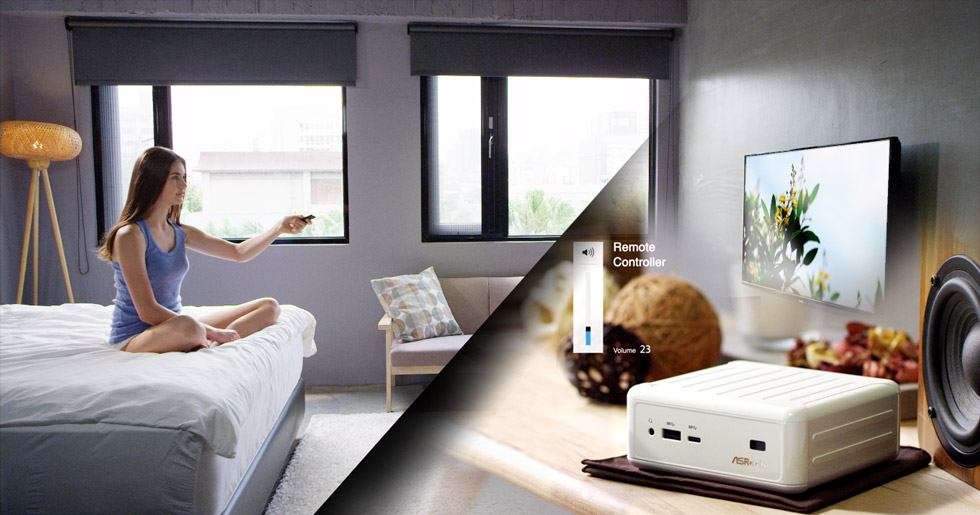

Remote Controller

A free bundled remote controller for Beebox.

Power Gear

Toggle between three operational modes (Eco, Normal and Sport) to maximize performance or conserve energy. Use Eco mode for saving power during torrent downloads or other light activities, normal mode for regular tasks such as web surfing or word processing, and then shift to Sport mode to take on heavy jobs such as gaming or 4K video playback.

Specifications

Full System (With OS)

Full System
(Without OS)

Barebone

CPU

IntelQuad-Core N3150 Processor (Up to 2.08 GHz)

Intel Dual-Core N3050 Processor
(Up to 2.16 GHz)

IntelN3000 Processor (Fanless Design)

OS

Windows 10 Home

Windows 10 32-bit / 10 64-bit / 8.1 64-bit / 7 64-bit compliant

Chipset

Intel N3150 / N3050 SoC

Intel N3150 / N3000 SoC

Memory

2GB DDR3L-1600MHz
(1x2GB)

4GB DDR3L-1600MHz
(2x2GB)

N/A

Supports DDR3L 1600MHz, 2 x SO-DIMM slots, Max. 16GB

HDD

Emmc

32GB Emmc

N/A

N/A

mSATA slot

Supports 1 x mSATA slot

128GB mSATA SSD

Supports 1 x mSATA slot

2.5"HDD

Supports 1 x 2.5" SATA HDD

LAN

Gigabit LAN

Wifi

802.11ac + BT 4.0

Audio

Realtek ALC283

Front I/O

1 x USB 3.0, 1 x USB 3.0 (Type C), 1 x IR, 1 x Audio-Out with MIC-In

Rear I/O

2 x HDMI, 1 x DP, 2 x USB 3.0, 1 x LAN, 1 x Kensington lock

Power Unit

36W/12V Adapter

Dimension

110mm (W) x 46mm (H) x 118.5mm (L)

Controller

Remote Controller

Volume (Liters)

0.6L

VESA

Bracket included, supports 75 x 75 and 100 x 100 mm

Other OS

Linux: Ubuntu 14.04.3 LTS / Ubuntu 15.04 / Ubuntu 15.10 / Fedora 23 / Zorin OS 10 / Arch Linux 2015.10.01 / clonezilla-live-20150915-wily-amd64 / Android-x86-4.4-r3 compliant
