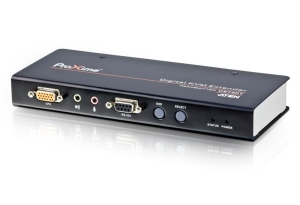

CE790T-AT-U | ATEN CE790T Digital USB Console Extender - With Audio Support (Transmitter)

Overview

The CE790T is transmitter half of the CE790 digital KVM extender set and is also sold separately to expand your capabilities.

The CE790T connects to a receiving unit CE790R over your network. An intuitive On Screen Display (OSD) simplifies set up and connections. The number of Receivers and Transmitters that can be connected is limited only by the number of free IP Addresses on your network More information on the CE790T can be found on the CE790 web page.

Package Contents

• 1 CE790T
• 1 USB KVM Cable
• 1 Power Adapters
• 1 Rack Mount Kit
• 1 Grounding Wires
• 1 User Manual
• 1 Quick Start Guide

Features

• Remotely access computers on your KVM installation via intranet
• Dual console operation - control your system from both the transmitter and receiver USB consoles
• OSD (On Screen Display) on both the transmitter and receiver units
• Supports GUI operation*
• No software required - an HTTP server is embedded in both units
• Built-in ASIC for greater reliability and compatibility
• USB Keyboard and USB Mouse Ports
• RS-232 serial ports** - allows you to connect to a serial terminal for configuration, or serial devices such as touchscreens and barcode scanners
• Audio enabled
• USB overcurrent detection and prevention
• High resolution video - up to 1920 x 1080
• Supports widescreen formats
• Ultra-High quality video mode
• Hot pluggable
• Rack mountable
• Firmware upgradable
• Auto-MDIX - automatically detects cable type

  Note:
  *The CE790 AP and GUI operation instructions can be downloaded from the ATEN website (www.aten.com).
  ** RS-232 serial ports support Tx/Rx/CTS/RTS signals only.

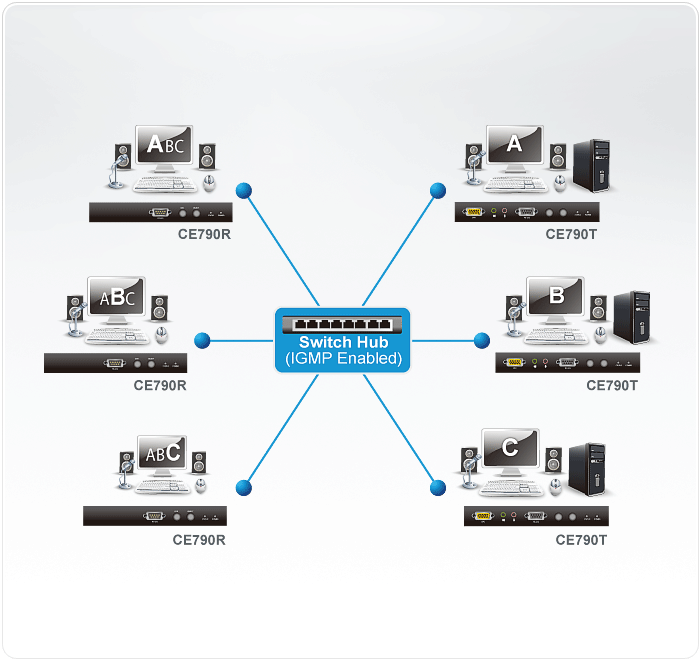

Diagram

Specifications
