8WD-C3UE01 | 8WARE USB Type-C to 3-Port USB3.0 Type-A Charging Hub w.

Details

This is a USB-C to USB 3.0X3 with Gigabit Ethernet and USB-C charging port hub. The three USB3.0 ports allow you to connect three USB devices or hubs to the host computer, the USB-C female port can charge for the host computer and the host computer can easily get access to the network through the Gigabit Ethernet port. It can work on Macbook or Google new Chromebook Pixel and other USB-C supported devices.

Operation

• Connect the USB-C male port of this product to computer
• Connect the 3 USB 3.0 outputs of this product to 3 USB 3.0 devices
• Connect Gigabit Ethernet port of this product to Ethernet Router with an Ethernet cable
• Automatically or manually set IP address of computer
• Connect the USB-C charging port, it can charge for the host computer and support this adapter to work simultaneously

Note: When connecting the USB-C male port of the adapter to Chromebook, the mouse to be connected to the USB 3.0 port will not work immediately, it will have seconds’ delay. This problem is caused by the incompatibility of Chromebook, not by the product itself.

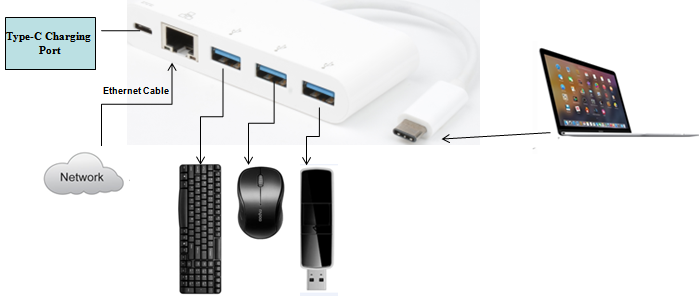

Connection Diagram

Features

• Support USB-C, USB3.0, Gigabit Ethernet port
• Support USB 3.0 super speed (5Gbps) transmission, downward compatible with USB2.0
• Support 10/100 /1000Mbps bandwidth
• Support twisted pair crossover detection and auto-correction
• USB-C female port supports to charge for the Macbook or Google new Chromebook Pixel and other USB-C supported and supply power for the product simultaneously
• Multiple USB-C interfaces support plug and play, hot swap
• Easy to use and carry

Specifications
