All stock codes associated to this product
ASUS90MB0GI0M0UAY0, ASUS-90MB0GI0-M0UAY0
Overview

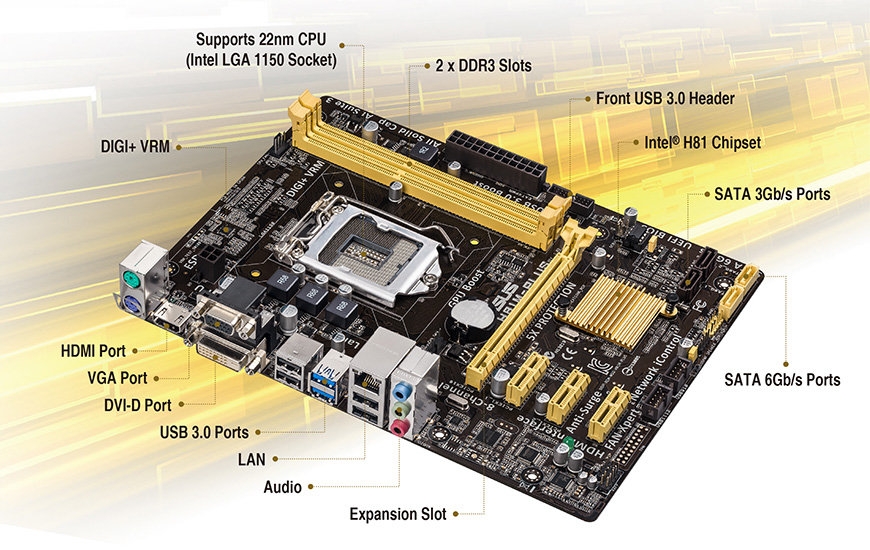

Micro-ATX H81 features new high-endurance 5X Protection and 4 USB 3.0
support with superfast USB 3.0 Boost technology
- ASUS 5X Protection - All-round protection provides the best quality,
reliability, and durability
- USB 3.0 Boost (UASP Support) - 170% faster transfer speeds than
traditional USB 3.0
- HDMI & DVI Outputs - High-definition Visual Enjoyment
- New UEFI BIOS – Friendlier, easier, and more intuitive with helpful info
added
- Network iControl - Real-time network bandwidth management
ASUS 5X Protection
All-round protection provides the best quality, reliability, and
durability
ASUS motherboards guard your PC with 5X Protection. We use quality components
like DIGI+ VRM digital power design for precise CPU power on demand, ESD units
tested to strict standards that eliminate electrostatic interference, and
resettable fuses around DRAM slots to prevent overcurrent and short-circuit
damage. We also use corrosion-resistant back I/O shields, all examples of ASUS
providing the best possible reliability and durability.

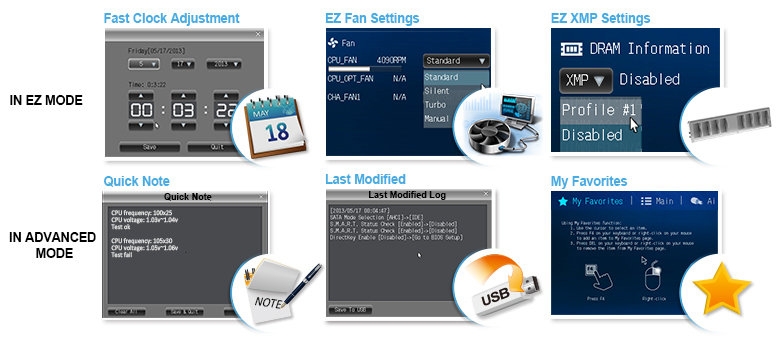

New UEFI BIOS
New UEFI BIOS – friendlier and more intuitive
Exclusive EZ Mode adds useful info to become even easier
Media-renowned UEFI BIOS from ASUS provides the smoothest mouse-controlled
graphical BIOS, and now features more intuitive functions to quickly take you to
favorite BIOS pages and frequently-accessed settings through custom shortcuts.
You can even write quick notes in-BIOS for future reference, view an activity
log of setting changes and modifications, and rename SATA ports. EZ Mode has a
whole new look, upgraded with extra-friendly capabilities like detailed fan
controls, XMP profile settings, SATA information, and fast clock adjustment.
Together, these perfect your BIOS experience.
Performance Optimization

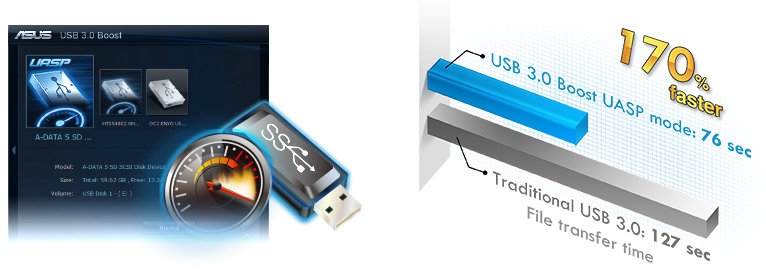

USB 3.0 Boost (UASP Support)
170% faster transfer speeds than traditional USB 3.0
ASUS USB 3.0 Boost technology supports UASP (USB Attached SCSI Protocol) in
Windows 8. With USB 3.0 Boost technology, a USB device's transmission speed is
significantly increased up to 170%, adding to already fast USB 3.0 performance.
ASUS software automatically accelerates data rates for compatible USB 3.0
peripherals without any user interaction.
- World’s 1st USB 3.0 UASP support – instantly 170% faster.
- Complete USB 3.0 solution – performance boost under Turbo Mode or UASP
Mode for most USB devices.
- Simple plug and boost – auto detection design ensures best
performance.
EZ DIY
Q-Slot
Effortless PCI Express component removal Press the Q-Slot clip lightly, and
graphics cards just pop out. The large winged clip is easy to reach so you don’t
have to struggle with installing or removing even the biggest graphics
cards.
Windows 8 Exclusive Features

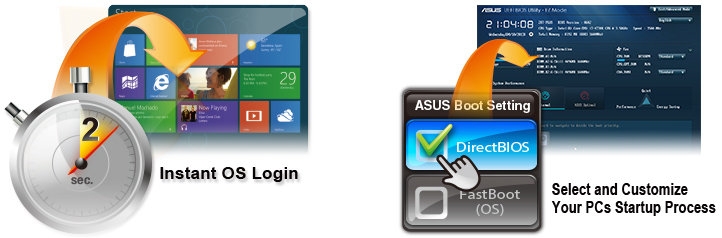

ASUS Boot Setting Multiple startup options
Thanks to ASUS Windows 8 hardware optimization, ASUS Boot Setting provides
better flexibility in customizing your PC’s startup process. You can shorten
system boot-up time to 2-seconds* for a smoother user experience under Windows
8, and even previous versions of Windows. Also, you can enter the BIOS directly
with one click through a user-friendly interface, and quickly select your
preferred system boot up method: either get to the OS in seconds or opt for
regular boot up. Whatever your choice, settings are saved and persistent, with
no need to choose every time you power on.
Additional Features

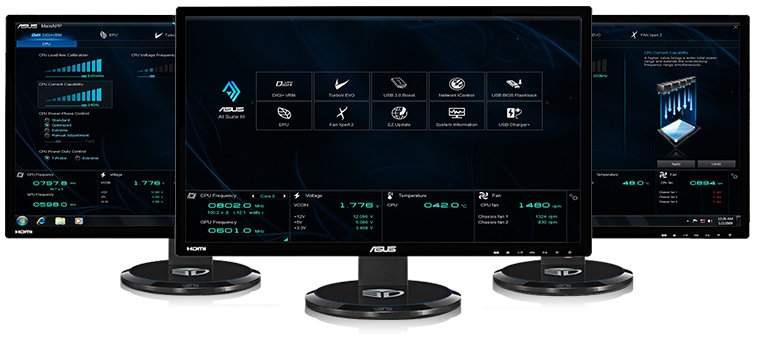

AI Suite 3 One-stop access to innovative ASUS features
ASUS AI Suite 3 offers a brand new user experience through a clearer and more
attractive interface with support for larger monitors. It consolidates all
exclusive ASUS features into one simple-to-use package, allowing you to
supervise overclocking, energy consumption, fan speeds, voltages and more. This
all-in-one app offers diverse and easy to use functionality, with no need to
switch back and forth between different utilities.
Multi-GPU/Monitors
4K Ultra HD ready Discover future visual experiences
Following up on popular 1080p full HD, 4K Ultra HD is the next big thing, and
you’re ready for the upgrade thanks to integrated graphics that natively support
up to 4096 x 2160 via HDMI or DisplayPort. That’s four times the pixel count of
1080p (1920 x 1080), offering incredible visual clarity, detail, and
realism.
CPU and Chipset Features
Intel® LGA1150 4th Generation Core™ i7/Core™ i5/Core™
i3/Pentium®/Celeron® Processors Ready
This motherboard supports Intel® 4th generation Core™
i7/i5/i3/Pentium®/Celeron® processors in the LGA1150 package, with iGPU, memory
and PCI Express controllers integrated to support onboard graphics output with
dedicated chipsets, 2-channel (2 DIMM) DDR3 memory and 16 PCI Express lanes.
This provides great graphics performance. Intel® 4th generation Core™
i7/i5/i3/Pentium®/Celeron® processors are among the most powerful and energy
efficient CPUs in the world.
Intel H81 Express
Chipset
The Intel H81 Express chipset is a single-chipset design that supports socket
LGA1150 4th generation Intel Core i7/i5/i3/Pentium/Celeron processors. It
provides improved performance by utilizing serial point-to-point links, allowing
increased bandwidth and stability. It natively supports up to two USB 3.0 ports
for up to ten times faster transfer rates than USB 2.0. Moreover, the Intel H81
Express chipset also supports iGPU functionality, letting users enjoy the latest
Intel integrated graphics performance.
GreenASUS
Motherboards are EU Energy-related Products (ErP) ready, which requires
products meet high efficiency standards with regards to energy consumption. This
is in line with the ASUS vision of creating environmentally-friendly and
energy-efficient products through design and innovation that reduce the carbon
footprint of products and thus mitigate ecological impact.
Specifications
|
CPU
|
|
|
Intel Socket 1150 for
4th Generation Core i7/Core i5/Core i3/Pentium/Celeron
Processors |
|
Supports Intel 22 nm
CPU |
|
Supports Intel Turbo
Boost Technology 2.0 |
|
* The Intel Turbo Boost
Technology 2.0 support depends on the CPU types. |
|
* Refer
to www.asus.com for CPU support list |
|
Chipset
|
|
|
Intel
H81 |
|
Memory
|
|
|
2 x DIMM, Max. 16GB,
DDR3 1600/1333/1066 MHz Non-ECC, Un-buffered
Memory |
|
Dual Channel Memory
Architecture |
|
Supports Intel Extreme
Memory Profile (XMP) |
|
* Hyper DIMM support is
subject to the physical characteristics of individual
CPUs. |
|
* Refer
to www.asus.com for the Memory QVL (Qualified Vendors
Lists). |
|
* Due to Intel chipset
limitation, DDR3 1600 MHz and higher memory modules on XMP mode will run
at the maximum transfer rate of DDR3 1600 Mhz. |
|
Graphic
|
|
|
Integrated Graphics
Processor |
|
Multi-VGA output
support : HDMI/DVI/RGB ports |
|
- Supports HDMI with
max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60
Hz |
|
- Supports DVI with
max. resolution 1920 x 1200 @ 60 Hz |
|
- Supports RGB with
max. resolution 1920 x 1200 @ 60 Hz |
|
Maximum shared memory
of 1024 MB |
|
Supports Intel InTru
3D, Quick Sync Video, Clear Video HD Technology,
Insider |
|
Dual independent
displays support with HDMI/DVI and D-Sub |
|
Expansion Slots
|
|
|
1 x PCIe
x16 |
|
3 x PCIe 2.0
x1 |
|
Storage
|
|
|
Intel H81 chipset
: |
|
2 x SATA 6Gb/s port(s),
yellow |
|
2 x SATA 3Gb/s port(s),
dark brown |
|
Supports Intel Rapid
Start Technology, Intel Smart Connect Technology *1 |
|
LAN
|
|
|
Realtek 8111G, 1 x
Gigabit LAN Controller(s) |
|
Audio
|
|
|
Realtek ALC887
8-Channel High Definition Audio CODEC *2 |
|
- Supports :
Jack-detection, Multi-streaming, Front Panel
Jack-retasking |
|
USB Ports
|
|
|
ASMedia ASM1042
controller : |
|
2 x USB 3.0/2.0 port(s)
(2 at back panel, blue) |
|
Intel H81 chipset
: |
|
2 x USB 3.0/2.0 port(s)
(2 at mid-board) |
|
Intel H81 chipset
: |
|
8 x USB 2.0 port(s) (4
at back panel, black, 4 at mid-board) |
|
Special Features
|
|
ASUS 5X Protection
: |
|
- ASUS DIGI+ VRM - 3
Phase digital power design |
|
- ASUS Enhanced DRAM
Overcurrent Protection - Short circuit damage
prevention |
|
- ASUS ESD Guards -
Enhanced ESD protection |
|
- ASUS High-Quality
5K-Hour Solid Capacitors - 2.5x long lifespan with excellent
durability |
|
- ASUS Stainless Steel
Back I/O - 3x more durable corrosion-resistant
coating |
|
ASUS EPU
: |
|
-
EPU |
|
ASUS Exclusive
Features : |
|
- GPU
Boost |
|
- AI Suite
3 |
|
- Ai
Charger+ |
|
-
Anti-Surge |
|
- ASUS UEFI BIOS EZ
Mode featuring friendly graphics user interface |
|
- Network
iControl |
|
- USB 3.0
Boost |
|
- Disk
Unlocker |
|
ASUS Quiet Thermal
Solution : |
|
- Stylish Fanless
Design Heat-sink solution |
|
- ASUS Fan
Xpert |
|
ASUS EZ DIY
: |
|
- ASUS CrashFree BIOS
3 |
|
- ASUS EZ Flash
2 |
|
ASUS Q-Design
: |
|
- ASUS
Q-Slot |
|
Operating System
Support |
|
|
Windows
8 |
|
Windows
7 |
|
Back I/O Ports
|
|
|
1 x PS/2 keyboard
(purple) |
|
1 x PS/2 mouse
(green) |
|
1 x
DVI |
|
1 x
D-Sub |
|
1 x
HDMI |
|
1 x LAN (RJ45)
port(s) |
|
2 x USB 3.0
(blue) |
|
4 x USB
2.0 |
|
3 x Audio
jack(s) |
|
Internal I/O Ports
|
|
|
1 x USB 3.0
connector(s) support(s) additional 2 USB 3.0
port(s) |
|
2 x USB 2.0
connector(s) support(s) additional 4 USB 2.0 port(s) |
|
2 x SATA 6Gb/s
connector(s) |
|
2 x SATA 3Gb/s
connector(s) |
|
1 x CPU Fan
connector(s) (1 x 4 -pin) |
|
1 x Chassis Fan
connector(s) (1 x 4 -pin) |
|
1 x S/PDIF out
header(s) |
|
1 x 24-pin EATX Power
connector(s) |
|
1 x 4-pin ATX 12V Power
connector(s) |
|
1 x Front panel
connector(s) |
|
1 x Front panel audio
connector(s) (AAFP) |
|
1 x Internal speaker
connector(s) |
|
1 x Clear CMOS
jumper(s) |
|
Accessories
|
|
|
User's
manual |
|
I/O
Shield |
|
2 x SATA 6Gb/s
cable(s) |
|
BIOS
|
|
|
64 Mb Flash ROM, UEFI
AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language
BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, My Favorites, Quick Note,
Last Modified log, F12 PrintScreen, F3 Shortcut functions and ASUS DRAM
SPD (Serial Presence Detect) memory information |
|
Manageability
|
|
|
WfM 2.0, DMI 2.0, WOL
by PME, PXE |
|
Support Disc
|
|
|
Drivers |
|
ASUS
Utilities |
|
EZ
Update |
|
Anti-Virus Software
(OEM Version) |
|
Form Factor
|
|
|
uATX Form
Factor |
|
9.6 inch x 7.2 inch (
24.4 cm x 18.3 cm ) |
|
Note
|
|
|
*1-1:Due to the
limitation of the Intel H81chipset, Intel Rapid Start Technology can be
configured only from the BIOS Setup program. |
|
*1-2:These functions
will work depending on the CPU installed. |
|
*2:Use a chassis with
HD audio module in the front panel to support an 8-channel audio
output. |
