Overview
2.0: An All New Generation
Introducing the H-Frame 2.0 which has been developed in honor of In Wins 30th
anniversary. Luminous LED lights embellish the edges of the outer aluminium
blades. The radiant, innovative layered aluminium structure refines In Wins
signature look.
Next Level of Craftsmanship

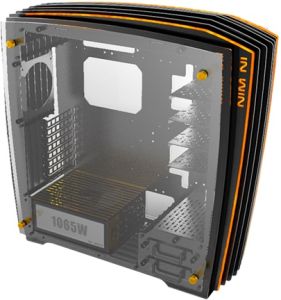

The H-Frame 2.0 is a sleeker, more polished H-Frame with an open-frame
concept composed of nine aluminium stacked sheets and tempered glass side
panels, creating a vibrant and astounding visual display.
Lucent Lighting Effects
The H-Frame 2.0 possess a six-level lighting effect. The brightness can be
adjusted from 0% to 100% for various scenarios. Moreover, the thoughtful
lighting system indicates the on/off state by a flickering effect.
USB 3.1 Type-C: Expedited Transmission
Installing the USB 3.1 Type-C interface means no more struggle to find the
correct side to connect, both sides work, and provides high-speed transfer
rates. The transfer rate can even speed up to 10Gps, which provides users with a
more enjoyable experience.
In Wins
30th Anniversary Limited Edition Bundle |
In honor of In Wins 30th anniversary, In Win introduces their first limited
edition Case+ Power Supply. Each H-Frame 2.0 includes SII-1065W power supply,
which is made exclusively for H-Frame 2.0. This perfectly matched hardware
grants owners with an In Win exclusive bundle, which is marked with a serial
number of its production.
More Flexible Installation
A total of six 3.5/2.5 multipurpose HDD trays allows convenient
installation.Furthermore, the additional water cooling tray can hold different
size water cooling pumps or reservoir for extra thermal solution
alternatives.
User Friendly Design
3.5/2.5 SATA HDD EZ-Swap Module with an HDD tray handle for easier
installation and removal.
Upgraded Expandability
The H-Frame 2.0 supports high-end graphics cards up to 330mm, and up to an
E-ATX motherboard. The spacious interior is able to accommodate a top radiator
up to 360mm for excellent airflow.
2.0: Whole New Generation
Limited Edition with Unique In Win 30th Anniversary Commemorative
Thumbscrews.
The Vanguard Aesthetics
Vivid and attention-grabbing color scheme reflects your strong and unique
personality. Choose your own color and enjoy the most exclusive visual
pleasure.
Specifications
|
Model |
H-Frame
2.0 |
|
Color |
White/Blue LED
Light |
|
Case
Type |
Full
Tower |
|
Case
Material |
Aluminium, Tempered
Glass |
|
M/B
Compatibility |
12" x 13" E-ATX, ATX,
Micro-ATX |
|
Expansion
Slots |
PCI-E x
8 |
|
High-end Graphics Card
Compatible |
|
- Length: 330mm Maximum
(With HDD Tray) |
|
440mm Maximum (Without
HDD Tray) |
|
Front
Ports |
3 x USB
3.0 |
|
1 x USB 3.1
Type-C |
|
HD
Audio |
|
Internal Drive
Bays |
6 x
2.5"/3.5" |
|
- Supports SATA HDD
EZ-Swap Module x 2 |
|
Thermal Solution
Compatibility |
1 x 120mm Rear
Fan |
|
3 x 120mm Top
Fan |
|
1 x 360mm Top
Radiator |
|
CPU Heatsink
Compatible |
|
- CPU die surface to
side panel height: 185mm Maximum |
|
Power Supply
Compatibility |
SII-1065W Internal PSU
Included |
|
PSII: ATX12V and
EPS12V |
|
- Length: 210mm
Maximum |
|
Product
Dimension |
597mm x 271mm x
582mm |
|
(H x W x
D) |
23.5" x 10.6" x
22.9" |
|
Product
Dimension |
597mm x 298mm x
582mm |
|
(H x W x
D) |
23.5" x 11.7" x
22.9" |
|
with screw
height |
|
|
Package
Dimension |
365mm x 712mm x
834mm |
|
(H x W x
D) |
14.4" x 28" x
32.8" |
|
Net
Weight |
19.12kg/42lb |
|
Gross
Weight |
25.52kg/56lb |
