Deepcool DN500 500w Power Supply Unit - 80 Plus
24Pin Main Power(1), PCIE 6+2pin(2), SATA 5 Pin(5), Peripheral 4 Pin(3)

No Longer Available

Part Number:

412061

(?) Brand:

Deepcool

Manuf No:

GP-BZ-DN500
GPBZDN500

Shipping Weight:

1 KG (Includes product packaging)
Estimate Shipping

Date Added:

20/9/2016

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

GPBZDN500, GP-BZ-DN500

Overview

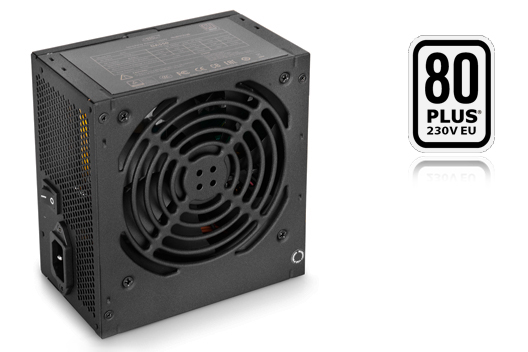

DN 500 is certified with 80 PLUS 230V EU certified with 85% electrical efficiency enabling lower heat generation and lower operating cost. It is designed with less than 1w of consumption during off-mode, which meet the standard of ErP (Effective Radiated Power). Outstanding and stable performance makes it one of the ideal choices for multi-purpose usage.

Silent and High Performance Fan

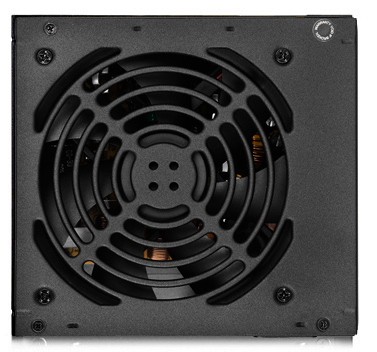

120mm silent fan with PWM function to provide incredible performance-noise ratio.

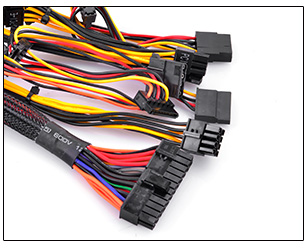

Longer Cable Design

The longer cable design supports cable management perfectly.

Features

Compliant Intel ATX12V v 2.31
The integrated Active PFC+ PWM Combo Controller will increase the efficiency of exchange and make PFC higher than 99%
80 PLUS 230V EU certified up to 85% efficiency
120mm silent fan with PWM function
The longer cable design supports cable management perfectly
Double-Layer EMI Filter protects from electromagnetic interference & restrains noise
Intelligentized eco-friendly chipset, consume < 0.3W in its off-mode, compliant Erp standard
CircuitShield OVP, UVP, SCP, OPP
Supports Multi-Way SLI / CrossFire + Multi-Core CPUs

Specifications

Model	DN500
Type	ATX 12V V2.31

Dimension	15014086mm (W x L x H)
Output Capacity	500W
Input Voltage	230V
Input Current	4A
Input Frequency Range	47~63Hz
Fan Size	120mm
PFC	Active PFC (>0.99)
Power Good Signal	100-500ms
Hold Up Time	>16ms

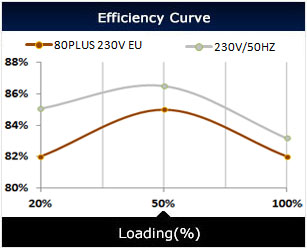

Efficiency	85% Under Typical Load
Protection	OVP/UVP/SCP/OPP
Operation Temperature	0~40C
Regulatory	CE/CB/EAC/CCC
MTBF	100,000 Hours
