Hardware encoder specification |
Magnum H.264 video encoder |
|
AC-3 recording from AC-3 source |
|
Recording datarate: from 1 to 13.5 Mbits/sec VBR or CBR
(maximum rate using VBR: aprroximately 21
Mbits/sec) |
Recording formats |
1080p60p (recorded as 1080p30) |
|
720p60 |
|
1080i60 |
|
480p60 |
|
480i60 |
|
1080p50p (recorded as 1080p25) |
|
1080i50 |
|
720p50 |
|
576p50 |
|
576i50 |
|
NTSC or PAL video formats
supported |
|
|
System requirements |
Laptop or desktop PC with 3.0 GHz single core or 2.0 GHz
multi-core processor |
|
Microsoft Windows 10, 8, 7 or Vista (32 or 64-bit), or
Windows XP Service Pack 3 |
|
TV
set with HDMI input (optional) |
|
1
GB memory recommended |
|
Graphics card with 256 MB memory |
|
Sound card |
|
220
MB free hard disk space |
|
CD-ROM drive (for software
installation) |
|
|
Bundled software applications |
Hauppauge Capture for video recording, trim and streaming with Hauppauge's
StreamEez application |
|
Hauppauge WinTV v7 application, with support for the
Hauppauge IR blaster |

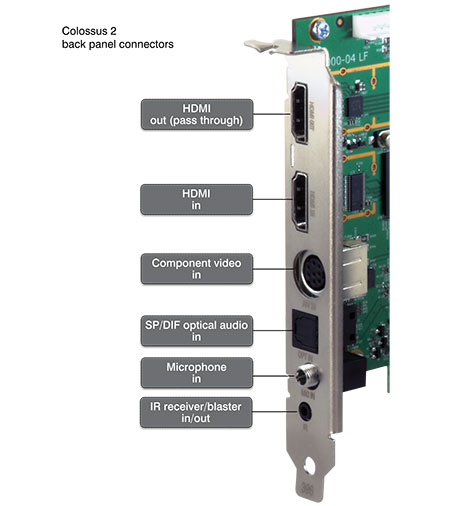

Input and outputs |
HDMI input (Note: for use with un-encrypted HDMI video
sources) |
|
A/V
cable input adapter with: |
|
Component video input |
|
Left/ Right RCA audio input |
|
Optical audio input |
|
IR
receiver/blaster connector (IR blaster cable
suppli |
Included |

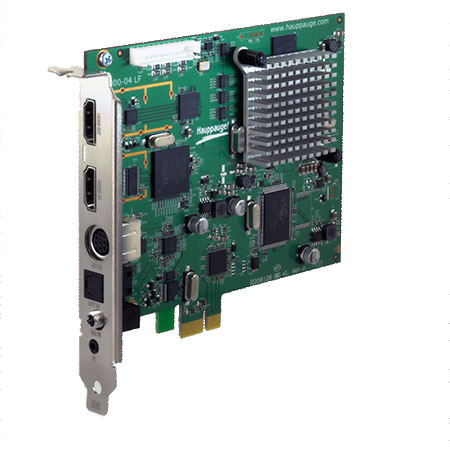

Colossus 2 PCI Express full height
board |
|
Component video A/V cable adapter (part number
6021258A ) |
|
HDMI cable - 1 meter |
|
Hauppauge IR blaster cable |
|
Installation software on CD: WinTV and Hauppauge Capture
applications |
|
Quick Installation
Guide |
