All stock codes associated to this product
112561020G, 11256-10-20G, VCSRX4704G10NITROOC, VCS-RX4704G10NITROOC, 4895106280885
Sapphire 11256-10-20G NITRO+ Radeon™ RX 470 4G D5 OC
Gaming Video Card
Overview
THE NEW SAPPHIRE NITRO SERIES IS AN EVOLUTION OF OUR MARKET-LEADING,
AWARD-WINNING, HIGH-END GRAPHICS CARD TECHNOLOGY – NOW MADE ACCESSIBLE FOR THE
PC GAMER.
Designed from the ground up, weve crammed in everything you need (and left
out everything you don't) to maximize the gaming experience for your budget. The
SAPPHIRE NITRO series boasts a range of features previously reserved for
high-end cards, including long-life capacitors and award-winning Black Diamond
Chokes, as well as our award-winning cooling solutions. Its sleek, elegant
contours have been designed to suit any build. And the latest graphics
architecture from AMD ensures fast, reliable gaming, performance tuned for any
level of gamer.
So whatever kind of gamer you are, the SAPPHIRE NITRO series offers you the
maximum gaming experience for your budget.
Virtual Super Resolution
Virtual Super Resolution (VSR) is an AMD feature that is game and engine
agnostic to simulate Super-Sampling Anti-Aliasing (SSAA) in games that do not
have native SSAA support. VSR can also be used in conjunction with other native
in-game anti-aliasing for even more game graphics-setting control. VSR allows
games to render at higher resolutions (up to 4K; see the Virtual Super
Resolution Support table, below) and then rescales them down to a lower native
display resolution. Using this, you can get quality that rivals up to 4K, even
on a 1080p display while playing your favorite games.
HDR Ready
High Dynamic Range (HDR) is a state-of-the-art technology for gamers and
cinephiles that care deeply about the display quality of their TV or monitor.
Modeled after the acuity of human vision, HDR vastly expands the range of colors
and contrast ratios that can be shown by compatible displays. HDR-ready games
and movies played on an HDR display appear strikingly sharp, colorful, and
vivid, with enhanced contrast and sophisticated nuance compared to even the most
stunning SDR content.
VR Friendly
The SAPPHIRE NITRO Gaming Series cards come with Dual HDMI ports,
specifically designed to work with VR. By having two HDMI ports, you can have
both an HD monitor and cutting-edge VR headset running at the same time.
The ports are HDMI 2.0b, the latest update, with an 18Gbps bandwidth, up to
32 audio channels, and is able to support 4K 50/60 resolutions like 2160P,
whilst remaining entirely backwards compatible with older HDMI
specifications.
AMD XConnect™ Technology
Plug in and game on with AMD XConnect technology.
Now it’s easier than ever to connect and use an external Radeon™ graphics
card. With AMD XConnect™ technology, external GPU enclosures configured with
Radeon™ Graphics can easily connect and disconnect to a compatible ultrathin
notebook or 2-in 1 over Thunderbolt™ 3 at any time, just like a USB flash
drive—a first for external GPUs!
AMD Freesync technology
No stuttering. No tearing. Just gaming.
AMD FreeSync™ technology allows a compatible graphics card and monitor to
dynamically change frame rates for the optimum display quality without tearing
or stuay.
Industry-Standard Displayport
Freesync uses industry-standard displayport Adaptive-Sync Eliminates screen
tearing without all the usual lag and latency
-
Synchronizes the refresh rate of a
compatible monitor to the frame rate of your content, however much it
varies
-
Monitor partners are validating with
drivers from AMD now
DirectX® 12
DirectX® 12 is a new, “console-like” graphics API from Microsoft® that
empowers game developers with more direct and obvious control of PC hardware.
This direct or “explicit” control better exposes the hardware resources of AMD
Radeon™ GPUs to yield higher hardware throughput and, ultimately, more
performance for users. To put it simply: much more efficient hardware through
smarter software! At the discretion of a game developer, this superior
efficiency can be spent on higher framerates, lower latency (VR), lower power
consumption, better image quality, or some calculated balance of all four. In
any scenario, gamers stand to benefit greatly from choosing AMD hardware to run
their favorite DirectX® 12 game.

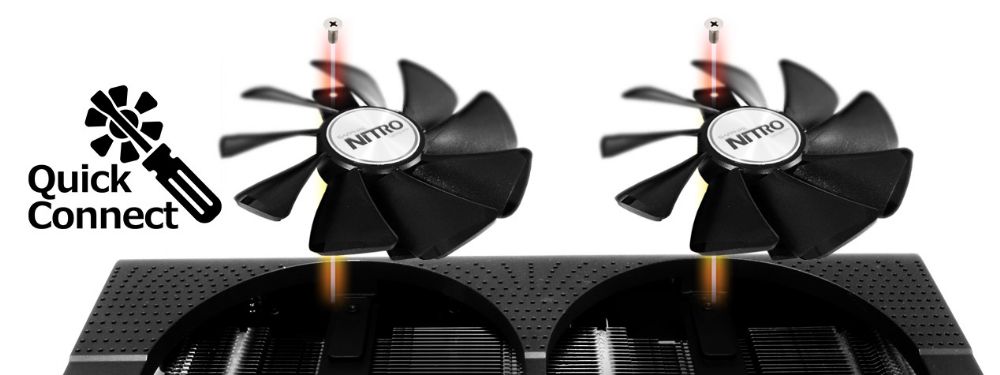

NITRO Quick Connect
If theres a fan problem, you dont have to return the entire card SAPPHIRE or
our channel partners will send out a replacement fan directly to you! All the
SAPPHIRE NITRO + Radeon RX480 and RX470 fans use our Quick Connect system. That
means theyre easy to remove, clean and replace, with just one screw holding them
securely in place.
AMD Eyefinity Technology
Multidisplay technology for gaming, productivity and entertainment.
We are taking you beyond the boundaries of traditional PC displays. AMD
Eyefinity technology expands the traditional limits of desktop computing by
multiplying your screen area. With multiple monitors, games become more
immersive, workstations become more useful and you become more productive (an
average of 42% more productive according to one study).
Take your PC games to the next level of reality and immersion. Most modern
games look great on three screens, and only AMD Radeon graphics offer you the
ability to play across five screens for an eye-popping gaming experience. Other
combinations and configurations with up to six screens work too.1 Create your
dream display.
AMD Crossfire™ - Harness the power of multiple GPUs
AMD CrossFire™ technology is the ultimate multi-GPU performance gaming
platform. Unlocking game-dominating power, AMD CrossFire™ harnesses the power of
two or more discrete graphics cards working in parallel to dramatically improve
gaming performance.1 AMD CrossFire™ technology ready graphics cards fit
practically every budget. With the flexibility to combine two, three or four
GPUs, AMD CrossFire™ technology is the perfect solution for those who demand
extreme performance.
Frame Rate Target Control
Frame Rate Target Control (FRTC) enables users to set a target maximum frame
rate when playing an application in full screen mode; the benefit being that
FRTC can reduce GPU power consumption (great for games running at frame rates
much higher than the display refresh rate) and therefore reduce heat generation
and fan speeds/noise on the graphics card.
Frame Rate Target Control caps performance not only in 3D rendered in-game
scenes, but also in splash screens, loading screens and menus, where frame rates
can often run needlessly into the hundreds of FPS. Users might wish to set a
very high cap just to limit wasteful FPS like that seen in menus and such, while
still taking advantage of the responsiveness given by FPS well beyond 60.

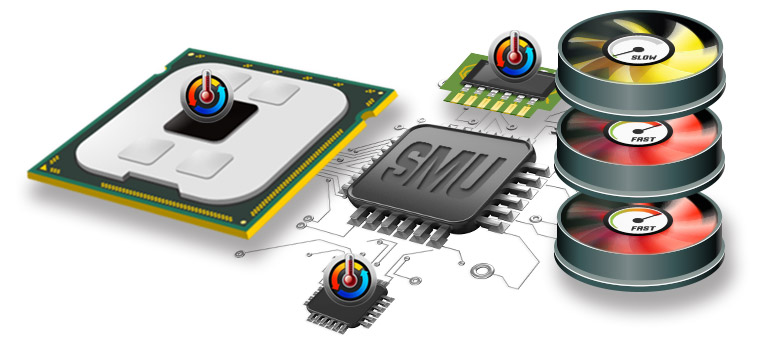

Intelligent Fan Control
For high-end graphic card users, we always like to get the best performance,
running GPU cooler ,quieter and longer life.
Traditional graphic cards cooling solutions mainly focus on keeping GPU at
lower operation temperature while balance acoustic for end users to enjoy a
quieter gaming experience. At Sapphire our experienced thermal experts always
fine tuning the fan control table for each graphic card we designs.
With more and more transistors and integration of High bandwidth memory
(HBM), we introduce an even more intelligent scheme to monitor and dynamically
adjust the fan speeds. This so called IFC (Intelligent Fan Control) not only
limited to cooling GPU cores but also inputs from HBM , Power control logics
(like MOSFETS) . With integrated SMU, there is a smart algorithm to received
temperature reading from multiple inputs, i.e., multiple GPUs power cores,
external Bridge control logics, voltage regulator MOSFETs. It will also take the
current application loading, environment temperature into consideration.
The benefit of this new intelligent fan control methodology is , users can
always expect the best performance, quieter environment based on whole graphics
systems without need to worry about the manual fan table adjustments.
Specifications
GPU |
2048 Stream
Processors |
14 nm
FinFET |
4th Graphics Core
Next (GCN) |
1140 MHz Engine
Clock |
1236 MHz Boost
Engine Clock |
Interface |
PCI-Express
3.0 |
Memory |
256 bit Memory
Bus |
GDDR5 Memory
Type |
1750 MHz,7000Mbps
Effective Memory Clock |
4 GB
Size |
BIOS
Support |
UEFI
BIOS |
Displays |
Maximum 5
Outputs |
Output |
1 x
DVI-D |
2 x HDMI
2.0b |
2 x DisplayPort
1.4 |
Resolution |
3840x2160 (120Hz)
Pixel DisplayPort Resolution |
2560x1600 (60Hz)
Pixel Dual Link DVI Resolution |
38402160p (60 Hz) HDMI
Resolution |
API |
OpenGL
4.5 |
OpenCL
2.0 |
DirectX
12 |
Shader Model
5.0 |
Feature |
AMD
CrossFire |
FreeSync
Technology |
AMD
Eyefinity |
Quad HD Display (4K*2K
Support) |
AMD Virtual Super
Resolution(VSR) |
AMD TrueAudio Next
Technology |
Dolby TrueHD and DTS-HD
Master Audio Support |
AMD Xconnect
ready |
DirectX 12
Optimized |
HDR
Ready |
Frame Rate Target
Control |
NITRO Quick Connect
system |
Dual-X
Cooling |
Intelligent Fan Control
III |
Cooling |
Dual-X
fans |
Form
Factor |
2 Part Slot
Occupied |
230(L)X 126(W)X 41 (H)
Dimension /mm |
Power
Consumption |
<175W |
OS |
Windows 10 Windows 7 |
System
Requirement |
500 Watt Power Supply
(Suggestion) |
1 x 8-pin AUX Power
Connector |
CD-ROM or DVD-ROM drive
for installing software |
PCI Express 2.0 or
higher version based PC is required with one X16 lane graphics slot
available on the motherboard in order for the card to be compatible
with. |
-
Specifications provided here are for
guidance only. Please check with your regional distributor or dealer for
latest specifications.
-
Colors of PCB or other components may
differ from those illustrated.
-
SAPPHIRE reserves the right to update or
revise specifications without prior notice.
-
All trademarks and logos are acknowledged
as the property of their respective holders.
