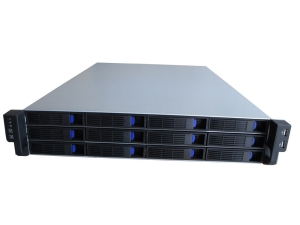

TGC TGC-2312 Rackmount Server Chassis Case - No PSU
  • Support EEB, ATX, mATX, mITX, 480mm, 3.5" Bays(12), 80mm Fan, USB2.0(2)

IMG 1 of 1
No Longer Available
Part Number:
417094
(?) Brand:
TGC
Manuf No:
TGC-2312
TGC2312
Shipping Weight:
16 KG (Includes product packaging)
Estimate Shipping
Date Added:
6/2/2017
Details Files Finance Images & Video
All stock codes associated to this product
TGC2312, TGC-2312, TGC-2312 , 9341756015339

TGC TGC-2312 12 Bay Mini-sas( or SATA/SAS) Hot-swap Server Chassis



Features

  • 12x 3.5" hot-swappable SATA II, III /SAS 6G drive bay
  • Three internal SFF-8087 Mini SAS connectors support up to twelve 3.5" or 2.5" SATA II, III/SAS 6G hard disk drives;
  • Backplanes are horizontal mounted for for better ventilation
  • 12 x 3.5 " hot-swappable drive bays;
  • LED indicators for power and activity on each HDD tray
  • 2 x USB2.0 front ports
  • Support EEB (12"x13"), CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6"), Mini ITX (6.7" X 6.7") motherboard
  • 7 x low profile PCI expansion slots.(Also available with 3 x full height PCI slots)
  • Redundant power connectors
  • RoHS Compliant
  • Smooth border prevent lacerating your skin

Specifications

Drive Bay

12 x 3.5" hot-swappable 3.5" SATA II, III/SAS 6G drive bays

Cooling Fan

4 x 80mm Hot Swap middle fans wall

Switch

Power ON/OFF x 1, System reset x 1

Indicator

Power ON/OFF x 1, HDD x 1, NETWORK X 2

Connector

Three internal SFF-8087 Mini SAS connectors, four 4-pin molex redundant power connectors.  2 x USB2.0 in front Panel

PCI

7 x low profile PCI expansion slots.  (Also available with 3 x full height PCI slots)

Motherboard Compatibility

Support EEB (12"x13"), CEB(12"x10.5"), ATX (12"x9.6"), Micro ATX (9.6" x 9.6"), Mini ITX (6.7" X 6.7")

Power Supply Options

Standard 2U power supply (W x H 3.94 x 2.76 inch) or 1U redundant power supply (W x H=3.98inch x 3.31inch)

Dimensions ( W x D x H )

19" x 25.5" x 3.5" (483mm x 650mm x 88mm)

Packing

Cardboard boxe with polystyrene formed Packing

Weight (without hard drive)

13.6 kg/30 lb (NET) 15.4 kg/34 lb (GROSS)

Environment Temperature

0/40 C, 32/104 F (Operating) -20/60 C, -4/140 F (Non-Operating)

Relative Humidity

5% to 95%,non-condensing
