Overview
Pacific PR22 Reservoir/Pump Combo
Thermaltake introduces the Pacific PR Series pump with tube reservoir set for
the ultimate in custom PC watercooling configurations. Featuring exceptional
performance and unrivalled reliability, the PR22 is manufactured from high
quality POM and PMMA material to provide a crystal clear, high performance, and
durable solution. By giving users ideal mounting, fitting and flow, the Pacific
PR Series is the right choice for PC enthusiasts. Choose from: 120ml, 200ml, or
300ml to make your system a showcase for all to see with the Thermaltake Pacific
PR Series.
Tt LCS Certified is the hallmark that ensures first-class performance from
the best features and fitment. A certification exclusive to Thermaltake, it sets
the benchmark for all true LCS chassis and is applied only to products that meet
our stringent design standards for delivering what hardcore enthusiasts demand.
The Tt LCS certification is a way for Thermaltake to designate to all power
users the chassis which have been tested for best compatibility with extreme
liquid cooling configurations.
Sturdy and Durable Design
Featuring 6mm thick of the pipe wall, Pacific PR Series can sustain the
maximum pressure up to 99 PSI (Pounds per square inch). Also, users can easily
open out the top cap, cleaning the reservoir thoroughly.

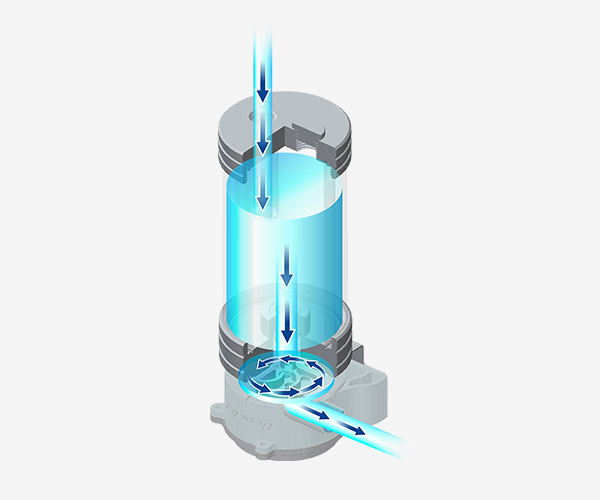

*PR15 water flow diagram
Driven Performance
Made in Taiwan, maximum discharge up to 500L/hr for efficient cooling of your

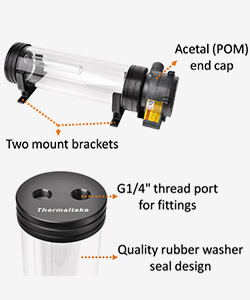

components. Top cap supports rubber washers for a proper seal, including two
predrilled G1/4” ports for fittings.

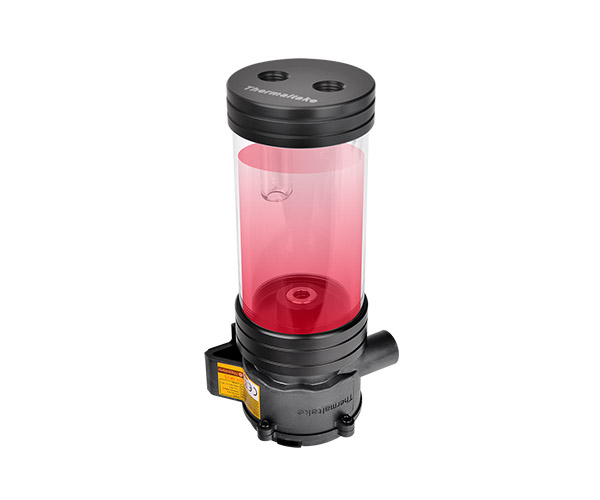

*PR15
Heat-resistant Acrylic Tank
The Pacific PR Series tube reservoirs are all made of reliable, light
weighted POM and PMMA construction, which is crystal clear and highly durable.
High quality acrylic (PMMA) tube maximum working temperature: 131F (55C).
Easy and Flexible Application
Along with two brackets connected to both ends, Pacific PR Series is solid
hold inside the chassis and allows enthusiasts to build up superior water
cooling system from an aesthetic standpoint and incorporate externally-modular
upgrades for their chassis. The Pacific PR Series can be installed either
horizontally or vertically, making the chassis out of the ordinary!
Cautions:
Thermaltake recommends the following steps to be taken after completing your
water loop setup:
- It is strongly recommended to use market proven pre-mix coolant, such as
Thermaltake Coolant 1000. It offers great performance while preventing the
entire cooling system copper, brass, nickel, aluminum, and steel from
corrosion.
- Fill the reservoir with coolant and cycle the power on and off several
times while the pump pushing the coolant into the loop.
- DO NOT let the pump run dry, when there is no liquid entering the pump
turn off your power immediately
- Fill the reservoir to the top as it will prevent air from going into the
pump
- If necessary tilt the system slightly from side to side to bleed the air
out of the loop.
- Place some paper towels under fittings and joining points to test for
leaks.
- Run the loop with the fill port open for about 24 hours to completely
bleed the air out of the loop
- Before starting, flush out your system correctly to prevent any coolant or
unwanted particles sticking to your tubes, radiators and other cooling
components.
- Coolant might fade over time.
Specifications
P/N |
CL-W081-PL00BL-A |
Dimension |
81 (L) x 66.4 (W) x
260.4 (H) |
Material |
POM+
PMMA |
Capacity |
300
ml |
Maximum
head |
5.9 feet
(1.8m) |
Maximum Flow
Rate |
500
L/h |
Maximum
pressure |
20
PSI |
Input
Voltage |
12
V |
Connector |
3
Pin |
Screw
Thread |
G
1/4 |

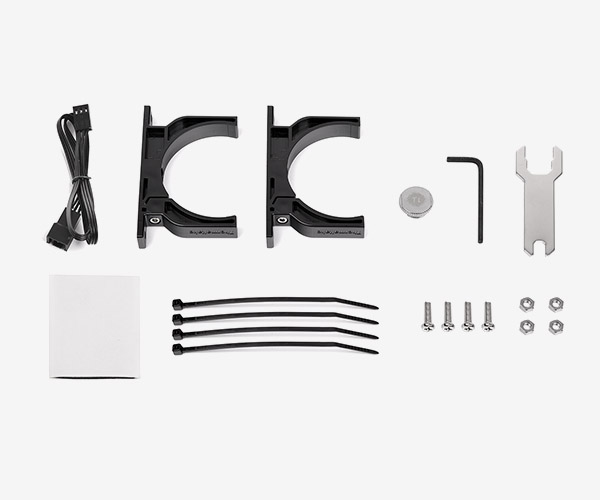

Parts |
1. Stopper *1 (G 1/4
) |
2. Bracket
*2 |
