All stock codes associated to this product
TVS4738G, TVS-473-8G

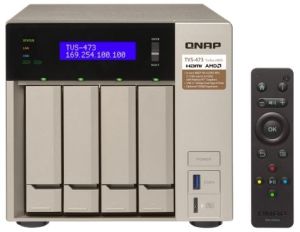

Qnap Systems TVS-473-8G 4-Bay Turbo NAS System - Diskless
The TVS-473 is powered by an AMD embedded Accelerated Processing Unit (APU)
that incorporates exceptional CPU and AMD Radeon R7 Graphics performance,
delivering a high-performance and energy-efficient NAS solution. Built with a
state-of-the-art metal design and topped off with a stylish gold finish, the
TVS-473 features a powerful quad-core CPU, AES-NI hardware encryption engine, up
to 64GB RAM, USB 3.1 (10Gbps) and 10GbE expandability with exceptional
performance. Coupled with the unique USB QuickAccess, HDMI 4K output, and 4K
H.264 video decoding and encoding acceleration, the TVS-473 running on the new
64-bit QTS 4.3 operating system provides an optimum audiovisual experience and
well-rounded private cloud system.
Features
- NAS and iSCSI-SAN (IP-SAN) unified storage solution
- Integrated Radeon R7 GPU for 4K video storage and playback
- 10GbE-expandable, highly-efficient storage solution for virtualization and
HD video editing &ring
- USB QuickAccess port for accessing files without needing a network
connection
- M.2 SSD cache and Qtier technology jointly realize optimized storage
efficiency
- Supports virtualization, centralized storage, backup, sharing, and
disaster recovery
- QmailAgent for centralized email management; Qsirch full-text searching
tool; Qcontactz for centrally storing and managing contacts
- Use the NAS as a PC with exclusive QvPC Technology and 4K display
- The new QVR Pro surveillance system allows dedicated storage space for
surveillance data in the NAS, and leverages the advantages of storage
manageability from the QTS.
- Build a personal karaoke system with high-quality audio output using the
OceanKTV app
AMD R-Series quad-core APU, up to 64GB RAM, and hardware-accelerated
encryption with AES-NI
The TVS-473 is equipped with a next-gen AMD R-Series RX-421BD quad-core 2.1
GHz APU (burst up to 3.4 GHz), dual channel 8GB/16GB/64GB DDR4 RAM (upgradable
to 64GB), and four Gigabit LAN ports for lightning-fast multi-tasking with low
power consumption and is capable of delivering up to 1,035 MB/s throughput with
a 10GbE configuration. The TVS-473s hardware-accelerated encryption engine with
AES-NI provides unmatched encryption performance in its class (up to 502 MB/s
with AES 256- bit full NAS volume encryption) to boost system performance,
security, and ensuring the safety of sensitive business data stored in the
NAS.
Tested in QNAP Labs. Figures may vary by environment.
Test environment:
NAS:
OS:
QTS 4.3
Volume type: RAID 5; 4 x Intel SSD DC S3500 240G
Client
PC:
Intel
Core i7-4770 CPU @ 3.40 GHz CPU; WD 1TB WD10EZEX; LAN-10G2T-X550 10GbE NIC;
Microsoft Windows 10 64bit; 10GB file transfer
Top-class hardware engineering
The sturdy and feature-packed hardware of the TVS-473 bolsters overall system
performance. Coupled with the flexible and expandable architecture, the TVS-473
can fulfill diversified application needs.
1. M.2 SSD LED
Shows M.2 SSD status and data access.
2. Infrared receiver
Works with the bundled remote control (RM-IR004) to play media files.
3. LCD display
Provides quick system information for easier system management.
4. 2 x PCIe Gen.3 expansion slots
PCIe Gen.3 x4; supports a dual-port 10GbE LAN card and USB 3.1 expansion
card.
5. USB QuickAccess port
Plug-and-use; connect to a computer via USB to complete the first-time
installation and access files on the NAS without requiring network connectivity.
6. USB one-touch-copy
Press the Copy button to instantly back up data from external drives to the
NAS, or alternatively to back up data from the NAS to external drives. c
7. Up to 64GB DDR4 RAM
Supports four DDR4 SODIMM memory modules; comes preinstalled with
8GB/16GB/64GB RAM.
8. 2 x built-in M.2 SSD slots
Supports SATA 6Gb/s M.2 SSD with 2260 and 2280 form factors; allows the
greatest flexibility in tiered storage configuration and enables cache
acceleration.
Note: M.2 SSD operations can easily generate excessive heat. It is
recommended to install a heatsink (from QNAP or a third-party provider) on the
M.2 SSD.
9. Compartmentalized smart cooling
Separately detects the CPU and hard drive temperatures to dynamically control
fan speed for quieter operations.
10. AMD R-Series Embedded x86 APU
Quad-core RX-421BD 2.1 GHz SoC (35W), 3.4 GHz boost; supports Radeon R7 GPU,
4K video decoding and encoding acceleration, and AES-NI hardware-accelerated
encryption engine.
11. 2 x USB 3.1 Type-A ports
Up to 10Gb/s data transfer; backward compatible with USB 3.0 and USB 2.0
devices.
12. 2 x 3.5 mm microphone jacks
Supports two dynamic microphones.
13. 2 x 4K HDMI outputs
HDMI 1.4b for displaying up to 3840 x 2160; supports duplicated and extended
desktop options.
14. 3.5 mm audio jack
Connect speakers or headphones for direct audio output from the NAS.
15. 4 x Gigabit Ethernet ports
Allows optimized network traffic distribution for diverse applications.
16. Built-in speaker
Supports direct audio output and provides verbal system warnings.
Flexible 10GbE network expandability
The TVS-473 features two PCIe (Gen.3 x4) slots, one preinstalled with a USB
3.1 Type-A dual-port card, and the other allows for installing an optional
dual-port 10GbE (10GBASE-T or SFP+) network card. This allows for greater
flexibility in setting up 10GbE environments for high-performance virtualization
and backup tasks.
Tested in QNAP Labs. Figures may vary by environment.
Test environment:
NAS:
OS:
QTS 4.3
Volume
type: RAID 5; 4 x Intel SSD DC S3500 240G
Client PC:
Intel
Core i7-4770 CPU @ 3.40 GHz CPU; WD 1TB WD10EZEX; LAN-10G2T-X550 10GbE NIC;
Microsoft Windows 10 64bit; 10GB file transfer
USB 3.1 (10Gbps) connectivity
USB 3.1 provides faster maximum speeds of 10Gb/s double that of USB 3.0 to
greatly boost data transfer performance. The TVS-473 comes with a USB 3.1 Type-A
dual-port card for connecting up to two USB devices, allowing compatibility with
newer, faster USB devices for transferring large-sized media files.
Note: USB 3.1 performance may vary depending on hardware/software limitations
and usage environment.
M.2 SSD & SSD cache with Qtier optimization
The TVS-473 supports 2.5 SSD for caching to increase IOPS performance, and
provides higher transfer speeds and reliability with additional two M.2 SATA
6Gb/s SSDs. Using an SSD cache boosts overall system performance, and is perfect
for improving the overall workflow of random IOPS demanding applications such as
virtualization. The TVS-473 combines M.2 SSD, SATA SSD and high-capacity HDD in
one box to effectively realize tiered storage for exceptional application
performance and lower TCO of storage at the same time.
Easy installation and direct access to files with USB
QuickAccess
With its innovative USB QuickAccess port, the TVS-473 eliminates the
complications of first-time NAS installation and provides easy direct access to
files stored on the TVS-473 - all without needing network connectivity. Simply
use a USB 3.0 A Micro B cable or a USB 2.0 A Micro B cable** to connect the
TVS-473 to a PC or Mac device, and useQfinder Pro*to configure
it. It is just that easy. You can also assign access rights to users for
different folders to prevent unauthorized access to important files.
* Qfinder Pro and USB QuickAccess support Windows 8.0 (and newer) and Mac OS
X 10.7(and newer). Other versions may requiredriver
installation.
**
A USB cable is not included.
QTS 4.3 The most intelligent and intuitive NAS operating
system
The TVS-473 natively supports the new 64-bit QTS 4.3 operating system. QTS
4.3 provides more intelligent features to enhance management efficiency,
including the intelligent Qtier 2.0 that learns from NAS usage, analyzes system
performance and peak usage hours to process auto tiering; Qfiling that helps
categorize files and performs based on schedules to make organizing files
automatic and efficient, and much more. With its intuitive and simplified user
interface, QTS features an intelligent desktop allows you to find desired
functions quickly, create desktop shortcuts or group shortcuts, monitor
important system information on a real-time basis, and open multiple application
windows to run multiple tasks concurrently, bringing greater working efficiency.
QTS breaks the barriers of devices, platforms, and geography to bring optimized
cloud experiences and incorporates advanced features.
QRM+: Centralized management solution for networked computing
devices
QRM+ is QNAP's Centralized Management Solution, designed for IT teams, for
networked computing devices. It provides a single-point solution to discover,
map, monitor and manage all of the critical computing devices (including
servers, PCs, and thin clients) in your network, and facilitates device
discovery with the graphical topology diagram. QRM+ supports IPMI 2.0, provides
remote KVM (Keyboard, Video, Mouse) for certain IPMI devices, and supports
tracking every action using KVM recording and playback. Simply install QRMAgent
on your Windows and Linux devices and you will see their system status on the
QRM+ management interface. With centralized management using QRM+ on the NAS, IT
infrastructure and device security is enhanced while troubleshooting and network
resource performance analysis is greatly simplified.
Superior 4K video transcoding and display
The TVS-473 features AMD 3rd Gen GCN architecture with breakthrough GPU
performance to support 4K H.264 video decoding* and stunning 4K UHD display. It
delivers superior real-time 4K and 1080p video transcoding** to convert videos
to universal formats that can be smoothly played on PCs, mobile devices and
Smart TVs***. With offline transcoding, even when you can only connect using a
low-speed Internet connection, you can still enjoy smooth video playback via
File Station, Video Station, and the Qfile mobile app by selecting a
pre-rendered lower resolution video. The TVS-473 also allows you to set a
dedicated folder for automatic video transcoding.
*Supported video formats depend on the hardware and software specifications
of the devices.
**At
least 1GB shared graphics memory is required for 4K or multiple 1080p H.264
video transcoding and playback. You can configure this setting in "Control
Panel" > "Hardware" > "Shared graphics memory"
***
Playback capability and quality may vary due to factors including the original
file formats/quality, hardware and software limitations, and output devices.
4K HDMI output with a free remote control for an excellent
audiovisual experience
The TVS-473 offers dual HDMI outputs that support duplicated or extended
desktop configurations. You can connect the TVS-473 to a TV or A/V receiver and
use the media player in HybridDesk Station (HD Station) with the bundled QNAP
remote control to enjoy rich media content and 4K videos with the best
audiovisual experience. With the help of the smart remote control learning
function, you can pair up to three TV or stereo IR remote controls and program
your frequently-used buttons and functions. You can also turn your mobile
devices into remote controls by installing the Qremote app. You can customize
the actions of individual buttons of your QNAP remote control using QButton.
From playing music, to viewing surveillance feeds in Surveillance Station, to
shutting down or restarting the NAS, everyday and common tasks can be just a
button press away with QButton.
Note: Linux Station must be installed from the App Center.
Cross-platform file sharing, centralized data storage
The TVS-473 supports SMB/CIFS, NFS, and AFP protocols for file sharing across
Windows, Mac, Linux/UNIX networks. Data, logs and ISO images of CDs and DVDs can
be centrally stored on the TVS-473. The Windows AD and LDAP services enable
system administrators to configure user permissions by using an existing Windows
AD server, LDAP server or built-in LDAP service. The TVS-473 supports SAMBA v4
and can act as a Windows domain controller to manage privilege settings.
Well-rounded backup solutions to secure data
The TVS-473 is a comprehensive centralized backup center for multiple files.
You can use QNAP NetBak Replicator to back up files on Windows (including
Outlook email archiving) to the TVS-473, or use Time Machine for Mac data
backup. A wide range of third-party backup software such as Acronis True Image,
Symantec Backup Exec and Commvault are also supported to facilitate system
backup and restoration.
Disaster recovery solutions bring peace of mind
Hybrid Backup Sync consolidates backup, restoration and synchronization
functions (using RTRR, rsync, FTP, CIFS/SMB) into a single app for easily
transferring data to local, remote and cloud storage spaces as a comprehensive
data storage and disaster recovery plan. Supported cloud services include Amazon
Glacier, Azure Storage, Google Cloud Storage, Google Drive, Microsoft OneDrive
for Business, Dropbox, Amazon Drive, Yandex Disk, Box, hubiC and Amazon
S3/OpenStack Swift/WebDAV compatible services. Hybrid Backup Sync supports
multi-version backup, flexible job scheduling, file compression to save storage
space, and more.
Comprehensive security options
In open network environments, business data may be exposed in a potential
hack. The TVS-473 provides numerous security options, such as encrypted access,
IP blocking, 2-step verification, and more. IT administrators can also control
the access rights of each user to different folders, preventing unauthorized
access to important files. The TVS-473 supports AES 256-bit encryption,
preventing sensitive business data from unauthorized access and breach even if
the hard drives or the entire system were stolen.
Qsirch - A smarter, faster way to search
To complement the TVS-473 as a huge data center, searchability is one of the
key areas for increasing the value of stored data, and Qsirch is the best tool
to realize optimized search capabilities for vast data storage and archiving.
Qsirch is a full-text search tool for quick file searching, supporting thumbnail
previews and even remembering your search history allowing you to quickly
navigate to files you've previously searched for. Qsirch Helper, a browser
extension for Chrome and Filefox, allows you to search for files on your NAS
when you use Google Search. Qsirch is a huge productivity boost that greatly
reduces the time spent looking for files on the NAS, allowing you to focus on
other tasks.
QmailAgent - A mailroom center for your private cloud
QmailAgent is an online email client that helps you manage multiple email
accounts, allowing you to access all of your emails and to easily switch between
different accounts. It provides complete functionality for composing, reading
and organizing emails. You can even attach files, photos and documents from the
TVS-473 when composing emails. iOS and Android users can use the QmailClient app
to quickly check multiple email accounts with mobile devices, and to browse
&d emails using the QmailAgent on their TVS-473. You can use QmailAgent
together with Qsirch, which supports searching through the .eml files stored on
the TVS-473, to make searching through and managing massive amounts of emails
much easier.
Qcontactz - Easily manage huge amounts of contacts on the NAS
Qcontactz with the high-capacity TVS-473 helps you centrally store and manage
contact information for colleagues, business partners, families, and friends.
Other features include: importing/exporting CSV or vCARD 3.0 files, automatic
identification of frequently-used contacts, encryption for
sensitive/confidential contact information, smart search function, and more.
Qcontactz offers snapshot backups that enable you to revert to a previous
version of your contacts list according to your needs. A companion app for
Android phones and iPhone is also available for easy access to contacts.
Qcontactz can also be used with QmailAgent to create the perfect email workflow
environment.
Storage for comprehensive virtualization applications
The TVS-473 is a comprehensive iSCSI/IP-SAN storage solution, and supports
VMware, Citrix, Microsoft Hyper-V and Windows Server 2012 R2, benefiting
flexible deployment and management in virtualization environments. The TVS-473
supports VMware VAAI and Microsoft ODX to increase performance by offloading
server loading for ESXi server and Hyper-V respectively, and supports QNAP
vSphere Client plug-in and QNAP SMI-S provider with enhanced operational
efficiency and management in virtualization applications.
Storage for hosting virtual machines and containerized
applications
Virtualization Station allows you to host virtual machines (VM) on the
TVS-473 and access them via a web browser or VNC. Virtualization Station
supports multiple operating systems, fast VM creation, VM backup &
restoration, VM import/export, snapshot, and Device Management for centrally
managing VMs. Virtualization Station allows the TVS-473, VMs and containers to
share the same LAN port. No longer constrained by physical network performance,
high-speed virtual switches greatly increases data transfer between VMs,
containers and NAS through the internal interface. The TVS-473 also features
Container Station, which integrates LXC and Docker lightweight virtualization
technologies. You can operate multiple isolated Linux systems on the TVS-473 as
well as download apps from the built-in Docker Hub Registry. Containers Station
also supports the QIoT Containers platform that helps quickly structure your IoT
environment and deployment on your private IoT cloud.
Restore files with Volume & Snapshot
QTS Storage Manager adds an easy-to-use web-based snapshot tool for you to
easily backup and restore data on the TVS-473 back to any point of time in case
you lose any important data. You can take snapshots for volumes and LUN
(block-based LUN* and file-based LUN), efficiently replicate volume/LUN
snapshots via Snapshot Replica to remote servers by copying only the changes
made, and quickly clone a volume /LUN snapshot as a local volume without
interrupting the current system operation. You can even set up the system to
automatically take a snapshot of the volume before backup via RTRR/rsync, even
if files are open.
* Up to 256 snapshots per volume or LUN, and a maximum 1,024 snapshots per
NAS. It is recommended to use block-based LUN snapshots.
Comprehensive surveillance solution providing 24/7
security
Surveillance Station is a professional network surveillance Video Management
System (VMS) that offers a user-friendly management interface, over 3,000
compatible IP camera models, and expandable IP camera channel licenses. It
supports real-time monitoring, video &io recording and playback with a
wide range of customizable settings. You can also install the Vmobile app on
your iOS or Android devices to manage the monitored channels anytime and
anywhere, or install the Vcam mobile app to turn your device into a network
camera to instantly record to your TVS-473. The TVS-473 offers 4 free IP camera
channels and you can expand up to 72 channels by purchasing additional
licenses.
Whole new QVR Pro surveillance solution
The TVS-473 also supports QVR Pro (Beta) that integrates QNAPs professional
QVR system into the QTS operating system. You can not only arrange a dedicated,
independent storage space for surveillance data on the NAS, but also leverage
the advantages of scalability and storage manageability from QTS. QVR Pro
features a flexible monitoring interface that allows you to adjust the
proportion and monitor view of IP cameras, supports an upgraded timeline feature
that provides instant video search and quick view identification in live
monitoring mode, and allows for monitoring views and playing back images without
switching between different windows. Additional functions like batch adding and
editing cameras, and searching for cameras across different LANs further save
the cost and time in deploying and maintaining a complete surveillance
system.
Powerful transcoding to streamline Plex media experience
With its large potential storage capacity, the TVS-473 is also an ideal
multimedia center. Store all of your movies, photos, and music on the TVS-473
and use Plex Media Server to enjoy a seamless multimedia experience across all
of your devices including laptops, mobiles, consoles and smart TV. The TVS-473
also supports dual-channel 4K to 1080p hardware decoding and real-time
transcoding to convert videos to universal file formats for smooth playback on
multiple devices. With the TVS-473, you can enjoy instant access to your videos
at any time.
* Playback quality may vary due to factors including playback software, file
formats, system usage, and available bandwidth.
Enjoy your exclusive karaoke system with OceanKTV
OceanKTV is the first NAS-based karaoke application and allows you to create
a quality karaoke experience at home or in the office. The TVS-473 offers
high-capacity storage for potentially accommodating up to thousands of 1080p
karaoke songs, and now supports YouTube video streaming. The TVS-473 comes with
two 3.5 mm microphone jacks and can transmit audio to your amplifier using HDMI
or the 3.5 mm line out port. The experience can be managed using the OceanKTV
app in QTS or by using the OceanKTV mobile app on your phone or tablet. More
than a NAS, the TVS-473 is a karaoke machine for singing entertainment.
NAS as a Wireless AP
WirelessAP Station coupled with a compatible PCI Express wireless adapter*
turns the TVS-473 into a dedicated Wireless AP, making it the ideal solution if
you have multiple devices that need internet connectivity but have no available
access points. As those devices directly communicate with the TVS-473 through
the WirelessAP Station, it not only allows for the network resources of the NAS
to be shared with greater efficiency, but it also prevents possible slowdown
that may occur when the broadband router is busy.
*For compatible PCI Express wireless adapters, please check the Compatibility
List.
Install-on-demand apps to extend NAS functionality
The built-in App Center provides various install-on-demand apps developed by
QNAP and third-party developers, including tools for backup/sync, business,
content management, communications, download, entertainment, and much more. It
is also a centralized location for managing &ating installed apps. You
can freely install apps as needed to expand your TVS-473s functionality.
Flexibly expand storage capacity
The TVS-473 offers a high performance yet affordable storage solution to
fulfill the needs of business in archiving rapidly-growing data &ge
files. Up to two QNAP expansion enclosures can be connected to expand the
TVS-473s raw storage capacity on demand, making the TVS-473 an ideal file center
for storage-intensive business applications such as video surveillance, data
archiving, TV broadcast storage, and more.
The maximum number of drives available by connecting QNAP expansion
enclosures:
| QNAP NAS Model |
Expansion Enclosure |
No. of Expansion
Enclosures |
Total HDD No. (NAS +
Enclosure) |
| TVS-473 |
REXP-1000
Pro* |
4 |
44 |
| 3 |
34 |
| 2 |
24 |
| 1 |
14 |
| UX-800P |
2 |
20 |
| 1 |
12 |
| UX-500P |
2 |
14 |
| 1 |
9 |
User-friendly vocal alerts and music playback
The TVS-473 features a built-in speaker that supports Chinese and English
vocal alerts for important system messages. You can also use Music Station or
File Station (coupled with Qfile and Qmusic mobile apps) to directly play music
on the NAS.
Specifications
|
Hardware |
|
|
CPU |
AMD R-Series RX-421BD quad-core 2.1 GHz processor, burst up to 3.4
GHz |
|
|
|
Hardware Encryption Acceleration |
Yes, AES-NI |
|
|
|
Graphics |
Embedded Radeon R7 Graphics Processor |
|
|
|
System Memory |
|
|
TVS-473-8G |
8GB DDR4 (2 x 4GB) |
|
|
|
Maximum Memory |
64GB |
|
|
|
Memory Slot |
4 x SODIMM DDR4 |
|
(For dual- or quad-DIMM configurations, you must use a pair of
identical DDR4 modules.) |
|
|
|
Flash Memory |
512MB DOM |
|
|
|
Hard Disk Drive |
4 x 3.5"/2.5" SATA 6Gb/s HDDs/SSDs |
|
|
|
M.2 SSD Slot |
2 x 2280/2260 SATA 6Gb/s |
|
|
|
Note: |
|
1. The M.2 SSD is not included as standard. |
|
2. M.2 SSD operations can easily generate excessive heat. It is
recommended to install a heatsink (fromQNAPor a third-party provider) on
the M.2 SSD. |
|
|
|
LAN Port |
4 x Gigabit RJ45 LAN ports |
|
|
|
PCIe Slot |
2 x PCIe Gen 3 (x4), one slot is pre-installed with a dual-port USB 3.1
Type-A card |
|
|
|
LCD Panel |
Mono-LCD display with backlight, Enter and Select buttons for
configuration |
|
|
|
USB |
2 x USB 3.1 port, and 4 x USB 3.0 Type-A port |
|
|
|
HDMI |
2, up to 3840 x 2160 @ 30Hz resolution |
|
|
|
LED Indicator |
Status/Power, USB, LAN, Drive 1-4, M.2 SSD 1-2 |
|
|
|
Button |
Power/Status, USB one-touch-backup, Reset |
|
|
|
IR Receiver |
Yes, support QNAP RM-IR004 and MCE-compatible
remotes |
|
|
|
Others |
Kensington security slot, system maintenance port |
|
|
|
Form Factor |
Tower |
|
|
|
Dimension (H x W x D) |
188.2 x 199.3 x 279.6 mm |
|
7.41 x 7.85 x 11.01 inch |
|
Weight |
4.9 kg / 10.80 lbs |
|
|
|
Operating Temperature |
0 ~ 40°C |
|
|
|
Relative Humidity |
5~95% RH non-condensing, wet bulb: 27°C |
|
|
|
Power |
ATX 250W, 100-240V AC, 50-60Hz, 3.5A |
|
|
|
Power Consumption(W) |
|
|
HDD standby |
33.24W |
|
In operation |
56.23W |
|
(with 4 x 2TB HDDs installed) |
|
|
|
Fan |
1 x 12cm |
|
|
|
Software |
|
|
Operating System |
QTS 4.3 (embedded Linux) |
|
|
|
Supported Client OS |
1. Windows 7, Windows 8, Windows 10, Windows Server 2003/2008
R2/2012/2012R2 |
|
2. Apple Mac OS X |
|
3. Linux &X |
|
|
|
Supported Browsers |
1. Microsoft Internet Explorer 10+ |
|
2. Google Chrome |
|
3. Apple Safari 7+ |
|
4. Mozilla Firefox |
|
|
|
Multilingual Support |
1. Chinese (Traditional &plified), Czech, Danish, Dutch,
English, Finnish, French, German, Greek, Hungarian, Italian, Japanese,
Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian,
Spanish, Swedish, Thai, Turkish |
|
|
|
File System |
1. Internal Hard Drive: EXT4 |
|
2. External Hard Drive: EXT3, EXT4, NTFS, FAT32,
HFS+ |
|
|
|
Networking |
1. TCP/IP (IPv4 &6: Dual
Stack)1 |
|
2. Quad Gigabit NICs with jumbo frame (failover, multi-IP settings,
port trunking/NIC teaming) |
|
3. Service binding based on network interfaces |
|
4. Squid Proxy server |
|
5. Proxy client |
|
6. DHCP client, DHCP server |
|
7. Protocols: CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP,
HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, and SMSC |
|
8. UPnP &jour Discovery |
|
9. USB Wi-Fi Adapter Support |
|
|
|
Network &tual Switch |
1. TCP/IP (IPv4 &6: Dual
Stack)1 |
|
2. Quad Gigabit NICs with jumbo frame (failover, multi-IP settings,
port trunking/NIC teaming) |
|
3. DHCP client, DHCP server |
|
4. USB Wi-Fi Adapter Support |
|
5. Virtual Switch |
|
Supports editing the Virtual Switches in Virtualization
station. |
|
Supports combining virtual machines and containers to the same Virtual
Switch. |
|
Supports NAT (Network Address Translation). |
|
Supports STP (Spanning Tree Protocol). |
|
Supports Thunderbolt Residential Gateway. |
|
6. USB QuickAccess |
|
7. WirelessAP |
|
|
|
Security |
1. Network access protection with auto-blocking: SSH, Telnet, HTTP(S),
FTP, CIFS/SMB, AFP |
|
2. CIFS host access control for shared folders |
|
3. FIPS 140-2 validated AES 256-bit volume-based and shared folder data
encryption2 |
|
4. AES 256-bit external drive
encryption2 |
|
5. Importable SSL certificates. Supports certificates from Let's
Encrypt. |
|
6. Instant alerts via email, SMS, beep, push service, and LCD
panel3 |
|
7. 2-step verification |
|
|
|
Storage Management |
1. Storage Space Utilization monitoring |
|
2. QNAP flexible Volume/LUN with thin provisioning and space
reclaim3 |
|
3. Disk volume types: |
|
4-Bay: RAID 0,1, 5, 6, 10, 5 + hot spare, JBOD,
single |
|
6- &ay: RAID 0,1, 5, 6, 10, + hot spare, JBOD
single |
|
4. Supports storage pools3 |
|
5. Supports Qtier Technology (Auto Tiering, 8GB System RAM and SSD
drives are required)3 |
|
6. Supports snapshots (4GB System RAM
required)3 |
|
- Supports Volume/LUN snapshot |
|
- Snapshot manager |
|
- Snapshot clone |
|
- Snapshot vault |
|
- Snapshot replica |
|
- Snapshot agent for Microsoft Windows and VMware
vSphere |
|
7. Online volume expansion |
|
8. Online storage pool expansion |
|
9. Online RAID capacity expansion and online RAID level
migration |
|
10. SMART data migration |
|
11. Storage expansion via QNAP UX-500P/UX-800P expansion
units3 |
|
12. JBOD enclosure roaming |
|
13. SSD read-only/read-write cache |
|
14. Bad block scan and hard drive S.M.A.R.T. |
|
15. Bad block recovery &D recovery |
|
16. Bitmap support |
|
|
|
Powerful All-in-one server |
|
|
File Server |
1. File sharing across Windows, Mac, and
Linux/UNIX |
|
2. Microsoft networking |
|
3. Windows ACL |
|
4. Advanced folder permissions for CIFS/SMB, AFP,
FTP |
|
5. Shared folder aggregation (CIFS/SMB) |
|
|
|
FTP Server |
1. FTP over SSL/TLS (Explicit) |
|
2. FXP support |
|
|
|
File Station |
1. Supports mounting cloud drives (such as Google Drive, Dropbox,
Microsoft OneDrive, Microsoft OneDrive for Business, HiDrive, Amazon Cloud
Drive, Yandex Disk and Box). |
|
2. Supports mounting remote shared folders through FTP, WebDAV or
Microsoft networking (SMB/CIFS) |
|
3. Supports opening documents via Office Online, Google Docs or Chrome
Extension (Edit Office files in Google Docs, Sheets, and
Slides) |
|
4. Supports ISO Mounting (Up to 256 ISO Files) |
|
5. Supports sharing download links and upload
links |
|
6. Drag-n-drop Files via Chrome and Firefox
Browsers |
|
7. Photo, music, and video preview and playback with
hardware-accelerated transcoding3 |
|
8. File Compression (ZIP or 7z) |
|
9. Creation of and sending download links for sharing public files with
expiration date and password protection |
|
10. Supports displaying subtitles (*.SRT, UTF-8
format) |
|
- Video seeking support for video playback during on-the-fly
transcoding3 |
|
- Supports slideshow playback in media viewer |
|
11. Mobile App: Qfile for file browsing and
management |
|
|
|
Qfiling (Beta) |
1. Supports auto filing. |
|
* Supported models: x86-based QNAP NAS with at least 2GB
RAM. |
|
|
|
Transcode Management |
1. Transcode video files to 240p, 360p, 480p, 720p and 1080p
resolution |
|
2. Automatic video transcoding for watched folders |
|
3. Hardware accelerated transcoding
support3 |
|
4. Embed subtitles into videos for background
transcoding |
|
|
|
Backup Station |
1. Remote replication server (over rsync) |
|
2. Real-time remote replication (RTRR) to another QNAP NAS, FTP or
CIFS/SMB server |
|
3. Works as both RTRR server &ent with bandwidth
control |
|
4. Real-time &eduled backup |
|
5. Backup versioning for RTRR |
|
6. Snapshot support for RTRR/Rsync |
|
7. Encryption, compression, file filter, and transfer rate
limitation |
|
8. Desktop backup with QNAP NetBak Replicator for
Windows |
|
9. Apple Time Machine backup support |
|
10. Data backup to multiple external storage
devices |
|
11. Third party backup software support: Veeam backup &
replication, Acronis True Image, Arcserve backup, emc retrospect, Symantec
Backup Exec, etc. |
|
|
|
Cloud Drive Sync |
1. Multiple cloud account management like Google Drive, Dropbox,
OneDrive, and hubiC |
|
2. Supports multiple cloud accounts |
|
3. Manual, scheduled, periodic and continuous sync |
|
4. Flexible file filtering using type, date, and
size |
|
5. SSL transfer encryption |
|
6. Dashboard and job statistics |
|
7. Configurable network error recovery options |
|
8. Extensive job activity logging for tracing history of status and
statistics |
|
9. Concurrent job execution and multi-threaded data
transfer |
|
10. Per-account bandwidth throttling |
|
|
|
Cloud Backup Station |
1. S3 Plus (including Amazon S3) |
|
2. Amazon Glacier |
|
3. Google Cloud Storage |
|
4. WebDAV-based cloud storage |
|
5. Microsoft Azure |
|
6. OpenStack Swift |
|
|
|
Print Server |
1. Max number of printers: 3 |
|
2. Supports Internet Printing Protocol |
|
3. Print job display and management |
|
4. IP-based and domain name-based privilege
control |
|
|
|
Photo Station |
1. Show photos by thumbnails, list, timeline, or folder
view |
|
2. Supports virtual/smart albums |
|
3. Validity control for sharing albums |
|
4. Tag photos with text, colors, and ratings |
|
5. Slideshows with background music and different transition
effects |
|
6. Geotag photos and display them on Google maps |
|
7. Supports uploading photos/videos to Picasa, Flickr, and
Weibo. |
|
8. Backup/Restore album configurations. |
|
9. Photo Station Extension: Supports face detection and PDF to image
(available for x86-based models). |
|
10. Mobile app: Qphoto for online browsing and
sharing. |
|
|
|
Music Station |
1. Play or share music via web browser |
|
2. Supports streaming music to multiple devices. |
|
3. Supports changing album covers via Google search or by uploading
photos. |
|
4. Internet radio (MP3) |
|
5. Up to 8 music alarms |
|
6. Mobile app: Qmusic for music streaming and
management |
|
7. Switch between spotlight mode and manage mode. |
|
8. Supports advanced search. |
|
9. Supports scrolling lyrics. |
|
|
|
iTunes Server |
1. Audio and video sharing for Windows &
iTunes |
|
|
|
Video Station |
1. Show photos by thumbnails, list, timeline, or folder
view |
|
2. Supports virtual/smart collections |
|
3. Tag videos with text, color, and ratings |
|
4. Share video links to social websites or through
email |
|
5. Display movie information and posters from Internet sources or
user-uploaded files |
|
6. Supports displaying subtitles (*.SRT,*.ASS,
*.SSA) |
|
7. Supports online searching and downloading of subtitles as well as
importing subtitle files |
|
8. Supports adjusting the display style of
subtitles |
|
9. Supports Facebook friends login |
|
10. Supports advanced search. |
|
11. Supports advanced folder permission settings. |
|
12. Supports LDAP users. |
|
13. Videos can be uploaded to YouTube and Youku. |
|
14. Supports multi-zone video display |
|
15. Video seeking support for video playback during on-the-fly
transcoding3 |
|
16. Mobile app: Qvideo for online video browsing and
management |
|
|
|
AirPlay &omecast |
1. Streams videos, photos and music from NAS to Apple TV or Chromecast
via File Station, Music Station, Photo Station, Video Station or mobile
app (Qfile, Qmusic, Qphoto or Qvideo). |
|
Note: The Media Streaming add-on app must be installed from the QTS App
Center. |
|
|
|
Download Station |
1. PC-less BT, FTP/FTPS, and HTTP/HTTPS, Thunder, FlashGet and qqdl
download (up to 500 Tasks) |
|
- The maximum number of concurrent downloads for an Intel/AMD x86-based
NAS: 90 (30 BT/PT, 30 HTTP, 30FTP downloads) |
|
- The maximum number of concurrent downloads for an ARM-based NAS: 30
(10 BT/PT, 10 HTTP, 10FTP downloads) |
|
2. BT download with search, Magnet Link and PT
support |
|
3. Supports add-ons to expand download
functionality. |
|
4. Scheduled download and bandwidth control |
|
5. RSS subscription and download (broadcatching) |
|
6. Proxy support for BT download |
|
7. Mobile app: Qget for downloads browsing and
management |
|
|
|
Notes Station |
1. New user interface |
|
2. New collaborative editor for multi-user text
editing. |
|
3. New spreadsheet editor for creating tables. |
|
4. Online quick preview of multimedia attachments |
|
5. Smart snapshot for version control |
|
6. Full site backup for admin user - coming soon. |
|
|
|
Power Management |
1. Wake on LAN |
|
2. Internal hard drive standby mode |
|
3. Scheduled power on/off |
|
4. Automatic power on after power recovery |
|
5. USB and network UPS support with SNMP
management |
|
|
|
Access Right Management |
1. Batch users creation |
|
2. Import/Export users |
|
3. User quota management |
|
4. Local user access control for CIFS, AFP, FTP, and
WebDAV |
|
5. Application access control for Photo Station, Music Station, Video
Station, and File Station |
|
6. Subfolder permissions support for CIFS/SMB, AFP, FTP, and File
Station |
|
|
|
Domain Authentication Integration |
1. Microsoft Active Directory (AD) &ain Controller
support |
|
2. LDAP server, LDAP client |
|
3. Domain users login via CIFS/SMB, AFP, FTP, and File
Station |
|
|
|
myQNAPcloud Service |
1. Private cloud storage and sharing |
|
2. Free host name registration (DDNS) |
|
3. Optional myQNAPcloud SSL certificates (DDNS) |
|
4. Auto router configuration (via UPnP) |
|
5. Web-based file manager with HTTPS 2048-bit
encryption |
|
6. CloudLink for remote access without any complicated router
setup |
|
7. myQNAPcloud connect for easy VPN connection (Windows VPN
utility) |
|
|
|
Qsync |
1. Sync files across multiple devices with SSL secure
connection |
|
2. Selective synchronization for only syncing specific
folders |
|
3. Use team folders as a file center for greater team collaboration
(maximum sync tasks: x86:32, ARM:5) |
|
4. Shares files by links via e-mail |
|
5. Policy settings for conflicting files and file type filter
support |
|
6. Version control: up to 64 versions. |
|
7. Unified privilege management |
|
8. Unified configuration management |
|
9. Supports central configuration mode |
|
10. Supports remote erase/restore |
|
11. Supports shared folders sync |
|
12. Supports Windows & OS |
|
|
|
Resource Monitor |
1. Monitor NAS system resources including CPU, memory and
network. |
|
2. Monitor NAS storage resources including volumes, RAID, and disk
activity. |
|
3. Monitor the resource usage of NAS applications. |
|
|
|
Helpdesk |
1. Report issues to the QNAP support team, with automatically-collected
system information. |
|
2. Allows QNAP support engineers to remotely connect to the NAS to fix
issues (with user permission). |
|
|
|
Web Administration |
1. Multi-window, multi-tasking based system
management |
|
2. Smart toolbar and dashboard for neat system status
display |
|
3. Dynamic DNS (DDNS) |
|
4. SNMP (v2 & |
|
5. Resource monitor |
|
6. Network recycle bin for file deletion via CIFS/SMB, AFP, and File
Station |
|
- Automatic Cleanup |
|
- File Type Filter |
|
7. Comprehensive logs (events &nection) |
|
8. Syslog client/server |
|
9. System settings backup and restore |
|
10. Mobile app: Qmanager for remote system monitoring &
management |
|
|
|
HD (HybridDesk) Station 3.13 |
1. Use the NAS as a HTPC. |
|
2. Enjoy videos, music, photos on TV via HDMI, including online content
from Flickr, Picasa, Shoutcast, and more. |
|
3. Web browsers (Chrome, Firefox) |
|
4. Supports international keyboards, input and
mouse |
|
5. Supports user login permissions |
|
6. A variety of applications are available including Skype, Plex Home
Theater, and more |
|
Note: |
|
- The playback and quality of some video les may be affected by the
system's CPU and GPU decoding abilities. |
|
|
|
Linux Station |
1. Support installing Ubuntu Kylin via Linux Station. Use your NAS as a
Linux-based PC. |
|
2. Download and use a variety of applications from the Ubuntu Software
Center. |
|
3. Supports remote desktop to monitor and access Ubuntu
remotely. |
|
4. An open source software platform for
developers. |
|
Note: The NAS requires at least 4GB RAM and Container Station must be
installed. |
|
|
|
Virtualization Station3 |
1. Supports Virtual Machine (VM) creation to run operating systems such
as Windows, Linux, Unix and Android |
|
2. Supports VM import and export |
|
3. Supports VM cloning &pshots |
|
4. Supports VM backup and restore |
|
5. VM console can be displayed via HDMI output -
QVM |
|
6. HTML5-based shared remote console |
|
7. Supports different networking modes via Virtual
Switch |
|
|
|
Container Station |
1. Supports LXC and Docker |
|
2. Download applications from the built-in Docker Hub
Registry |
|
3. Supports one-click installation, container export/import &
console mode |
|
4. Supports three networking modes (Bridge, NAT and
Host)* |
|
5. Supports auto-start containers |
|
6. Supports downloading Docker certificates |
|
7. Supports adding private registries |
|
8. Added an application repository for users to switch to any
repository on GitHub.com. |
|
*Docker containers are capable of Bridge, NAT and Host mode, while
Linux containers support NAT only. |
|
|
|
Qsirch |
1. Supports full-text search |
|
2. Supports near real-time search |
|
3. Bar chart to show data distribution |
|
4. Supports previews for photos, music, videos, Gmail, PDF
.etc |
|
5. Customized search filters |
|
6. Supports cloud viewers for previewing document. |
|
7. Show search results using thumbnails or a list |
|
8. Supports search Chrome extension |
|
* Supported models: x86-based QNAP NAS with at least 2GB RAM and
ARM-based QNAP NAS with at least 4GB RAM. |
|
|
|
iSCSI (IP SAN) |
1. iSCSI target with multi-LUNs per target (Up to 256 targets/LUNs
combined) |
|
2. Supports LUN mapping &king |
|
3. Online LUN capacity expansion |
|
4. Support for SPC-3 persistent reservation |
|
5. Supports MPIO &S |
|
6. iSCSI LUN backup, one-time snapshot, and
restoration |
|
7. iSCSI connection and management by QNAP Windows
Qfinder |
|
8. Virtual disk drive (via iSCSI initiator) |
|
9. Stack chaining master |
|
10. Max No. of virtual disk drives: 8 |
|
|
|
Surveillance Station |
1. Supports over 3,000 IP cameras |
|
2. Includes 4 free camera licenses, up to 72 camera channels by
purchasing additional licenses |
|
3. Instant playback to check recent events |
|
4. Visual aid by e-map |
|
5. Playback and speed control using the shuttle
bar |
|
6. Video preview on playback timeline |
|
7. Intelligent video analytics (IVA) for advanced video
searching |
|
8. Surveillance client for Mac |
|
9. Mobile surveillance app: Vmobile (iOS and
Android) |
|
10. Mobile recording app: Vcam (iOS and Android) |
|
|
|
QVPN (Integrated VPN Server,
VPN Client and L2TP/IPSec VPN
Services) |
1. VPN Server: Secure remote access with PPTPL2TP/IPSec &nVPN
VPN services |
|
2. VPN Server: Up to 100 clients. |
|
3. VPN Server: Supports domain users as VPN users. |
|
4. VPN Client: Supports PPTP, L2TP/IPSec &nVPN VPN
protocols. |
|
5. VPN Client: Supports importing .ovpn files to create OpenVPN
connection. |
|
|
|
DLNA Server |
1. Supports DLNA/UPnP TVs and players such as PlayStation 4 and Xbox
One |
|
2. Support CUE indexing file for APE, FLAC audio
format. |
|
3. Video and Audio On-the-y
Transcoding3 |
|
|
|
Q'center (NAS CMS) |
1. Multiple NAS monitoring |
|
2. Utilization history reports |
|
3. Unified configuration management |
|
4. Visual display reports |
|
5. Monitor NAS behind NAT routers with Q'center
Assistant |
|
6. Virtual appliances supported with Microsoft Hyper-V and VMware
ESXi |
|
|
|
OceanKTV |
1. Use the NAS as a karaoke machine. |
|
2. Play videos from YouTube without needing to download
them. |
|
3. Display songs by artists, languages, and
favorites. |
|
4. Enhance the experience with effects such as tuning echo, key, or
applause |
|
5. Control the playlist with a mobile app. |
|
6. Supports keyboard and remote control
(RM-IR002). |
|
|
|
Qfinder Pro |
1. Find QNAP NAS that are on the same local network as your
PC. |
|
2. Easily mount NAS shared folders. |
|
3. Configure basic settings for the NAS including firmware updates,
setting SMTP server, and changing network settings. |
|
4. Supports direct connection with USB
QuickAccess. |
|
5. Storage Plug &nect (Windows only). |
|
- Create and map NAS shared folders. |
|
- Create and connect to iSCSI target/LUNs. |
|
6. Media Upload (Windows only). |
|
- Upload media files to the NAS and automatically create thumbnails or
transcode videos using the PC. |
|
|
|
App Center |
1. Over 100 official and community software
add-ons |
|
2. Automatically update apps or send notifications of new app
versions. |
|
3. App repository to import third-party content. |
|
4. Choose what volume to save apps to. |
|
|
|
Qcontactz |
1. One-way scheduled sync of contacts from multiple Google
accounts |
|
2. Import contacts from file: CSV or vCard 3.0 |
|
3. Export contacts into a file: CSV and vCard 3.0 |
|
4. Find duplicate contacts and merge them |
|
5. Snapshot management for your contacts database |
|
6. Manage contacts: Groups, favorite, lock, search, delete &
restore |
|
7. Supported for mobile: Android and iPhone |
|
|
|
QButton |
1. Supports Music Station and Surveillance Station |
|
2. Supports voice
confirmation |
