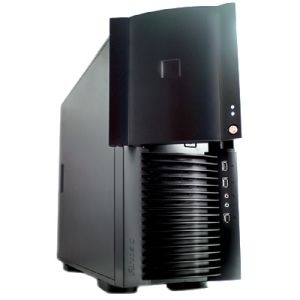

Antec Titan Pedestal Server Chassis, No PSU - 5U
Inc. 6x Fixed Hard Drive Bays, 4x 5.25" Drive Bays
Supports ATX, CEB & EATX Motherboards

No Longer Available

Part Number:

51721

(?) Brand:

Antec Web Site

Manuf No:

TITAN; 761345-91560
TITAN; 76134591560

Shipping Weight:

25 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Reviews Files Images & Video

All stock codes associated to this product

TITAN;76134591560, TITAN; 761345-91560, TITAN

A new standard for server grade systems

A New Standard for Server Grade Systems The Titan is designed to meet the needs of today's server and workstation markets. Front accessible HDD installation makes it easy to build and upgrade the system. The front double-hinged door opens up to 270 degrees to make accessing external drives a breeze. The Titans extra deep chassis creates better airflow and accommodates dual Xeon and Opteron based systems.All of these features and more make the Titan an ideal case for professional system builders and power users.

Features:

Removable front bezel for easy installation
Double hinge door design: open the door up to 270
Ultra-quiet cooling system:
- 1 rear 120mm standard fan with TriCool 3-speed switch
- 2 front (optional) 92mm case fan mounts
10 Drive Bays
- External 4 x 5.25" (one with 5.25" to 3.5" adapter)
- Internal 6 x 3.5"
Front ports: 2 x USB 2.0, 1 x IEEE 1394 (FireWire, i.Link), Audio In and Out.
Power Supply included: NO
7 Expansion Slots
1.0mm cold rolled steel for durability
Motherboard: up to Extended ATX including CEB specification motherboard 12 x 13
Unit Dimensions:
- 17.6" (H) x 8.1" (W) x 23" (D)
- 44.6cm (H) x 20.5cm (W) x 58.4cm (D)
Package dimensions:
- 20" (H) x 11" (W) x 26" (D)
- 50.80cm (H) x 27.94cm (W) x 66.04cm (D)
Weight:
- Net:30.00b / 13.6kg
- Gross: 36.00lb / 16.33kg

No additional files, specification sheets, guides or documentation found for product.

Warranty: 3-year Manufact.

Full manufacturers warranty details are available at the manufacturers (Antec) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.

Visitor Reviews

Average Visitor Review:
Number of Reviews Found: ( / 5 )

Reviewd By: Vic
Visitors Age: 35
Visitors Rating:

Titan 550

Pros: excellent server box, easy to scale, solid steel construction in and out Cons: plastic fron cover, thin plastic hinges (broken after 2 months of use), no provisions for intake air filter!
