Samsung 160GB 7200rpm Serial ATA-II-300 HDD w. 8MB Cache (HD161HJ) S166 Series

IMG 1 of 0
No Longer Available
Part Number:
53701
(?) Brand:
Samsung Web Site
Manuf No:
HD161HJ
Shipping Weight:
0.5 KG (Includes product packaging)
Estimate Shipping
Date Added:
14/9/2005
Details Files Images & Video
All stock codes associated to this product
HD161HJ, SAM9019

S166 series
capacity: 160GB
interface: SATA 3.0Gbps
buffer memory: 8MB

Features
- up to 160GB formatted capacity
- SATA native command queuing feature
- staggered spin-up support
- ATA S.M.A.R.T compliant
- ATA 48-bit address feature
- ATA device configuration overlay feature
- SilentSeek
- serial ATA 3.0Gbps interface support
- device initiated SATA power management
- high speed dual DSP based architecture
- ATA automatic acoustic management feature
- ATA streaming feature (optional)
- ImpacGuard

Specifications

HD161HJ
Drive Configuration Capacity 160GB
Interface SATA 3.0Gbps
Buffer DRAM Size 8MB
Byte per Sector 512
Rotational Speed 7,200RPM
Performance Specifications Average Latency 4.17ms
Average Seek time(typical) 8.9ms
Media Transfer Rate(Max.) 300MB/s
Interface Transfer Rate(Max.) 967MB/s
Drive Reday Time(typical) 8s
Reliability Specifications Non-recoverable Read Error 1 sector in 10^14bits
Start/Stop Cycles 50,000
Acoustics Idle 2.45Bel
Performance Seek 2.80Bel
Environmental Specifications Temperature Operating 0 ~ 60C
Non-operating -40 ~ 70C
Humidity(non-condensing) Operating 5 ~ 90%
Non-operationg 5 ~ 95%
Liner Shock(1/2 sine pulse) Operating 63G
Non-operating 350G
Vibration Operating N/A
Non-operating N/A
Altitude(relative to sea level) Operating -1,000 to 10,000ft
Non-operating -1,000 to 40,000ft
Power Requirenents Voltage 5V +/- 5%, +12V +/- 10%
Spin-up Current(Max.) 2A
Seek(typical) 9.5W
Read/Write(typical) 8.0W
Idle(typical) 6.5W
Standby(typical) 0.7/1.5W
Sleep(typical) 0.7/1.5W

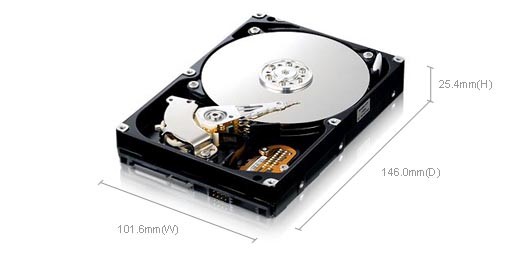

Physical Dimension Height (Max.) 25.4mm
Width 101.6mm
Length 146.0mm
Weight(avg.) 544g
Features and specifications are subject to change without prior notification.


No additional files, specification sheets, guides or documentation found for product.

Warranty: 3-year Manufact.

Full manufacturers warranty details are available at the manufacturers (Samsung) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
