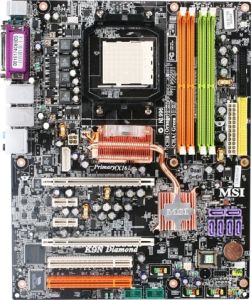

MSI K9N-DIAMOND Motherboard
  • AM2, nForce590-SLI, DDR2, 2xPCI-Ex16, SATA-II, RAID, 2xGigLAN, 8Chl, Firewire, ATX

IMG 1 of 1
No Longer Available
Part Number:
65232
(?) Brand:
MSI Web Site
Manuf No:
K9N DIAMOND
Shipping Weight:
2.5 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
K9N, DIAMOND, K9NDIAMOND, MBMSK9ND


CPU

AMD  Athlon 64 X2, Athlon 64, Athlon FX and Sempron in the Socket AM2 package.


FSB

HyperTransport supporting speed up to 1GHz (2000MT/s)

 Chipset

North Bridge: NVIDIA nForce 590 SLI Chipset
South Bridge: NVIDIA MCP55PXE Chipset

Main Memory

Supports Dual DDR II 533/667/800
- 4 DDRII DIMMs (240pin / 1.8V)
- Supports a maximum memory size up to 8GB.


Slots

2 PCI Express x16 slots (Supports SLI technology, both PCIE x16 slots compatiable with PCI Express x 16 speed)
2 PCI Express x1 slots
2 PCI slots, support 3.3V/ 5V PCI bus Interface, includes one orange slot which supports 2 master for MSI special PCI function card (ex. wireless LAN and bluetooth combo card.).

On-Board IDE

One IDE port by NVIDIA MCP55PXE
- Supports Ultra DMA 66/100/133 mode
- Supports PIO, Bus Master operation mode
- Can connect up to two IDE devices

On-Board SATA

6 SATA II ports by NVIDIA MCP55PXE
- Supports storage and data transfers at up to 300 MB/s

RAID Function

- SATA II 1~6 supports RAID 0/ 1/ 0+1 /5 or JBOD mode by NVIDIA MCP55PXE

MSI Reminds You...
The RAID setup floppy disk is optional depending on the districts. You can download the files from the website to make the setup disk.




Audio

Chipset integrated by Creative CA0106
- 24-bit / 96 KHz audio quality
- 100db SNR clarity
- Up to 7.1 Channel audio-out and SPDIF-out






LAN



Dual LAN jacks
- Supports Dual LAN 10/100/1000 Fast Ethernet by Vitesse VSC8601


IEEE1394

Chipset integrated by VIA VT6306
- Transfer rate is up to 400Mbps


Internal I/O Connectors

- ATX 24-pin power connector
- ATX 4-pin 12V CPU power connector
- ATX 4-pin VGA power connector
- CPU / Power / System / NB FAN connectors
- CD-in connector
- Clear CMOS button
- IrDA infrared module header
- Chassis intrusion switch connector
- Front panel audio connector
- Front panel connector
- D-Bracket2 connector
- 2 x IEEE1394 connector support additional 2 ports
- 3 x USB 2.0 connector support additional 6 ports
- 1 x Floppy disk drive connector
- 6 x Serial ATA II connectors
- 1 x ATA133 HD connectors

MSI Reminds You...
The floppy disk cable will be optional.


Back Panel I/O Ports

- 1 x Parallel port
- 1 x Serial port (COM 1)
- 1 x PS/2 keyboard
- 1 x PS/2 mouse
-  1 x Coaxial SPDIF out
- 1 x IEEE1394 Port
-  1 x 6 in 1 audio jack (S/SPDIF out)
- 4 x USB 2.0 ports
- 2 x RJ45 LAN jack

Dimension

30.5cm(L) x 24.5cm(W) ATX Form Factor

Mounting

9 mounting holes.

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (MSI) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
