No Longer Available

Part Number:
65594
(?) Brand:
Manuf No:
CMPSU-620HX
CMPSU620HX
Shipping Weight:
3 KG (Includes product packaging)
Estimate Shipping
Date Added:
All stock codes associated to this product
CMPSU620HX, CMPSU-620HX

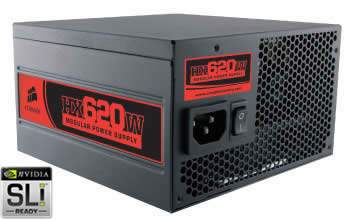

Advanced High Performance Power Supply for the Most Demanding PC!

From the manufacturer of the "World's Most Awarded Memory" comes the Corsair HX Series Power Supply. With that same legendary focus on the performance and reliability, Corsair has engineered the HX Series to support even the most demanding of systems. The Corsair HX Series incorporates the most advanced technology to deliver reliable, continuous, and efficient power to all critical system components. The HX Series is the ideal power supply for high performance and gaming PCs, Audio/Video workstations, and file servers.


Corsair HX Series Features:

  • Supports the latest ATX12V v2.2 and EPS12V 2.91 standards and is backwards compatible with ATX12V 2.01 systems.
  • Guaranteed compatibility with dual-GPU configurations.

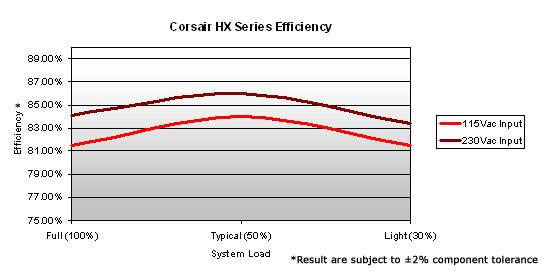

  • Double forward switching circuitry design offers high efficiency, up to 80% under wide load range.
  • Active Power Factor Correction with PF value=0.99 provides clean and reliable power to your system.
  • Universal AC input 90~264V automatically scans and detects the correct voltage. No more hassle of flipping that tiny red switch!

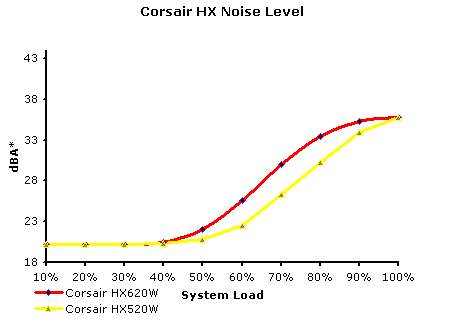

  • Ultra quiet 120mm double ball-bearing fan delivers excellent airflow at an exceptionally low noise level by varying the RPM in response to temperature.
  • Guaranteed to deliver rated specifications at 50C.

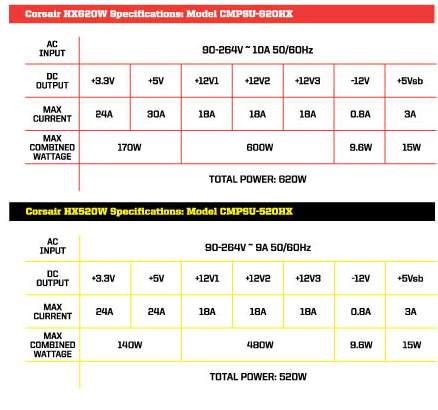

  • Triple 12V Rails provide independent reliable power to the CPU, video card and other components with a combined rating of 50A (40A on 520W) maximum! Advanced circuitry design that automatically enables power sharing between the triple +12V rails in an event of overload on any single +12V rail.
  • Powerful +5Vsb rail with 3A rating.
  • Over Current/Voltage/Power Protection, Under Voltage Protection, and Short Circuit Protection provide maximum safety for your critical system components.

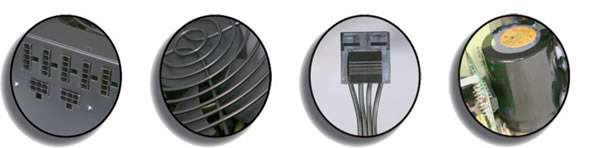

  • 105C rated industrial grade capacitors provide uncompromised performance and reliability, delivering 4 times the lifespan of conventional 85C rated capacitors.
  • Enhanced modular flexible cables enable easier cable routing and increased airflow in the system.
  • Gold Plated connectors provide oxide free ultra low-resistance contact between the power supply and your critical components.
  • 8 Serial ATA connectors (4 on 520W).
  • Dimension: 5.9"(W) x 3.4"(H) X 5.9"(L)
    150mm(W) x 86mm(H) x 150mm(L)
  • MTBF: 100,000 Hours
  • Safety Approvals: UL, CUL, CE, CB, FCC Class B, TV, CCC, C-tick.
Reviews for HX Power Supplies

Bjorn3D.com: "The Corsair CMPSU-620HX 620W power supply literally beats the pants off every mid to upper range PSU I've tested thus far so why not make it my reference standard until I find something better, assuming that happens"

"We'll begin our conclusion by saying that the Corsair CMPSU-620HX 620W power supply is one incredible power supply! The test system utilized is by no means a slouch, we threw everything we had at this PSU and it was like it wasn't even phased by the load. I'm simply amazed by its performance! With performance of this type one would expect the cooling fan to be working at max RPMs, WRONG! The CMPSU-620HX took the load in stride and easily proved to be the quietest PSU I've tested to date. I could never even hear the Adda fan of this unit, much less hear it ramp up the RPMs due to increased power demand. Let's see quiet, efficient, solid as a rock, hmmm I think I've covered all the bases. ...Oh, did I mention that until a better product comes along this will be my new reference power supply. Some might think that this is a huge step for a brand new product, I would both agree and disagree! It's a huge step for a brand new product to perform as well as this product does, it's not a huge step to uses it as a reference PSU. Final Score: 9.5 out of 10 and the Bjorn3D Golden Bear award."



PC Perspective: "Corsair brings to market an excellent new power supply... Highly recommended."

"The HX620W delivers solid voltages with very good regulation and excellent efficiency. It supports the latest ATX12V v2.2 and EPS12V 2.91 standards and is backed by an industry leading 5-year warranty. With 620W of continuous power, the HX620W should be well suited for your next high-end gaming or workstation build. For excellent performance and outstanding efficiency, the new Corsair HX620W power supply is awarded the coveted PCPerspective Silver Award."



Jonny Guru (PSU test specialist): "No doubt Corsair has put forward a power supply that would suit anyone's needs."

"What do you get when you take a solid platform, with 80% efficiency, active PFC, a quiet 120MM fan and a well designed fan controller and make it modular for $169? Why, it's a Corsair HX620W, of course!"



LegitReviews: Editor's Choice Award

"It clearly out performs a number power supplies that we have reviewed in the past, which goes to show that Corsair has spent a great deal of time researching what type of power supply to put together for enthusiasts. With a clean and simple metal housing on the outside and strong and stable components on the inside we strongly suggest looking at the HX series from Corsair."



HotHardware.com: Editor's Choice

"In nearly every respect, Corsair has done an excellent job with the CMPSU-620HX power supply. The unit features three 12V rails, a unique modular cable design, industrial grade components, it boasts an 80%+ efficiency rating, and is exceptionally quiet."



ViperLair.com: "VL Recommended"

"Where we feel the Corsair has a clear advantage is the warranty and the cabling. The efficiency rating on Corsair is also a little higher at 84%, which will matter if you tend to leave your PC powered on 24/7."

No additional files, specification sheets, guides or documentation found for product.

Warranty: 5-year Manufact.

Full manufacturers warranty details are available at the manufacturers (Corsair) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
