Samsung 500GB 7200rpm Serial ATA-II-300 HDD w. 16MB Cache (HD501LJ) Spinpoint T

IMG 1 of 1
No Longer Available
Part Number:
67100
(?) Brand:
Samsung Web Site
Manuf No:
HD501LJ
Shipping Weight:
1 KG (Includes product packaging)
Estimate Shipping
Date Added:
27/10/2006
Details Files Images & Video
All stock codes associated to this product
HD501LJ, 1321553

T166 series
capacity : 500 GB
interface : SATA 3.0 Gbps
buffer memory : 16 MB

HD501LJ Features Image 1

Serial ATA

SATA is a computer bus technology primarily designed for transfer of data to and from HDDs and optical drives.
It uses only 4 signal-lines, allowing for much more compact cables compared to PATA.

device initiated power management

When there are no commands on the HDD, this feature automatically switches on power saving mode and cuts down on electricity through the SATA cable.
It can effectively reduce power consumption.

high speed dual DSP(Digital Signal Processor) based architecture

High speed dual DSP in the main controller IC enhance the performance and speed of the HDD.

ATA automatic acoustic mangement feature set

Automatic acoustic management feature set is an optional feature set that allows the host to select an acoustic management level.

ATA streaming feature(optional)

ATA streaming feature supports command set for AV data that stream error logging to reduce time delays for system error processing and handle stream errors to enable full error recovery.

SilentSeek

SilentSeek is designed to minimize the mechanical excitation generated by any resonance, virtually eliminating the source of seek acoustic noise.

SATA Native Command Queuing(NCQ) feature set

SATA NCQ is created to improve the HDD performance by re-ordering the commands sent by the computer to the HDD.

enable/disable staggered spin-up

Staggered spin-up of HDD is not confined solely to mobile drives, and is a feature of many multi-drive systems using RAID.
This feature allows not only greater reliability, but also the system to avoid power surges if all of the HDDs spin up simultaneously during system power up (in a multi-drive environment).

ATA S.M.A.R.T compliant

ATA S.M.A.R.T compliant is designed hard disk drive to check the reliability itself and directly transfer to host.

ATA 48-bit address feature

ATA 48-bit address feature is a technology which extends the capacity of IDE ATA/ATAPI devices beyond this limit of 137.4 GB, supporting 48 bit LBA.

ATA device configuration overlay feature

ATA device configuration overlay feature set allows a utility program to modify some of the optional commands, modes, and features sets that a device reports as supported in identifying device command response as well as the capacity reported.

ImpactGuard

ImpacGuard prevents an HDD disc from vibrating when not assisted by the helping head media, which is parked in the landing zone.

Specifications

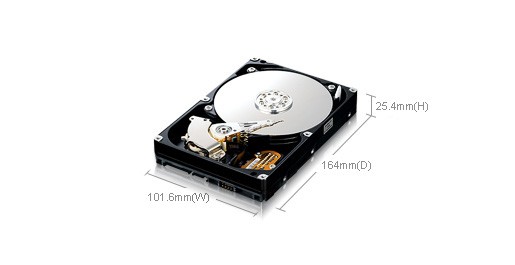

HD501LJ Spec Dimension Image_sd

Drive Configuration Capacity 500 GB
Interface SATA 3.0 Gbps
Buffer DRAM Size 16 MB
Byte per Sector 512
Performance Specifications Seek time - track to track 0.8 ms
Seek time - average 8.9 ms
Seek time - full stroke 18 ms
Average Latency 4.17 ms
Rotational Speed 7200 rpm
Drive Reday Time 10 sec
Reliability Specifications Non-recoverable Read Error 1 sector in 10^14 bits
Start/Stop Cycles 50,000
Component Design Life 5 years
Acoustics Idle 2.7 bel
Random Read 2.9 bel
Random Write 2.9 bel
Environmental Specifications Operating Temperature 0 to 60 C
Non-operatingTemperature -40 to 70 C
Operating Humidity 5 to 90 %
Non-operationg Humidity 5 to 95 %
Operating Liner Shock 63 G
Non-operating Liner Shock 300 G
Operating Altitude -1,000 to 10,000 ft
Non-operating Altitude -1,000 to 40,000 ft
Power Requirenents Voltage +12V10%
Spin-up Current 2,000 mA
Seek 10.6 W
Read/Write 10.0 W
Idle 8.2 W
Standy 0.7 W
Sleep 0.7 W
Physical Dimension Height (Max.) 25.4 mm
Width 101.6 mm
Length 146 mm
Weight 639 g
Features and specifications are subject to change without prior notification.

No additional files, specification sheets, guides or documentation found for product.

Warranty: 3-year Manufact.

Full manufacturers warranty details are available at the manufacturers (Samsung) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
