ZyXEL PL-100 Powerline Ethernet Adapter - up to 85Mbps Equivalent

IMG 1 of 1
No Longer Available
Part Number:
68350
(?) Brand:
ZyXEL Web Site
Manuf No:
PL-100
PL100
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
PL100, PL-100, ZY18960
ZyXEL PL-100 Powerline Ethernet Adapter - up to 85Mbps Equivalent

Power Up Your Network

- Up to *85Mbps-Equivalent Data Rate over Existing Power Line
-HomePlug 1.0 Certified
- 56-bit DES Protection for Secure Data Transmission
-Stylish Desktop Design with Universal Power Cord


Benefits

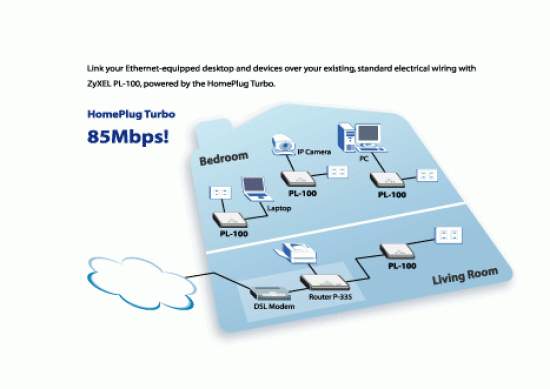

Extended LAN Solution through Power Lines
The ZyXEL Powerline is an extended access solution that allows your house to be completely networked with existing power lines. With no need for additional wiring, simply connect the ZyXEL HomePlug PL-100 to an existing power socket, and it will transform your electrical power lines into a house-wide network infrastructure. It's the easy way to allow data and power to share the same power socket.

High Transmission Rate of up to 85Mbps
Powered by HomePlug Turbo Technology, the ZyXEL PL-100 can achieve data rates of up to 85Mbps. The power line solution allows users surf the web, access e-mail, and deliver large files easily and safely using high-speed Power Line connections.

Advanced 56-bit DES Security Protection
With 56-bit Data Encryption Security (DES) capability, the PL-100 provides secure Internet access and allows file and peripheral sharing. Now you can surf the Internet from any room in your home through the network over existing power lines.

Easy Installation
No new wiring is required. The ZyXEL PL-100 is an Ideal solution for residential users requiring LAN extension without laying new cables. Simply plug the ZyXEL PL-100 into a power socket to access the in-house Internet or PC network.


Specification



System Specifications

  • Network Standard: HomePlug Turbo 85Mbps data rate compliant
  • Powerline Network
    • Supports up to 16 (Tone Map)PL- devices communicating on a single network
    • Each Powerline Ethernet adapter supports 15 remote Ethernet addresses. With total 4 groupsthen it can support up to total 64.
  • Modulation
    • OFDM Symbol Modulation,
    • Supports QAM 256/64/16, DQPSK, DBPSK and ROBO Carrier modulation schemes
  • Frequency Band: 4.3 MHZ ~ 20.9 MHZ
  • Coverage Area: up to 300 meters/984 feet
  • Security: 56-bit DES with Key Management

Hardware Specifications

  • Interface: RJ-45 compatible
  • LED Display
    • PWR: Power-Light Locate on Top-Case
    • LINK: Power-Line Link/ACT Locate on Top-Case
    • ETHN: LINK/ACT Locate on Top-Case
  • Power Input: 100-240VAC, 50~60Hz, 0.05A

Physical Specifications

  • Dimensions: 112 (W)x 106(D)x 28.5(H) mm
  • Weight: 185.8g

Environmental Specifications

  • Operating Temperature: 0C ~ 45C
  • Humidity: 10%~90% Non-condensing

Certification

  • FCC, CE, HomePlug Certification
* 85Mbps is the data rate in theory. Actual throughput depends on interference in your household power circuit and the quality of the electrical installation.



No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (ZyXEL) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
