CoolerMaster Hyper TX - AMD CPU Cooler, S754/939/940/AM2, 22dBA, 41.76CFM

IMG 1 of 1
No Longer Available
Part Number:
68506
(?) Brand:
CoolerMaster Web Site
Manuf No:
HYPER-TX-AMD
HYPERTXAMD
Shipping Weight:
1.5 KG (Includes product packaging)
Estimate Shipping
Date Added:
19/12/2006
Details Files Images & Video
All stock codes associated to this product
HYPERTXAMD, HYPER-TX-AMD
Hyper TX (AMD)

(RR-DCH-S9U1-GP)

  • Compatible with The Latest CPU
  • Comprehensive Cooling Solution
  • Greater Airflow
  • Silent Operation
  • Easy Installation

Features

  • Comprehensive Cooling Solution: Cools CPU and the surrounding components.
  • Compatibles with AMD Socket AM2.
  • Super silent CPU cooler at only 22 dBA.
  • Copper-based and aluminum heat sink with 3 embedded heat pipes design provides excellent heat dissipation.
  • New 90 mm fan blade and frame design produces greater airflow as 100 mm fan.
  • Easy installation design without removing the motherboard.


Specifications

CPU Socket AMD Socket 754/ 939/ 940 / AM2

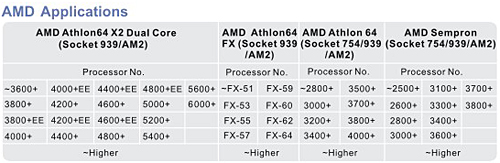

CPU Support AMD:
Phenom, Athlon 64 FX, Athlon 64 X2, Athlon X2, Sempron

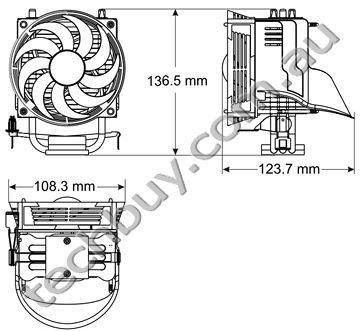

Dimensions 108.3 x 123.7 x 136.5 mm
Weight 452 g
Heat Sink Dimensions 90 x 44 x 136.5mm
Heat Sink Material Copper base / Aluminum fin/ 3 heat pipes
Heat Pipes Dimensions 6 mm
Fan Dimension (W / H / D) 92 x 25mm
Fan Speed 650 ~ 1800 R.P.M.
Fan Airflow 41.76 CFM
Fan Air Pressure 1.58mm/H20
Bearing Type Long life sleeve bearing
Fan Life Expectancy 40,000 hours
Fan Noise Level (dB-A) 22dBA
Connector 4 pin
Fan Speed Adjustment PWM
Rated Voltage 12 V
Start Voltage 7 V
Operating Voltage 10.8~13.2 V
Rated Current 0.18 A
Input Power 2.16 W

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (CoolerMaster) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
