CoolerMaster PTP-U01 - Masterpad Pro, Thermal Interface Pad (not for CPU) **Limited Stock**

IMG 1 of 1
No Longer Available
Part Number:
68509
(?) Brand:
CoolerMaster Web Site
Manuf No:
PTP-U01
PTPU01
Shipping Weight:
0.5 KG (Includes product packaging)
Estimate Shipping
Date Added:
19/12/2006
Details Files Images & Video
All stock codes associated to this product
PTPU01, PTP-U01, ACCOPTPU01

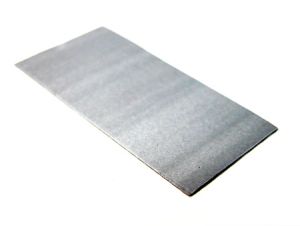

Coolermaster PTP-U01 - Masterpad Pro, Thermal Interface Pad (not for CPU)

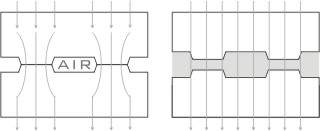

  MasterPad Pro is a gap-filler that is formulated to provide the best possible heat transfer characteristic. Its thermal conductivity is 2 X higher than other leading brands on the market. It is the ideal thermal interface to application fields where there are gaps between two mating surfaces.

Application:
- Chipsets on Mainboard and VGA cards
- HDD, CD-ROM
- Power components

Caution:
- Masterpad is a gap filler, it cannot be used on high power rating components such as a CPU
- Pressure must be applied, not suitable for heat sinks without fasteners
- The thickness of the gap-filling material MUST be thicker than the gap
- Please tailor the pad size that suits your needs.


Highly electrical isolative, highly incombustible, and with high compression ratio.
Applicable in a wide temperature range from -60C to 200C.
Cushion effect provides high quality protection from deformation caused by wrapping or vibration.
The material used is environmentally friendly and non-toxic.
Passed Bellcore Specifications per document TR-NWT-000930, exhibiting superior low volatilization.

Color Light Gray
Thermal Conductivity 14 W/mK
Breakdown Voltage 18 KV/mm
Withstand Voltage 11 KV/mm
Size 60mm x 30mm x 0.3mm



No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (CoolerMaster) web site.
