Product DetailsGo BackEmail to FriendPrint
Hard Drive Controllers -> Serial ATA RAID Controllers -> 3Ware

3Ware 9650SE-4LPML RAID Controller - 4-Port SATA, RAID 0,1,10,5,JBOD, Multilane Connector, Low Profile - PCI-Ex4
Cart
Quantity:
Add 3Ware 9650SE-4LPML RAID Controller - 4-Port SATA, RAID 0,1,10,5,JBOD, Multilane Connector, Low Profile - PCI-Ex4 to your wishlist
Click here to write a review on 3Ware 9650SE-4LPML RAID Controller - 4-Port SATA, RAID 0,1,10,5,JBOD, Multilane Connector, Low Profile - PCI-Ex4

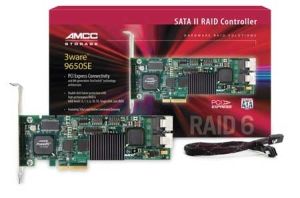

Large image is available
Product May Vary From Image

Our Price:
$638.65

Techbuy Part No:70194
Usually Ships: 1-3 Days Details
Brand:3Ware Web Site
Manuf No:9650SE-4LPML
 9650SE4LPML
Shipping Weight:1 KG How Much?
Date Added:16/2/2007
Rating: Not Rated
Currency:AUD Convert

Product Description

3ware 9650SE

AMCC's 3ware 9650SE SATA II hardware RAID controllers deliver industry-leading RAID 6 and RAID 5 performance, robust fault tolerance, and multi-terabyte capacities. A PCI Express host interface, Multi-lane connectivity, StorSwitch architecture and sophisticated SATA II features drive this unrivaled performance.

The Best Keeps Getting Better
The 3ware 9650SE PCI Express to SATA II RAID controller pushes AMCC's established leadership in RAID controller performance to new heights. While 3ware controllers continue to lead the market in RAID 5 performance, the 3ware 9650SE outshines the competition as the new standard bearer for RAID 6 performance, delivering over 800MB/s RAID 6 reads and 600MB/s RAID 6 writes.


Red Hot RAID 6
3ware's parallel XOR RAID 6 parity generation algorithm maximizes RAID 6 throughput, so that RAID 6 enabled 9650SE controllers deliver unequaled RAID 6 performance


3ware 9650SE Selection Guide

Model 9650SE-2LP 9650SE-4LPML 9650SE-8LPML
Form Factor Low Profile Low Profile Low Profile
Port Count 2 4 8
PCI Express Lanes 1 4 4
Raid Levels 0,1, Single Disk,JBOD 0,1,5,10,Single Disk,JBOD 0,1,5,6,10,50,Single Disk,JBOD
Onboard Memory 128 MB DDR2 533 256 MB DDR2 533 256 MB DDR2 533
Connector Type Discrete Multi-lane Multi-lane
BBU Support No Yes Yes

Model 9650SE-12ML 9650SE-16ML 9650SE-24M8
Form Factor Full Height Full Height Full Height
Port Count 12 16 24
PCI Express Lanes 8 8 8
Raid Levels 0,1,5,6,10,50 Single Disk,JBOD 0,1,5,6,10,50,Single Disk,JBOD 0,1,5,6,10,50,Single Disk,JBOD
Onboard Memory 256 MB DDR2 533 256 MB DDR2 533 512 MB DDR2 533
Connector Type Multi-lane Multi-lane Multi-lane
BBU Support Yes Yes Yes
* All models are RoHS Compliant


3ware 9650SE Features

  • 8th-generation StorSwitch non-blocking switched architecture.
  • On-board I/O RISC processor and RAID offload provides true hardware RAID.
    - SCSI device driver model to take advantage of the benefits of SCSI using inexpensive Serial ATA drives .
  • Bootable array support for greater fault tolerance.
  • Variable stripe size for performance tuning by application.
  • 64-bit LBA support.
  • ATA pass-through mode support.
  • Up to 512MB DDR2 533 memory with ECC protection. (see table below)
  • 32 pooled DMA channels.
  • Complete configuration management suite.
    - 3ware BIOS Manager 2 (3BM2) easy to use BIOS configuration tool.
    - 3ware Disk Manager 2 (3DM2) browser-based management tool.
    - Command Line Interface (CLI) scriptable configuration tool.
  • SNMP support.
  • SMTP support for email/pager notification.
  • ATA/6 and Out of band (OOB) staggered drive spin-up support.
  • Auto carving allows LUNs > 2TB to be divided into multiple units for legacy operating systems limited to 2TB max. per LUN.
  • Battery Backup Unit (BBU) support.
  • Multiple logical unit sizes and RAID levels on one card.
  • Multiple card support within a system for large storage requirements.
  • Hot-swap and hot-spare support for data availability.
  • Dynamic sector repair for robust data protection.
  • S.M.A.R.T. disk drive monitoring for reliability.
  • Emergency Flash Recovery protects against failed firmware upgrade.
  • Drive activity LED support.
  • Online Capacity Expansion and RAID Level Migration.
  • Enhanced data protection with write journaling for non-redundant arrays and accidental drive removal.
  • Drive insertion and removal notification.
  • Array/Drive Status and drive identification LED support. (requires 3ware Chassis Control Unit-enabled backplane)
  • Chassis Control Unit for enclosure management via I2C.

Operating System Support

Microsoft Windows 2003/XP/2000, Red Hat Linux, SuSE Linux, Fedora Linux, 2.4 Linux kernel, 2.6 Linux kernel, FreeBSD; 32/64-bit driver support for Windows, Linux and FreeBSD For complete OS listing, Go to: www.3ware.com/support/OS-Support.asp


Product Warranty


3
