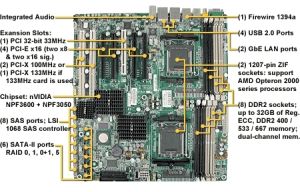

Tyan Thunder n6650W - S2915WA2NRF
2x F1207, AMD Opteron 2200/2300 Series, 8x Reg ECC DDR2-667, 4xPCI-Ex16, 2xPCI-X, 1xPCI, 6xSATA-II, SAS, RAID 0,1,0+1,5 & JBOD, 2xGigLAN, VGA, Audio, IEEE, ATX

Processor
Dual 1207-pin sockets support AMD Opteron
(Rev. F) 2000 series processors
Uses the standard 3 1/2"/ 89mm socket connector
Two onboard 5-phase digital VRMs

Chipset
nVIDIA NFP3600 + NPF3050
NEC nPD720404 PCI-X tunnel
SMSC 5307 Super I/O controller

Memory
Dual channel memory bus
(8) 240-pin DDR2 DIMM sockets (four per CPU)
Supports registered, ECC DIMMs
32GB maximum of DDR2 667/533/400 memory

Expansion Slots
(4) PCI-E x16 slots
- (1) x16 signal from IO55
- (1) x16 from MCP55
- (1) x16 from MCP55 with x8 signal
- (1) x16 from IO55 with x8 signal
(2) PCI-X 100MHz slots from NEC nPD720404
or (1) PCI-X 133MHz slot if 133MHz card is used
(1) PCI v2.3 32-bit 33MHz slot
(7) Expansion slots total

Integrated I/O Interfaces
(1) 9-pin 16550 UART serial port
(10) USB 2.0 ports (6 rear, 3 front, 1 via header)
- (2) Stacked USB 2.0 + (1) Firewire ports
- (2) Stacked USB 2.0 + (1) GbE LAN ports
- (2) Stacked USB 2.0 + (1) GbE LAN ports
(1) Stacked PS/2 mouse and keyboard ports
(1) Stacked Serial connector
(6) SATA-II connectors
(1) IDE and (1) floppy connectors

Integrated Audio
HD Audio (High-Definition Audio) supported
Realtek ALC262 controller (High Definition Audio)
Line-in, Line-out, Mic-in rear ports
SPDIF-out in rear
Front panel audio header (2 x 5 pin)
CD-in, Aux headers (4-pin configuration)

Integrated SAS Controller
LSI 1068E SAS controller
(8) SAS ports

Integrated Serial ATA Controller
(6) SATA-II ports at 3.0Gb/s per direction per ch.
Serial ATA II specification compliant
nVIDIA MediaShield supports for
RAID 0, 1, 0+1, 5, JBOD
HDD LED connector

System Management
CPU thermal & voltage monitor support
(6) 4-pin fan header (PWM & tachometer support)
(1) 2-pin chassis intrusion header
Watchdog timer support

Integrated LAN Controllers
(2) GbE via Marvell 88E1121
(2) RJ-45 ports with LEDs
Supports WOL and PXE

Integrated FireWire (1394a) Controller
TI TSB43AB22A 1394a PCI controller
1394a channel for rear (connector)
1394a channel for front (header)

BIOS
Phoenix BIOS on 8Mbit LPC Flash ROM
Supports ACPI (S0, S1, S3, S4, S5)
Serial Console Redirect
PXE via Ethernet, USB device boot
PnP, DMI 2.0, WfM 2.0 Power Management
User-configurable H/W monitoring
Auto-configuration of hard disk types
Multiple boot options
48-bit LBA support

Power
EPS 12V / SSI (24 + 8 + 4 pin) power connectors
support, onboard 4-phase VRD

Form Factor
SSI/Extended ATX footprint (12" x 13")

Regulatory
FCC Class B (Declaration of Conformity)
European Community CE (DoC)
