| Features |

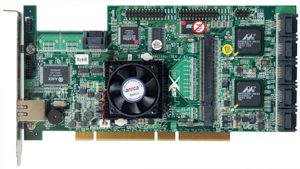

| The ARC-1130 Serial ATA ll RAID host adapter is a high-performance PCI-X bus to SATA ll Disk Array host adapter. The controller can provide up to 12 SATA ll peripheral devices on a single host adapter. When properly configured, the SATA host adapter can provide non-stop service with a high degree of fault tolerance through the use of RAID technology and advanced array management features. Intel IOP331 processor has integrated the RAID 6 engine inside. It offers Areca the advantage of reduced engineering and development costs, by having the New RAID6 function build-in and integrated part saves on component costs and internal PCI bandwidth.Intel emphasis on architectural commonality in IOPs allows Areca developers to capitalize on their existing code base. |
| Architecture |
| |
Intel 80331 I/O processor |
| |
64-bit/133MHz PCI-X Bus compatible |
| |
One SODIMM socket with default 256MB of DDR333 SDRAM with ECC protection, Upgrade to 1GB. An ECC or non-ECC SDRAM module using X8 or X16 devices (12/16/24 ports) |
| |
Write-through or write-back cache support |
| |
Support up to 12 Serial ATA drives |
| |
Multi-adapter support for large storage requirement |
| |
BIOS boot support for greater fault tolerance |
| |
BIOS PnP (plug and play) and BBS (BIOS boot specification) support |
| Features |
| |
RAID level 0, 1 (0+1), 3, 5, 6 (IF RAID 6 engine installed) and JBOD |
| |
Multiple RAID selection |
| |
Online Array roaming |
| |
Online RAID level/ stripe size migration |
| |
Online capacity expansion and RAID level migration simultaneously |
| |
Instant availability and background initialization |
| |
Automatic drive insertion / removal detection and rebuilding |
| |
Greater than 2TB per volume set |
| |
Support S.M.A.R.T, NCQ and OOB Staggered Spin-up capable drives |
| Monitors/Indicators |
| |
System status indication through HDD activity/fault connector, LCD Connector and alarm buzzer |
| |
SMTP support email notification |
| |
SNMP support for remote notification |
| |
I2C Enclosure management ready |
| RAID Management |
| |
Field-upgradeable firmware in flash ROM |
| In-Band Manager |
- Hot key boot-up McBIOS RAID manager via BIOS
- Support controller's API library for customer to write its own AP
- Support Command Line Interface (CLI)
- Browser-based management utility via ArcHttp Proxy Server
- Single Admin Portal (SAP) monitor utility
- Disk Stress Test (DST) utility for production in Windows
|
| Out-of-Band Manager |
- Firmware-embedded Browser-based RAID manager, SMTP manager, SNMP agent, and Telnet function via Ethernet port
- Support controller's API library for customer to write its own AP
- Push Button and LCD display panel
|
| Support |
Windows 2000/XP/Server 2003, Redhat Linux, SuSE Linux, FreeBSD |
| |
