Motherboards -> Intel Socket 775 -> MSI

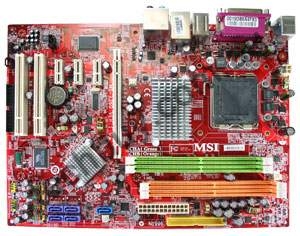

MSI P35 Neo-F Motherboard
LGA775, P35, 1333FSB, 4x DDR2-800, PCI-Ex16, SATA-II, GigLAN, 8Chl, ATX
Cart
Quantity:
Add MSI P35 Neo-F Motherboard
LGA775, P35, 1333FSB, 4x DDR2-800, PCI-Ex16, SATA-II, GigLAN, 8Chl, ATX to your wishlist
Click here to write a review on MSI P35 Neo-F Motherboard
LGA775, P35, 1333FSB, 4x DDR2-800, PCI-Ex16, SATA-II, GigLAN, 8Chl, ATX

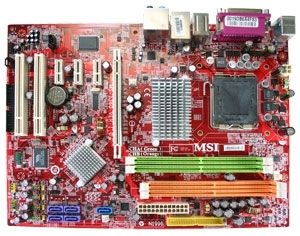

Large image is available
Product May Vary From Image

Our Price:
$118.75
RRP:$138.00
You Save:$19.25

Techbuy Part No:72329
Usually Ships: Order In Details
Brand:MSI Web Site
Manuf No:P35 NEO-F
 P35 NEOF
Shipping Weight:2 KG How Much?
Date Added:18/5/2007
Rating: Not Rated
Currency:AUD Convert

Product Description

P35 Neo-F


  12 in.(L) x 8.65 in.(W); ATX
  4 DIMMs w/ DDR2 800+ upto 8GB
  1 PCI-E 16X; 3 PCI-E 1X; 2 PCI; 12USB
  8 Ch. Audio; Gb LAN; SATA2; eSATA; ATA133
  Live Update; MSI Dual CoreCell; MSI Dual CoreCenter, DOT


MSI Part No: MS-7360-010


  MSI Reminds you :
Because of the limitations of chipset, this MB does not support Win98/ME.

  CPU

  Supports Socket 775 for Intel Core2 Extreme, Core2 Duo, Pentium 4 (Prescott, P4EE), Pentium D, Pentium XE/Celeron D processors in LGA 775 package
  Supports FSB 800/1066/1333 MHz
  Supoprts Intel 05B/05A and 04B/04A processors
  Supoprts EIST techonology
  Supports Intel Hyper-Threading (HT) Technology
  Supports Intel Quad Core Technology to 1333MHz and up

  Chipset

Intel P35 Chipset
  Supports FSB 800MHz, 1066MHz & 1333MHz
  Support Dual channel DDR2 667/800 memory interface up to 8GB
  Support Dual PCI Express 16X interface

Intel ICH9 Chipset
  Integrated Hi-Speed USB 2.0 controller, 480Mb/sec, 12ports
  4 Serial ATAII ports w/ transfer rate up to 3Gb/s
  PCI Master v 2.3, I/O ACPI 2.0 Compliant
  Integrated AHCI controller

  FSB

  Support FSB 800MHz, 1066MHz & 1333MHz

  Main Memory

  Supports 4 unbuffered DIMM of 1.8 Volt DDR2 SDRAM
  Supports up to 8GB memory size
  Support Dual Channel DDR2 667/800MHz and up (Intel P35 chipset supports up to DDR2-800 officially. For DDR2 800+, manually BIOS adjustment is needed)
    Due to the High Performance Memory design, motherboards or system configurations may or may not operate smoothly at the JEDEC (Joint Electron Device Engineering Council) standard settings (BIOS Default on the motherboard) such as DDR2 voltage, memory speeds and memory timing. Please confirm and adjust your memory setting in the BIOS accordingly for better system stability.
Example: Kingston HyperX DDR2-800 PC6400 operates at 2.0V, 4-4-4-12.
For more information about specification of high performance memory modules, please check with your Memory Manufactures for more details.

  Slots

  One PCI Express 16X slots(PCI Express Bus SPEC V1.0a compliant; supports CrossFire Technology)
  Three PCI Express 1X slot
  Two PCI 2.3 32-bit Master PCI Bus slots. (support 3.3v/5v PCI bus interface)

  On-Board IDE

One Ultra DMA 66/100/133 IDE controller integrated in Marvell 88SE6111
  Supports PIO, Bus Master operation modes
  Can connect up to 2 Ultra ATA 100 drives

Serial ATAII controller integrated in ICH9R and Marvell 88SE6111
  Up to 300MB/s transfer speed
  Can connect up to 5 Serial ATA II drives (4 internal drives from ICH9, 1 drive from 88SE6111)

  On-Board Peripherals


  1 floppy port supports 1 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes
  1 Serial port
  12 USB 2.0 ports (Rear x 4/** Front x 8)(** Front USB ports are supported by pin-out)
  1 6-in-1 audio jack (S/SPDIF out)
  2 PS/2 connectors
  1 LAN RJ45 connector

  Audio

High Definition link controller integrated in Intel ICH9 chip
  Audio codec Realtek 888
  Compliance with Azalia 1.0 spec
  Flexible 8 Ch. audio with jack sensing

  LAN

  Realtek RTL8111B PCI-Express Gb LAN Controller

  BIOS

  The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and expansion cards of the board automatically.
  The mainboard provides a Desktop Management Interface(DMI) function which records your mainboard specifications.

  Dimensions
    12in.(L) x 8.65in.(W) ATX Form Factor

  Mounting
    6 mounting holes


Product Warranty


1 Year Return to Base
