WAN Ports
|
Both Ethernet and 802.3 with MAx. Bit Rate 10/100 Mbps with auto cross-over function (MDI-X)
Connector RJ45 for 10/100 BaseT
|
|
LAN Ports
|
Both Ethernet and 802.3 with Max. Bit Rate 10/100Mbps with Auto cross-over function(MDI-X), 4 port switch
4 x RJ45 for 10/100BaseT
|
|
Antenna
|
2(One internal Inverted-F PCB antenna and one external dipole antenna)
Reverse-SMA antenna connector
|
|
USB Interface
|
2 x USB 2.0
|
|
EZS button
|
Push for 5 seconds to enter easy setup mode
|
|
Reset Button
|
Push for above 5 seconds to restore factory settings
|
|

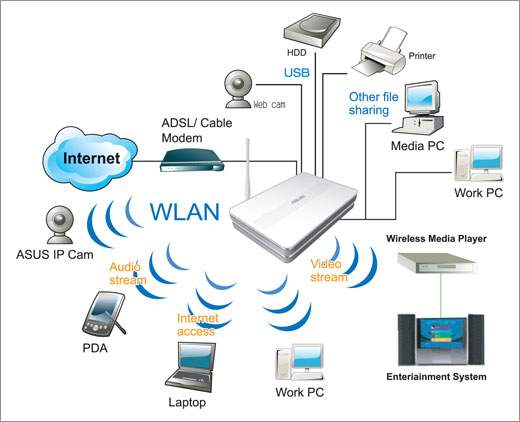

Applications
|
UPnP Media Server
Download Machine
|
|
Firewall
|
NAT and SPI
Can built extra one firewall to protect internet traffic and another one for wireless
|
|
DC Adapter
|
AC Input: 100V~240V(50~60HZ)
DC Output: +5V with max. 2.3A current
|
|
Emission
|
ETS
CE Mark
FCC Part 15
|
|
Operating Frequency
|
2.4 - 2.5 Ghz
|
|
Spreading
|
Direct Sequence Spread Spectrum
|
|
Modulation
|
OFDM, CCK, DQPSK, DBPSK
|
|
Data Rate
|
802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11b: 1, 2, 5.5, 11Mbps
|
|
Operation Channel
|
11 for N.America, 14 Japan, 13 Europe(ETSI), 3(non-overlapping)
|
|
Range
|
Indoor 130ft(40m), outdoor(LOS, Light-Of-Sight) 2000ft(600m) at 11Mbps
Indoor 80ft(25m), outdoor(LOS, Light-Of-Sight) 500ft(150m) at 54Mbps
The range may vary in different enviroments
|
|
Output Power
|
802.11g: 14~16dBm(at normal temp. range)
802.11b: 16~18dBm(at normal temp. range)
|
|
Sensitivity
|
-74~-75dBm@54Mbps
-87~-88dBm@11Mbps
-95~-97dBm@1Mbps
(at normal temp. range)
|
|
Encryption
|
64/128-bit WEP
TKIP, AES, WPA, WPA-PSK
|
|
Authentication
|
MAC address, 802.1x
|
|
Utilities
|
Device Discovery:
Discover WL500gP in network and help user to invoke Web Configuration page.
Firmware Restoration:
Restore firmware while system enters rescue mode.
Download Utility:
Help you to maintain and monitor BT/HTTP/FTP download task.
EZSetup:
Help you to setup wireless and internet connection easily.
|
