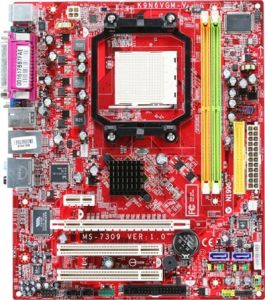

MSI K9N6SGM-V Motherboard
AM2, MCP61, 2x DDR2-800, PCI-Ex16 (8x); SATA-II, RAID, LAN, 8Chl, VGA, mATX

CPU

AMD  Athlon 64 X2, Athlon 64 and Sempron in the Socket AM2 package.
Please refer to CPU Support for compatible CPU; the above description is for reference only.

FSB

HyperTransport supporting speed up to 1GHz (2000MT/s)

Chipset

 NVIDIA MCP61 (P/S/V)



Main Memory

Supports Dual Channel DDR II 533/667/800
- 2 DDRII DIMMs (240pin / 1.8V)
- Supports a maximum memory size up to 2GB.



Slots

One PCI Express x16 slot. (K9N6PGM-FI/F)
One PCI Express x16 slot but only provides x8 bandwidth. (K9N6SGM-V)
One PCI Express x1 slot.
Two PCI slots (support 3.3v/5v PCI bus interface).



MSI Reminds You... K9N6SGM-V doesn't support ATI X550, X700, X800, X850 and X1800XL series graphic cards.



On-Board IDE

One IDE port by NVIDIA MCP61 (P/S/V)
- Supports Ultra DMA 66/100/133 mode
- Supports PIO, Bus Master operation mode
- Can connect up to two IDE devices

On-Board SATA

Two SATA II ports by NVIDIA MCP61 (P/S/V)
- Supports storage and data transfers at up to 300 MB/s

RAID Function

- SATA II 1~2 supports RAID 0, 1 mode by NVIDIAMCP61 (P/S/V)

MSI Reminds You... The RAID setup floppy disk is optional depending on the districts. You can download the files from the website to make the setup disk.



Audio

Chipset integrated by Realtek ALC861/883/888
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec



LAN

Supports 10/100 Fast Ethernet by Realtek 8201CL (K9N6SGM-V, K9N6VGM-V)
Supports 10/100/1000 Fast Ethernet by Realtek 8211BL-GR (K9N6PGM-FI/F)



IEEE1394

Chipset integrated by VIA VT6308P
- Transfer rate is up to 400Mbps



Internal I/O Connectors

- ATX 24-pin power connector
- 4-pin ATX 12V power connector
- CPU / System FAN connectors
- CD-in connector
- 1 x Floppy disk drive connector
- 2 x SATA II connectors
- 1 x ATA133 connectors
- 2 x USB 2.0 connector support additional 4 ports
- 1 x IEEE1394 connector support additional 1 ports (Optional)
- SPDIF-Out connector
- Front panel connector
- Front panel audio connector
- Chassis intrusion switch connector
- Clear CMOS Jumper

MSI Reminds You... The floppy disk cable will be optional.



Back Panel I/O Ports

- 1 x Parallel
- 1 x PS/2 Keyboard
- 1 x PS/2 Mouse
- 1 x VGA port
- 1 x IEEE1394 port (Optional)
- 1 x 6 in 1 audio jack
- 4 x USB 2.0
- 1 x RJ45 LAN Jack



Dimension

24.4cm(L) x 20.5cm(W) Micro-ATX Form Factor

Mounting

6 mounting holes.







MSI Reminds You... The accessories will probably be different according to the different selling areas of product models. For details of accessories, please refer to the descriptions on the product package.
