QNAP Systems TS-109 Pro NAS Server - 1-Bay SATA HDD, 1x Gigabit Port, 3x USB2.0, 1x eSATA

Network Storage is a must in modern working environment. To enhance the work efficiency, it becomes increasingly essential for offices to establish a network storage system for centralized file sharing, network printing, FTP upload/download, and data backup etc.. However, most small business and SOHO users are often helpless when facing the challenges of setting up a network storage system.

QNAP TS-109 Pro Turbo Station is an ultra-high-speed All-in-one NAS (Network Attached Storage) server designed for SMB/SOHO and professional users. With the easy installation, friendly web-based interface, and complete server feature sets, small office users can easily set up a network system for all sorts of storage applications without MIS help.

TS-109 Pro supports many valuable functions like File Server, FTP Server, Printer Server, etc. to satisfy the needs of SMB and SOHO users. Meanwhile, Windows ADS (Active Directory Service) is supported to help create an easyto-access environment and lower the maintenance cost by centralized management. With the dual support of MySQL and SQLite, SMB/ SOHO users can easily set up their own web and database server. Moreover, the editable php.ini support enables higher flexibility in creating web pages.
TS-109 Pro provides the most complete backup solution for secure data protection: Remote Replication, Auto-Sync/ Instant/ Schedule backup by professional NetBak Replicator, and unique Q-RAID 1 mirroring for real-time data protection.

QNAP TS-109 Pro Turbo Station supports large capacity SATA disk of up to 1TB and is extendable to 2TB by ultra-fast eSATA and USB 2.0 port. With its noise-free design and outstanding heat dissipation technology, TS-109 Pro can run 24x7 silently at low power consumption of only 14.4W. It is ideal choice for small business looking for a quiet and power-saving storage application.

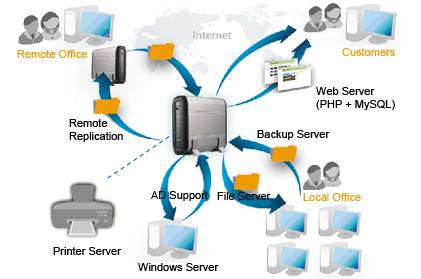

Powerful All-in-one NAS Server (12-in-1 Server!!!)

	Create your own File Server in the easiest way The basic purpose of File Server is to allow users to store and share files. Users often concern that their private data or confidential files would be accessed by others. TS-109 Pro allows server manager to create user ID and password, and define the authority and quota for each user. Thus personal data stored on TS-109 Pro are well protected.
	FTP Server simplifies the data sharing Having troubles with sending large files by e-mail due to the limited capacity? You can establish your own FTP server by using TS-109 Pro. You can manage the access authority of the FTP server and share your files with your friends or customers easily in a few steps.
	Backup Server with the most professional auto-backup software Data backup may sound time and effort consuming for most users. QNAP's Turbo Station now brings you the enterprise-class technology to make backup extremely simple and efficient! The most intelligent automatic backup software, NetBak Replicator, is provided for users to perform real-time synchronization or schedule backup from multiple PCs to TS-109 Pro.
	Enhanced data protection by optional RAID-1 mirroring Imagine, your server's hard drive crashes and you lose everything. What would you do to have it back? QNAP's exclusive Q-RAID 1 provides the ultra-high-level redundancy, which helps to keep a real-time synchronized mirror in your external USB or eSATA hard drive box. In case the main storage is damaged, the backup disk can be installed to TS-109 Pro to resume normal operation
	Remote Replication Remote Replication provides a superior level of data protection. Files can be backed up from TS-109 Pro to other QNAP NAS products in remote locations. Advanced options including data compression, block level incremental backup, and data synchronization save tremendous bandwidth and time for data backup.
	Establish your interactive Web Server Owning a web server is no more a dream! With the dual support of MySQL and SQLite, SMB/ SOHO users can easily set up their own web server. With the editable php.ini support, there is no need of going through all the hassles of setting up a web server. You can either develop programs by yourself or download a variety of open-sourced applications, such as online shops, forums, blogs, etc., over the Internet.
	MySQL Server TS-109 Pro is the most affordable choice as a standalone database server for system integrators. It can be applied flexibly in various deployments such as a database server of another web server in remote site or as an additional backup database server to achieve system redundancy.
	Share your printer resource by Printer Server You can share your printer device over the network without duplicating investment by simply connecting a USB printer to TS-109 Pro's USB port and enabling the printer sharing function.
	UPnP Media Server (with built-in TwonkyMedia Server) TS-109 Pro is a perfect media storage center and it works well with DLNA (Digital Living Network Alliance) compliant media players. You can play the photos and videos on TV. In addition, you can listen to your favorite music and Internet Radio on your Hi-Fi System.
	Multimedia Station for photo sharing Now you can share photos with your family and friends by TS-109 Pro. By uploading your photos to TS-109 Pro, the server automatically generates a web-based photo album with thumbnails and details, such as date, resolution, focal length, aperture, etc.. You can browse and share the digital photos in a convenient way!
	Enjoy continuous download independent of PC TS-109 Pro serves as a continuous BT Download ( BitTorrent ), FTP, or HTTP download center without turning on your PC. The great web-based interface allows you to manage the download tasks anytime, anywhere!
	Share your music by iTunes Server Music fans and Apple enthusiasts will be certainly rocked by the coolest music-sharing feature of TS-109 Pro! All your MP3 music can be collectively stored and streamed to Mac or Windows PC. Just turn on the iTunes program and enjoy all the music around your home network!

Support Windows ADS
With Windows ADS (Active Directory Service) support, you can deploy your Turbo Station in small business environment easily! It enables Windows domain users to easily access the shared data with the Active Directory authentication. This not only saves server manager's time and effort in creating duplicated groups and accounts, but also lowers the maintenance cost by centralized management.

Sharing files across Windows, Mac, Linux, and Unix.
TS-109 Pro is specially designed for different users to share the files across Windows, Mac, Linux, and Unix environment.

No fan design
The fan used inside a device is for the purpose of cooling system, no matter how quiet it is, the fan has to be activated for air ventilation. Somehow, it is inevitable to generate intermittent chirping noise which distracts your work or diminishes your enjoyment. TS-109 Pro adapts no fan design approach by using silver/ black aluminum case for thermal dissipation. It provides an absolute quiet working environment for you!!

One touch USB auto copy
When a USB device such as digital camera, digital camcorder, or pen drive is plugging into the front panel USB port, data in the USB flash disk or digital photos in your camera can be backed up to TS-109 Pro automatically by simply pressing the USB copy button.

Unique advanced HDD health scanning (HHS)
No idea how's the health status of your centralized storage hard disk? TS-109 Pro is embedded with HHS technology which lets you to perform checking disk and bad blocks scanning to prevent potential data loss.

Unique Web File Manager
TS-109 Pro provides unique Web File Manager function for you to easily download, upload and manage the files on the server by browser.

SSL Security (HTTPS)
You can access and manage your Turbo Station by using web browser securely. All connections between PC and NAS including user ID, password, files, download tasks, etc. are encrypted in SSL tunnels and are well protected.

Remote management of download tasks on multiple Turbo Stations
QGet is powerful P2P download management software provided with QNAP's Turbo Station series. QGet can be installed on any Windows computers for users to simultaneously manage BitTorrent, FTP and HTTP download tasks of multiple Turbo Station servers.

Network Recycle Bin
Can you imagine if you delete an important file on the NAS by mistake and lose it forever? You don't need to worry now! The files deleted from the network shares of the TS-109 Pro will be moved to a particular recycle bin folder. You can restore your data anytime in case of unintended file deletion.

Built-in DDNS support
TS-109 Pro supports dynamic DNS (DDNS). You can register a unique domain name from a DDNS service provider and assign it to your Turbo Station. There is no more need to remember a lengthy IP address!

Ultra-high-speed Performance

Thermal Performance

Low Power Consumption

Quiet and Noise-free Design

High-speed SoC

128MB DRAM, 8MB Flash

1 x 3.5" SATA I/II HDD, up to 1TB, expandable to 2TB via eSATA/USB (the HDD is not included)

1 x Gigabit RJ-45 Ethernet port

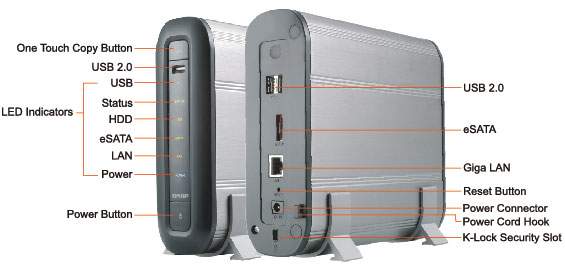

USB, Status, eSATA, HDD, LAN, Power

3 x USB 2.0, support USB printer,
disk, digital camera, pen drive, card reader, USB hub

1 x eSATA port

Intelligent USB auto copy button
Power Button
Reset Button

System warning

Portable desktop

210(D) x 60(W) x 182(H) mm

Net weight: 1.2Kg
Gross weight: 2.1Kg

Temperature 0~35C
Humidity 0~85% R.H

External power adapter, 12V, 36W, 100~240V

Sleep mode 6.6W
In operation 14.4W

Fanless, HDD sleep mode
Low power consumption & noise-free

Heat dissipation by aluminum case

K-Lock security slot for theft prevention
Power cord hook for kicking-off prevention
