SPACE-SAVING POWERLINE NETWORK EXTENDER KIT
Extends secure Powerline network connections to any electrical outlet
Reduces clutterone plug supplies both power and network connections

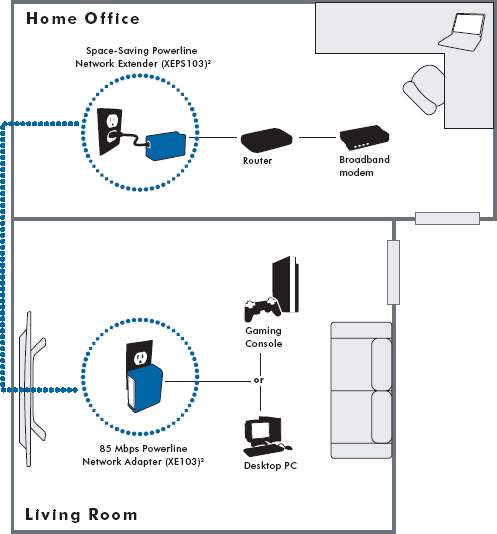

Ideal to power a NETGEAR wireless router and extend an Internet connection to a set-top box, game console or computer
Plug-and-Play Connection of a Powerline Network
- Extends secure Powerline network connections to any electrical outlet
- Reduces clutterone plug supplies both power and network connections
- Ideal to power a NETGEAR wireless router and extend an Internet connection to a set-top box, game console or computer
- Simple plug-and-play installation (kit contains everything you need)
Features
- Transforms any electrical outlet into an Ethernet network connection
- Connects to any routers Ethernet port and extends the network via powerline
- Space-saving 2-in-1 design uses only one power outlet when used with many NETGEAR routers
- Compatible with HomePlug 1.0 Powerline devices1

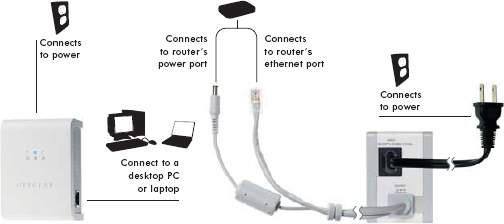

Plug and play connection of a Powerline network
Simple plug-and-play
The XEPSB103 Powerline Network Kit extends secure 14 and 85 mbps network connections to any electrical outlet in your home. The network extender connects to any routers Ethernet port and extends the network via Powerline. The space saving 2-in-1 design reduces clutter and uses only one power outlet when used with many Netgear routers. One plug supplies both power and network extension. The XEPSB103 is a simple plug-and-play installation and is compatible with HomePlug 1.0 Powerline devices.
Requires use of a NETGEAR XE102, XE103, XE104 or other HomePlug 1.0 compatible powerline device (one XE103 included).
XEPS103 and XE103 are compatible with NETGEARs XE104, XE103, XE102 and WGXB102 products. XEPS103 and XE103 are not compatible nor interoperable with NETGEARs HDX101, however they may coexist on the same network.
Physical Specifications
- Dimensions: 46 x 70 x 125 mm (1.81 x 2.76 x 4.9 in)s
Security
Network Protocol Compatibility
- 1 IEEE 802.3 (10Base-T), IEEE 802.3u (100Base-Tx), IEEE 802.3x (Full-duplex flow control)
Ports
- 10/100 Mbps Ethernet port
- Auto-Negotiation
- Auto Uplink
Environmental Specifications
- Operating Temperature: 040 C
- Operating Humidity: 10~90% RH (max)
- Storage Temperature: -2570 C
- Storage Humidity: 5~95% RH (max)
Power Supply
- Input: AC 100-240V
- Output: DC 12V/1A
Status LEDs
- Power LED
- PowerLine Link/ACT LED
- Ethernet Link/ACT LED
Functions
- Security Network ID
- Diagnostics
HomePlug
- HomePlug v1.0 compatible
- Data Transfer Rate: Up to 85 Mbps, real throughput greater than 25 Mbps
- Frequency Band: 4.3~20.9MHz
- Modulation: OFDM symble modulation
Warranty
Package Contents
- Space-Saving Powerline Network Extender (XEPS103)
- 85 Mbps Powerline Network Adapter (XE103)
- Ethernet Cable
- Power Cord
- Installation Guide
- Setup CD
- Warranty Card
- Support and Information Card
