ASUS Arctic Square - LGA775/AM2, 2300rpm, 36.5CFM

IMG 1 of 1
No Longer Available
Part Number:
74050
(?) Brand:
ASUS Web Site
Manuf No:
ARCTIC-SQUARE
ARCTICSQUARE
Shipping Weight:
1 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
ARCTICSQUARE, ARCTIC-SQUARE

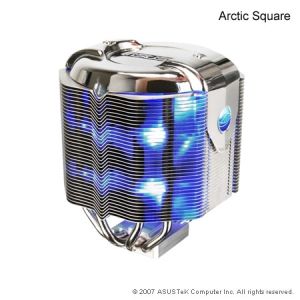

Arctic Square
Extremely Cool with Compact Size
CPU Support
Intel Core2 Extreme / Intel Core2 Quad
Intel Core2 Duo / Pentium processor family
AMD Athlon 64 X2/ FX
AMD Athlon 64/ Sempron
Fan Speed 2300 rpm 10% with PWM control
Material Cu. Base + Al. Fin + 4 Copper Heat Pipes


Extremely Cool with Compact Size

Powerful Performance for Overclocking
Copper base with 4 heat pipes provide excellent heat dissipation, efficiently transfer heat to the fins and maintain the temperature for high-performance computing

Compact and Reliable
The Arctic Square incorporated with "Ladder-Shaped" fins on both sides to enlarge heat exchange area for effective cooling and remain its compact design as well

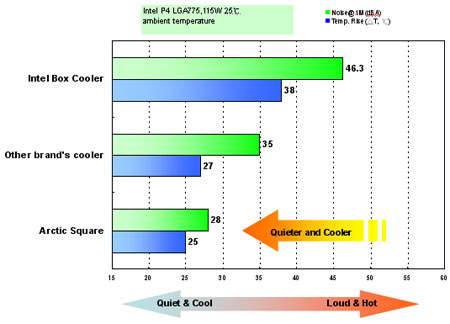

Balance between Performance and Acoustic
PWM function automatically adjusts fan speed according to CPU temperature and delivers a quiet cooling operation

Multiple Application
Universal retention module designed for Intel LGA775 and AMD K8 939/940/AM2 platforms support

Inner Fan Technology
The fan positioned inside the frame for maximum airflow and VRM shield guides cool air to critical components around the CPU for stable operation

Copper Base + 4 heat pipes - Better heat transfer

Double Sides Ladder-Shaped Fins - Effective Heat Dissipation
Inner Fan Design - Guide Cool Air to VRM
Blue LED Fan - Stylish Your PC

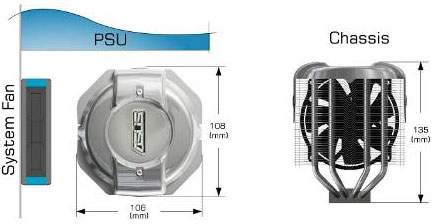

Installation Requirement





Specification
CPU Support
Intel Core2 Extreme / Intel Core2 Quad
Intel Core2 Duo / Pentium processor family
AMD Athlon 64 X2/ FX
AMD Athlon 64/ Sempron
Clip Type
Universal Clip
Net Weight(g)
666g
Heatsink
Dimension (mm)
108 x 106 x 135
Material
Copper Base + Aluminum Fin + 4 Copper Heat Pipes
Fan
Dimension (mm)
92 x 92 x 25
Bearing Type
Vapo (Long Life Sleeve)
Speed
2300 rpm 10% with PWM control
Max. Airflow
36.5 CFM
Max. Air Pressure
2.8 mm-H2O
Certification
CE, TUV, UL

* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
* PCB color and bundled software versions are subject to change without notice.
* Brand and product names mentioned are trademarks of their respective companies.

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year

Full manufacturers warranty details are available at the manufacturers (ASUS) web site.
