KL9116MA | ATEN Altusen LCD Console KVM - 17" LCD Display, Dual Rail

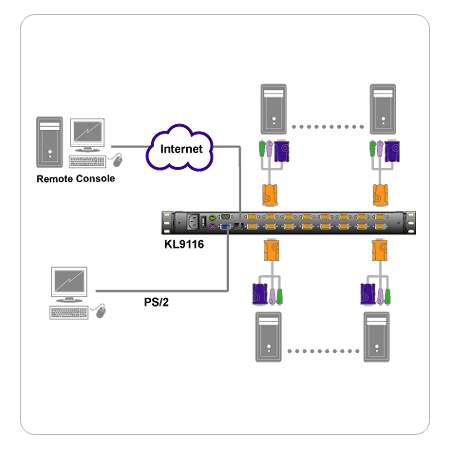

The KL9116 is an IP-based KVM control unit that allows both local and remote operators to monitor and access multiple computers from multiple consoles. A single KL9116 can control up to 16 computers and can be accessed from any computer on the Net. The KL9116 features independently retractable 17" LCD monitor and keyboard with built-in touchpad. To maximize space in your data center the keyboard "hides away" when not in use, while the thin profile LCD monitor provides continuous monitoring of computers.

• Integrated KVM console with 17" LCD monitor - in a Hideaway housing.
• Space saving technology with dual bus function support1 remote console (one bus) and two local consoles (one bus) control up to 16 computers.
• Remotely access computers via the LAN,WAN,or Internet-control your installation when and where you want.
• Dual-bus:one local and one remote user can simultaneously control separate ports.
• Extra console port-manage computers in the LCD KVM switch from an external console (monitor, PS/2 keyboard, and PS/2 mouse).
• Supports external PS/2 mouse.
• Supports dedicated OSD and OSD Toolbar invocation keys.
• Dual slide-LCD Monitor component can slide independently of the keyboard/touchpad component.
• Console lock-enables the console drawer to remain securely locked away in position when not in use.
• Internet browser access,Windows Client and Java Client provided, Java Client works with all operating systems.
• Graphical OSD and graphical toolbars for convenient,user-friendly operation.
• Up to 64 user accounts - up to 32 concurrent remote logins.
• Panel Array Mode - view all 16 ports at the same time.
• Message board feature allows logged in users to communicate with each other and allows a remote user to take exclusive control of the KVM functions.
• Windows-based Log Server.
• Remote power control for attached Power over the Net devices.
• Three level login security: Administrator, User,and Select.
• Advanced security features include password protection and advanced encryption technologies-1024 bit RSA, 256 bit AES,56 bit DES, and 128 bit SSL.
• RADIUS server support.
• Flash firmware upgradable over network connection.
• Ports can be set to Exclusive, Occupy and Share
• Network Interfaces: TCP/IP,HTTP,HTTPS,UDP,RADIUS,DHCP,SSL, ARP,DNS,10Base-T/100Base-TX,auto sense, Ping.
• High video resolution: up to 1280x1024@75Hz (17"LCD); 1600x1200@60Hz (Remote).
