Product DetailsGo BackEmail to FriendPrint
Motherboards -> Intel Socket 775 -> ASUS

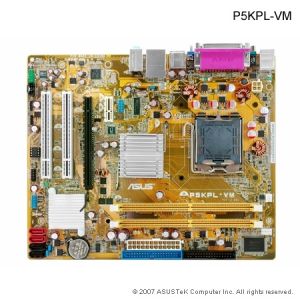

ASUS P5KPL-VM Motherboard
LGA775, G31, 1333FSB, 2x DDR2-800, PCI-Ex16, 4x SATA-II, GigLAN, 6Chl, VGA, mATX
Cart
Quantity:
Add ASUS P5KPL-VM Motherboard
LGA775, G31, 1333FSB, 2x DDR2-800, PCI-Ex16, 4x SATA-II, GigLAN, 6Chl, VGA, mATX to your wishlist
Click here to write a review on ASUS P5KPL-VM Motherboard
LGA775, G31, 1333FSB, 2x DDR2-800, PCI-Ex16, 4x SATA-II, GigLAN, 6Chl, VGA, mATX

Large image is available
Product May Vary From Image

Our Price:
$96.80
RRP:$149.05
You Save:$52.25

Techbuy Part No:75918
Usually Ships: 1-3 Days Details
Brand:ASUS Web Site
Manuf No:P5KPL-VM
 P5KPLVM
Shipping Weight:2 KG How Much?
Date Added:31/8/2007
Rating: Not Rated
Currency:AUD Convert

Product Description
For recommended Corsair memory for this motherboard, click here: Recommended Memory

P5KPL-VM
Valuable Intel G31 uATX solution with Intel latest 45nm Processor Ready!
- Intel LGA775 Platform
- Intel Core2 Quad Ready
- Intel 45nm CPU Ready
- FSB 1333/1066/800 MHz
- Intel G31/ICH7
- Dual channel DDR2 800/667
- 6-channel High Definition Audio
- EZ Flash2 & CrashFree BIOS3


Valuable Intel G31 uATX solution with Intel latest 45nm Processor Ready!

P5KPL-VM with Intel G31 chipset inside supports Intel Quad-core CPU and features 1333/1066/800MHz FSB, PCI Express x 16, Serial ATA interface, high performance integrated graphics engine, dual-channel DDR2 800/667 memory, and HD Audio CODEC. Users can experience faster graphics performance and higher video quality today. P5KPL-VM is the most affordable all-in-one solution platform for Intel Core2 Processor with Intel G31 chipset inside.
Intel Quad Core Processor Ready
This motherboard supports the latest Intel Quad-core processors in LGA775 package. It also can support Intel next generation 45nm Multi-Core CPU. Its excellent for multi-tasking, multi-media and enthusiastic gamers with 1333/1066/800 MHz FSB. Intel Quad-core is one of the most powerful CPU in the world.
LGA775 Intel Core2 Processor Ready
This motherboard supports the latest Intel Core2 processors in LGA775 package. With new Intel Core microarchitecture technology and 1333/1066/800 MHz Intel Core2 processor is one of the most powerful and energy efficient CPU in the world.
Intel G31 Chipset
The Intel G31 Express Chipset boosts your gaming and multimedia experience with the integrated graphics engine Intel Graphics Media Accelerator 3100. It supports 1066MHz FSB (front-side-bus), and delivers breakthrough advances in 3D and 2D graphics; and video capabilities. This integrated chipset is able to meet the changing display requirements of visually rich applications and features the Intel Clear Video Technology - which trailblazes new standards in high-definition video, crisp imaging, and accurate color control.
Intel Graphics Media Accelerator 3100
The Intel Graphics engine has new capabilities that provide a significant increase in graphics performance. 3D enhancements enable greater flexibility and scalability and improved realism with support for Microsoft DirectX* 9.0c Shader Model 2.0, OpenGL* 1.5. Intel Graphics also support the highest levels of the Windows Vista* Aero experience.


Dual-Channel DDR2 800
Dual-channel DDR2 technology doubles the bandwidth of your system memory and hence boost the system performance to out perform any memory existing solutions in the market.


PCI Express Architecture
PCI Express is the latest I/O interconnect technology that will replace the existing PCI. With a bus bandwidth 4 times higher than that of AGP 8X interface, PCI Express x16 bus performs much better than AGP 8X in applications such as 3D gaming. PCI Express x1 and x4 also outperforms PCI interface with its exceptional high bandwidth. The high speed PCI Express interface creates new usages on desktop PCs e.g., Gigabit LAN, 1394b, and high-speed RAID systems.
High Definition Audio
Enjoy high-end sound system on your PC! The onboard 6-channel HD audio (High Definition Audio, previously codenamed Azalia) CODEC enables high-quality 192KHz/24-bit audio output, jack-sensing feature, retasking functions and multi-streaming technology that simultaneously sends different audio streams to different destinations. You can now talk to your partners on the headphone while playing a multi-channel network games. All of these are done on one computer.


SATA 3Gb/s
Serial ATA3.0Gb/s is the next generation ATA specification that provides scalable performance foroday and tomorrow. With up to 300MB/s data transfer rate, Serial ATA II is faster than current Parallel ATA, while providing 100% software compatibility.


Max. 8 USB 2.0 ports supports
USB 2.0 is the latest connectivity standard for next generation components and peripherals. Backwards compatible with current USB 1.1 peripherals, USB 2.0 delivers transfer speeds up to 40 times faster at 480Mb/s, for easy connectivity and ultra-fast data transfers.
EZ Flash2
Simply update BIOS from a USB flash disk before entering the OS
EZ Flash is a user-friendly BIOS update utility. Simply press the pre-defined hotkey to launch this tool and update BIOS from a floppy disk before entering the OS.


CrashFree BIOS 3
Simply restore corrupted BIOS data from USB flash disk
The ASUS CrashFree BIOS 3 allows users to restore corrupted BIOS data from a USB flash disk containing the BIOS file. This utility saves users the cost and hassle of buying a replacement BIOS chip.
MyLogo2
Personalize your system with customizable boot logo
You can convert your favorite photo into a 256-color boot logo for a more colorful and vivid image on your screen.


Compliance with the RoHS Directive
The motherboard and its packaging comply with the European Unions Restriction on the use of Hazardous Substances (RoHS). This is in line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers health while minimizing the impact on the environment.




Specification
CPU
LGA775 socket for Intel Core2 Quad / Core2 Extreme / Core2 Duo / Pentium D / Pentium 4 / Celeron Processors
Compatible with Intel 05B/05A/06 processors
Support Intel next generation 45nm CPU
Intel Hyper-Threading Technology ready
* Refer to www.asus.com for Intel CPU support list
Chipset
Intel G31 / ICH7
Front Side Bus
1333/1066/800 MHz
Memory
2 x DIMM, max. 4GB, DDR2 800/667 MHz, non-ECC, un-buffered memory
Dual channel memory architecture
* Refer to www.asus.com or user manual for Memory QVL (Qualify Vendor List)
Expansion Slots
1 x PCI-E x16
1 x PCI-E x1
2 x PCI
VGA
Intel Graphics Media Accelerator (Intel GMA 3100) integrated
Max. resolution:2048x1536X32bpp, Horizontal:127.5KHz Vertical:85Hz
Storage
Southbridge:
- 1 x UltraDMA 100/66/33
- 4 x Serial ATA 3Gb/s
LAN
PCIe Gb LAN
Audio
Realtek ALC662, 6-CH High-Definition Audio CODEC
USB
8 x USB 2.0 ports (4 ports at mid-board, 4 ports at back panel)
Special Features
ASUS CrashFree BIOS 3
ASUS Q-Fan
ASUS EZ Flash 2
ASUS MyLogo 2

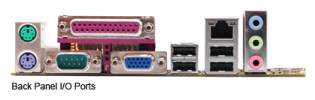

Back Panel I/O Ports
1 x PS/2 Keyboard
1 x PS/2 Mouse
1 x VGA
1 x COM
1 x Parallel port
1 x LAN (RJ45) port
4 x USB 2.0
6 Channel Audio I/O
Internal I/O Connectors
2 x USB connectors support additional 4 USB ports
1 x internal speaker connector
1 x CPU/ Chassis/Power Fan connector
Front panel High Definition audio connector
1 x S/PDIF Out connector
Chassis Intrusion connector
CD audio in
24-pin EPS 12V Power connector
4-pin ATX 12V Power connector
System Panel
BIOS
8Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5
Manageability
WOL,PXE,RPL,WOR by Ring,PME Wake Up
O/S Compatibility
Windows XP / Vista
Accessories
1 x UltraDMA 100/66/33 cable
1 x Floppy disk drive cable
1 x SATA cable
1 x SATA Power cable
I/O Shield
User's manual
Support CD
Drivers
ASUS PC Probe II
ASUS Update
Anti-virus software
Form Factor
uATX Form Factor, 9.6" x 8" (24.5cm x 20.3cm)

* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
* PCB color and bundled software versions are subject to change without notice.
* Brand and product names mentioned are trademarks of their respective companies.


Product Warranty


3 Years
