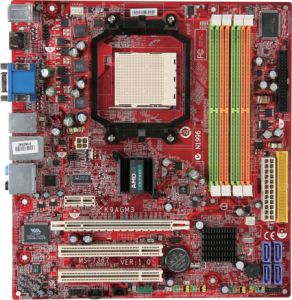

MSI K9AGM3-FIH
AM2, 690G, 4x DDR2-800, PCI-Ex16, 4x SATA-II, RAID, GigLAN, 8Chl, Firewire, HDMI Ready, mATX

CPU

AMD  Athlon 64 X2, Athlon 64, and Sempron in the Socket AM2 package.
Please refer to CPU Support for compatible CPU; the above description is for reference only.

FSB

HyperTransport supporting speed up to 1GHz (2000MT/s)

Chipset

AMD  690G/690V and SB600 Chipset

Main Memory

Supports dual channelDDR2 533/667/800
-4 DDR2 DIMMs (240pin / 1.8V)
- Supports a maximum memory size up to 8GB.

Slots

1 PCI Express x16 slot
1 PCI Express x1 slot
2 PCI slots, support 3.3V/ 5V PCI bus Interface.

On-Board IDE

One IDE port by AMD SB600
- Supports Ultra DMA 66/100/133 mode
- Supports PIO, Bus Master operation mode
- Can connect up to two IDE devices

On-Board SATA

4 SATA II ports by AMD SB600
- Supports storage and data transfers at up to 300 MB/s

RAID Function

- SATA II 1~4 supports RAID 0, 1 and 0+1 mode by AMD SB600

Audio

Chipset integrated by Realtek ALC883/ALC888
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec

LAN

Supports 10/100 Fast Ethernet by Realtek 8101E
Supports 10/100/1000 Fast Ethernet by Realtek 8111B

IEEE1394

Chipset integrated by VIA VT6308P
- Transfer rate is up to 400Mbps

Internal I/O Connectors

- ATX 24-pin power connector
- ATX 4-pin 12V CPU power connector
- CPU / System FAN connectors
- Chassis intrusion switch connector
- Front panel audio connector
- Front panel connector
- Clear CMOS jumper
- 1x CD-in connector
- 1x SPDIF out connector (optional)
- 1x Serial port connector (optional)
- 1 x TV-out connector (optional)
- 1 x IEEE1394 connector support additional 1 port (optional)
- 3 x USB 2.0 connector support additional 6 ports
- 1 x Floppy disk drive connector
- 4 x Serial ATA II connectors
- 1 x ATA133 connector

Back Panel I/O Ports

- 1 x HDMI port (optional for AMD 690G)
- 1 x DVI-D port (optional for AMD 690G)
- 1 x PS/2 keyboard
- 1 x PS/2 mouse
- 1 x IEEE1394 Port (optional)
-  1 x 6 in 1 audio jack
- 4 x USB 2.0 ports
- 1 x RJ45 LAN jack
- 1 x Graphics Card port

Dimension

24.4cm(L) x 23.0cm(W) Micro-ATX Form Factor

Mounting

6 mounting holes.
