IMG 1 of 1
No Longer Available

Part Number:
77439
(?) Brand:
Manuf No:
WL-566gM
WL566gM
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
All stock codes associated to this product
WL-566gM, WL566gM
WL-566gM
Actual throughput up to 100Mbps
  • 8X the speed of standard 802.11g devices
  • 8X the coverage of standard 802.11g devices
  • Faster than wired Ethernet
  • Superior reception
  • Reaches all corners of any environment


240 MIMO Technology actual throughput up to 100Mbps!
MIMO (Multiple Input Multiple Output)


The WL-566gM/106gM utilizes 240 MIMO Technology to harness multiple signal transmission pathways, created as the transmitted signal reflects off and refracts around objects causing what was once considered interference.

With clever signal processing, the WL-566gM/106gM leveraged that interference to boost a WLAN's range and data transfer rate.

Cut the wires! Enjoy wireless connectivity @ wired speeds of actual throughput up to 100Mbps. ASUS 240 MIMO provides 8X coverage & speed compared to standard G.

Benefits of 240 MIMO

  1. Better Sensitivity: 8X signal coverage of 802.11g standard.
  2. Maximum throughput: Boost data transfer speed up to 100Mbps
  3. Cut wire and Enjoy wireless

*240 MIMO support is also required on the client side to achieve maximum performance.

Compatibility Fully compatible with IEEE 802.11b/g

Partner with 240 MIMO Technology routers for speed and range enhancement
The WL-106gM, with 240MIMO technology, optimizes signal range and data transfer speed through connection with 240MIMO-capable wireless routers (WL-566gM).

WMM (Wi-Fi Multimedia)
WWM provides multimedia enhancements for Wi-Fi networks to improve sharing of audio, video, and voice contents.

ASUS offers the wireless adaptors with such support:
WL-106gM

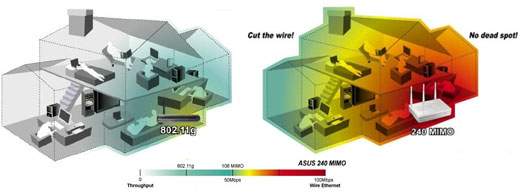

8X the speed and coverage
With "240 MIMO" technology, the WL-566gM boosts wireless transfer speeds by 8X compared with those of standard 802.11g devices. (240 MIMO support is also required on the client side for maximum performance. ASUS offers such adaptors: WL-106gM). Note: Actual throughput will vary depending on the wireless environment and other parameters.
100% Interoperable
ASUS WL-566gM supports MIMO and a/b/g traffic on the same network, at the same time

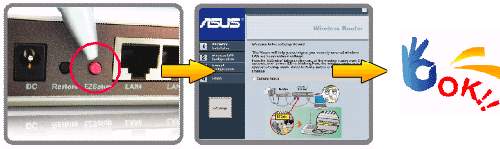

EZSetup: Set up wireless LAN in 2 easy steps

The WL-566gM automatically registers various wireless devices in seconds with just a press of the EZSetup button and through the EZSetup Wizard.
Step 1:
Push the EZSetup button on the back of the wireless router over 3 seconds until power LED is blinking.
Step 2:
Press EZSetup icon in this wizard utility
Step 3:
The wireless router is in a special EZSetup mode, and after 30 seconds the wireless client setting is restored in router.

Windows XP native support for WLAN functions

  • Rich add-on features and utilities
  • Mobile control center: Integrate all tools and indicate real-time status on system tray.
  • Wireless setting: Diagnose and configure wireless network settings with the online trouble-shooting feature.
  • Mobile manager: Support automatic roaming and network reconfiguration between different locations.
  • Site survey: Easily explore wireless network topology.
  • 1-touch setup wizard: High-speed wireless network is just a few clicks away.




Specification
LAN Ports
WAN: 1 x RJ45 for 10/100 BaseT
LAN: 4 x RJ45 for 10/100 BaseT
Support Ethernet and 802.3 with max. bit rate 10/100Mbps and auto cross-over function(MDI-X)
Antenna
3 x external dipole antenna
Output Power
14~16dBm(g mode), 19~20dBm(b mode)
Power
AC input: 100V~240V(50~60HZ)
DC output: 5V with max. 2A current
Reset Button
Push for 5 seconds to restore factory setting
Size
214mm(L)*175mm(W)*36mm(H)
Weight
500g excluding power supply
Operating Frequency
2.4 - 2.5GHz
Data Rate
MIMO: ~240Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11b: 1, 2, 5.5, 11Mbps
Management
Smart Wizard browser-based administration
Remote management
DHCP server, WAN DHCP client
Enable/disable WAN ping
DNS Proxy, PPPoE, PPTP login client support, Big Pond login client support
MAC address cloning
NTP client
UpnP
Save/restore configuration files
Upgrades via web browser
Firmware restoration
Device discovery
Security
Firewall: NAT and SPI(Stateful Packet Inspection), intrusion detection including logging

Logging: Dropped packet, security event, Syslog

Filtering: Port, IP packet, URL Keyword, MAC address

Encryption/Authentication: WPA2, TKIP, AES WPA-PSK
64/128-bit WEP

* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
* PCB color and bundled software versions are subject to change without notice.
* Brand and product names mentioned are trademarks of their respective companies.

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers (ASUS) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
