ASUS DRW-2014L1T DVD Burner - SATA
  • 20xDVD±R, 8xDVD±R DL, 8xDVD+RW, 6xDVD-RW, Lightscribe - Dual Panels

IMG 1 of 1
No Longer Available
Part Number:
77495
(?) Brand:
ASUS Web Site
Manuf No:
DRW-2014L1T
DRW2014L1T
Shipping Weight:
1.5 KG (Includes product packaging)
Estimate Shipping
Date Added:
29/10/2007
Details Files Images & Video
All stock codes associated to this product
DRW2014L1T, DRW-2014L1T
DRW-2014L1T
LightScribe Drive enables personalized and professional labels

The ASUS DRW-2014L1T is the Light Scribe drive enables CD images and disc labels to be burned onto disc using the same drive that is used to burn the data. Make a label wherever and whenever you want with your PC or burner. Simple, Compatible and Flexible




The ASUS DRW-2014L1T is the Light Scribe drive enables CD images and disc labels to be burned onto disc using the same drive that is used to burn the data. Make a label wherever and whenever you want with your PC or burner. Simple, Compatible and Flexible

Multi Function: (X MULTI+LightScribe)
Max. 20X DVDR/ 8X DVD+RW/ 6X DVD-RW/ 8X DVDR (DL)
Max. 48X CD-R/ 32X CD-RW
Max. 16X DVD-ROM/ 48X CD-ROM
Max: 14X DVD-RAM Write/12X DVD-RAM Read

Over-Speed Burning
Burn 2.4X DVDR (Double Layer) Disc at 8X Speed

FlextraLink Buffer Underrun Errors Prevention Technology
Built-in FlextraLink prevents users from buffer underrun problems and eliminates the creation of unusable discs. Throughout the recording process, FlextraLink consistently monitors the data buffer status to ensure best recording quality under high-speed operation.

FlextraSpeed Optimal Writing Speed Adjustment Technology
Built-in FlextraSpeed and AI Auto Speed Adjustment Tech. enhance accuracy and reliability when reading / writing / re-writing across a broad range of certified media in different formats. FlextraSpeed continuously monitors the recording media and sets the optimal writing speeds to ensure best recording quality. The ASUS proprietary FlextraSpeed occupies minimal system resources so the PC remains full operational and available for other applications even during recording process.

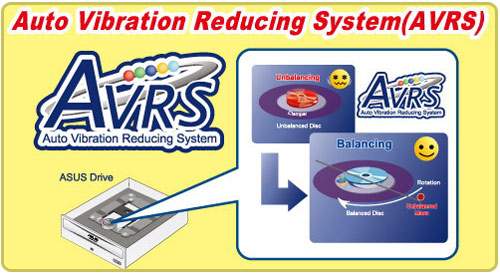

Auto Vibration Reducing System (AVRS)
The AVRS technology is designed to minimize the vibration caused by the spindle motor and resonance between components as well as the drive and PC cases. AVRS is designed to reduce vibration and noise induced by unbalanced mass of rotating machinery. With AVRS, ASUS DRW-2014L1T provides high readability and playability.

Compatible with a Wide Range of Disc Formats

Operates on Horizontal or Vertical Mounting

ASUS Unique Live Firmware Update Tool

Bundle Burning Software

Windows XP/ NT/2000/VISTA Supported



Specification
Write Speed
DVD-R:20X, 16X, 12X, 10x,8X, 4X,2x
DVD-RW:6X, 4X, 2X, 1X
DVD+R:20X, 16x, 12X, 10x, 8X, 4X,
DVD+RW:8X, 6X, 4X, 2.4X
DVD+R(DL):8X,6X, 4X, 2.4X
DVD-R (DL):8X,6X, 4X,
CD-R:48X,40X, 32X, 16X, 10X, 4X
CD-RW:32X, 24X, 16X, 10X, 4X
DVD-RAM:14X, 12X,5X
Read Speed
DVD-ROM (Single):16X max. (CAV)
DVD-ROM (Dual):8X max. (CAV)
CD-ROM:48X max. (CAV)
DVD-RAM:12X
DVD+R (DL):8X
DVD-R(DL):8X
CD-R:40X
CD-RW:40X
Access time
DVD: 140 ms and CD: 150 ms
Writing Mode
DVD-R & DVD-R (DL): DAO, Incremental Recording (Multi-Border Recording)
DVD-RW: Restricted Overwriting, DAO, Incremental Recording (Multi-Border Recording)
DVD+R & DVD+R (DL): Sequential Recording (Multi-Session Recording)
DVD+RW: Random Recording
CD-R/RW: DAO, TAO, SAO, Packet Recording (Multi-Session Recording)
O/S Compatibility
Windows XP/NT/2000/VISTA
Interface
SATA
Data Buffer
2 MB
Bundle Software
Latest Burning Software
Disc Formats
Write: DVD+/-R, DVD+/-RW, CD-R, CD-RW
Read: DVD-ROM, DVDR/RW, Photo CD, Video CD, CD-DA, CD-Extra, CD-Text, CD-R, CD-RW, DVD-RAM
Disc Diameters
12 cm and 8 cm
MTBF
60,000 Power On Hours
Operating Duty Cycle (Read) 20% POH
Operating Duty Cycle (Write) 2% POH
MTTR
30 Minutes
Mounting Orientation
Vertical and Horizontal (+5 ~ -5)
Temperature
Operating: 5 to 45
Storage: -20 to 60
Dimension(WxHxD)
148x42.3x172.4mm
Weight
690 g
Power Requirements
DC +5V 5%, DC +12V 10%
Humidity
Operating: 5% ~ 85% (Non-condensing)
Storage: 5% ~ 90% (Non-condensing)
Vibration
Operating: 0.2 G peak (at 10~500 Hz)
Storage: 1.5 G peak (at 10~500 Hz)

* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
* PCB color and bundled software versions are subject to change without notice.
* Brand and product names mentioned are trademarks of their respective companies.
