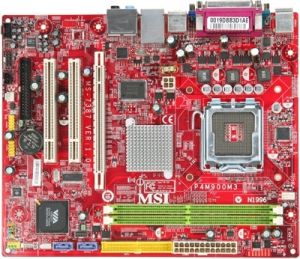

MSI P4M900M3-L Motherboard
LGA775, P4M900, 1066FSB, 2x DDR2-667, PCI-Ex16, SATA-II, LAN, 8Chl, VGA, mATX

CPU

Supports Socket 775 for Intel P4 3xx/ 5xx/ 6xx/ Pentium D, Celeron D, Conroe, Core 2 Duo processors.
Supports FSB 1066/800/533MHz.
* we recommend to use processors with 95W power consumption.
Please refer to CPU Support for compatible CPU; the above description is for reference only.





Chipset

VIA P4M900 Chipset
- Supports P4 processor FSB 1066/800/533MHz
- Supports DDR2 667/533/400 memory

VIA VT8237S Chipset
- Ultra DMA 66/100/133 master mode.
- ACPI & PC2001 compliant enhanced power management.
- Supports USB 2.0 up to4 ports.



Main Memory

Supports two unbuffered 240-pin DIMM of 1.8 Volt DDR2 SDRAM
Supports up to 4GB memory size.
Supports DDR2 400/533/667 memory interface.



Slots

One PCI Express x 16 slot .
Two PCI 2.2 32-bit PCI bus slots (support 3.3V/5V PCI bus interface).





On-Board IDE An IDE controller on the VTT8237S chipset provides IDE HDD/CD-ROM with PIO, Bus Master and Ultra DMA 133/100/66 operation modes.

Serial ATA II controller integrated in VT8237S.
- Up to 3GB/sec transfer rate.

MSI Reminds You... The RAID setup floppy disk is optional depending on the districts. You can download the files from the website to make the setup disk.



Audio

Chip integrated by Realtek ALC888
-HD 7.1-channel audio



LAN

Supports 10/100 Fast Ethernet by Realtek RTL8201CL / RTL8111B



Internal I/O Connectors

- Front panel audio connector
- Front panel connectors
- 1 x Floppy disk drive connector
-1 x Ultra DMA 133 IDE device connectors
- 2 x Serial ATA device connectors

MSI Reminds You... The floppy disk cable will be optional.



Back Panel I/O Ports

- 1 x PS/2 Keyboard
- 1 x PS/2 Mouse
- 1 x Serial port (COM 1)
- 1 x Parallel (SPP / EPP / ECP)
-1 xD-Sub VGA port
- 4 x USB 2.0
- 1 x RJ45 LAN jack
- 1 x Audio I/O (6 in 1)



BIOS

The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices
and expansion cards of the board automatically.
The mainboard provides a Desktop Management Interface (DMI) function which records
your mainboard specifications.



Dimension

24.4 cm(L) x 20.0 cm(W) M-ATX Form Factor

Mounting

6 mounting holes.
