Advanced Technology, High Performance
Enthusiasts looking for the optimal in price performance PSU technology will find the Corsair TX650W/TX750W series of PSUs will meet even the most demanding of required specifications.

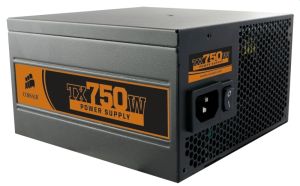

The Corsair TX650W/TX750W power supplies are engineered using advanced technology and components typically found with high performance power supplies. With design features such as a dedicated, single +12V rail offer the maximum compatibility with the latest system components. Energy efficient circuitry capable of delivering greater than 80% efficiency ratings across 20%, 50%, and 100% load conditions make the TX family of PSUs ideal for the value/quality conscious enthusiast. With a large 140mm (120mm on TX650W) diameter temperature-controlled fan that is ultra quiet, yet still more than sufficient to cool the internals of the system, reliability and stability are no longer worries for the gamer, overclocker or enthusiast and high-end system builder.
Corsair TX Series Features:
- Supports ATX12V v2.2 standard and older ATX12V 2.01 spec
- Ultra-quiet 120mm (140mm on TX750W) double ball-bearing fan delivers excellent airflow
- 80%+ energy efficiency at 20%, 50% and 100% load condition for less heat generation and lower energy bill
- 99% Active Power Factor Correction provides clean and reliable power to your system
- Universal AC input 90~264V automatically scans and detects the correct voltage
- Dedicated single +12V rail offers maximum compatibility with latest components
- Over Current/Voltage/Power Protection, Under Voltage Protection, and Short Circuit Protection provide maximum safety to your critical system components.
- High quality Japanese capacitors provide uncompromised performance and reliability.
- Extra long cables support full tower size chassis.
- TX750W Dimension: 5.9"(W) x 3.4"(H) X 6.3"(L);
- TX650W Dimension: 5.9"(W) x 3.4"(H) X 5.5"(L);
- MTBF: 100,000 Hours
| Corsair TX650W Specifications: Model CMPSU-650TX |
| AC INPUT |
90-264V ~ 9A 50/60Hz |
| DC OUTPUT |
+3.3V |
+5V |
+12V |
-12V |
+5Vsb |
| MAX LOAD |
24A |
30A |
52A |
0.8A |
3A |
| MAX COMBINED WATTAGE |
170W |
624W |
9.6W |
15W |
| |
TOTAL POWER: 650W |
| Corsair TX750W Specifications: Model CMPSU-750TX |
| AC INPUT |
90-264V ~ 10A 50/60Hz |
| DC OUTPUT |
+3.3V |
+5V |
+12V |
-12V |
+5Vsb |
| MAX LOAD |
24A |
28A |
60A |
0.8A |
3A |
| MAX COMBINED WATTAGE |
180W |
720W |
9.6W |
15W |
| |
TOTAL POWER: 750W |
Corsair TX Series Connectors:
| Connectors Included |
TX650W |
TX750W |
ATX 24 pin & 20 pin compatible |
x1 |
x1 |
EPS/ATX12V 8-4 pin |
x1 |
x1 |
PCI-E 8 pin |
x2 |
x4 |
SATA |
x8 |
x8 |
4 pin Peripheral |
x8 |
x8 |
Floppy |
x2 |
x2 |
