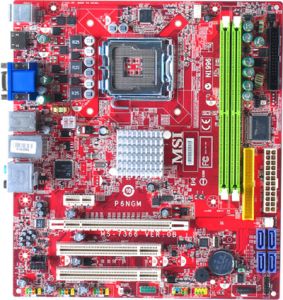

MSI P6NGM-FD Motherboard
LGA775, nVidia MCP73PV, 1333FSB, 2x DDR2-800, PCI-Ex16, 4x SATA-II, RAID, GigLAN, 8Chl, VGA+DVI, mATX
Cart
Quantity:
Add MSI P6NGM-FD Motherboard
LGA775, nVidia MCP73PV, 1333FSB, 2x DDR2-800, PCI-Ex16, 4x SATA-II, RAID, GigLAN, 8Chl, VGA+DVI, mATX to your wishlist
Click here to write a review on MSI P6NGM-FD Motherboard
LGA775, nVidia MCP73PV, 1333FSB, 2x DDR2-800, PCI-Ex16, 4x SATA-II, RAID, GigLAN, 8Chl, VGA+DVI, mATX

Large image is available
Product May Vary From Image

Our Price:
$97.35
RRP:$139.05
You Save:$41.70

Techbuy Part No:78056
Usually Ships: 1-3 Days Details
Brand:MSI Web Site
Manuf No:P6NGM-FD
 P6NGMFD
Shipping Weight:2 KG How Much?
Date Added:16/11/2007
Rating: Not Rated
Currency:AUD Convert

Product Description

P6NGM


MSI Reminds you :
Because of the limitations of chipset, this MB does not support Win98/ME.

Features
Dual Core Center
Key components status hardware monitor.
Monitor the Dual Core CPU each unit status.
Optimize System status define.
Auto speed up with system loading change.

MSI Advanced Live Update Online
The MSI Live Update online is designed to automatically download and update the BIOS and driver when theres a new version online. It helps reduce the risk of getting the wrong file and minimize the trouble of searching the files from MSI website.

live_update_3 standard
Live Update 3 is a single utility software that automatically checks BIOS, driver and utility updates and installs for you , which can save your time for searching and lower the risk while updating.

Specifications



CPU
Supports Socket 775 for Intel Core 2 Quad, Core 2 Duo, P4, P4EE,  Pentium D,  Pentium XE processors.
Supports FSB 1333/1066/800/533MHz.  (for 73U/PV)
Supports FSB 1066/800/533MHz.  (for 73V)
Supports EIST technology.
Supports Intel Hyper-Threading technology.
Please refer to CPU Support for compatible CPU; the above description is for reference only.


Chipset

NVIDIAMCP73U/PV/V Chipset
- Supports Dual View function (D-sub or HDMI + PCIE graphic card, for NVIDIA graphic cards only)
- Tha additional NVIDIA PCIE graphic cards need no extra drivers installed.


Main Memory

Supports single channel DDR2 533/667/800 (for 73U/PV)
Supportssingle channel DDR2 533/667 (for 73V)
Two 240-pin/1.8V DDR2 DIMMs.
Supports a maximum memory size up to 4GB



Slots
One PCI Express x16 slot (supports PCI Express Bus specification v1.0a compliant)
One PCI Express x1 slot (support PCI Express Bus specification v1.0a compliant)
Two 32-bit v2.3 Master PCI bus slots (support 3.3v/5v PCI bus interface)


On-Board IDE

An IDE controller on the NVIDIAMCP73U/PV/V
-Supports PIO, Bus Master and Ultra DMA133/100/66 operation modes.
- Can connect up to2 IDE devices.


On-Board SATA

NVIDIAMCP73U/PV/V supports 4 SATA II ports (SATA 1 to 4).
- Transfer rate is up to 300 MB/s.

NV RAID

- SATA1~4 support RAID 0/1/5/0+1, JBOD (for 73U/PV)
- SATA1~4 support RAID 0/1, JBOD (for 73V)
MSI Reminds You...
The RAID setup floppy disk is optional depending on the districts. You can download the files from the website to make the setup disk.



Audio
Chip integrated by Realtek ALC888
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 spec.


LAN
- Supports 10/100/1000 Fast Ethernet by Realtek 8211BL (for 73U/PV)
- Supports 10/100 Fast Ethernet by Realtek 8201CL (for 73V)


IEEE1394

JMicron JMB381 chipset
- Transfer rate is up to 400Mbps


Internal I/O Connectors
- ATX 24-Pin power connector
- ATX 4-pin12V power connector
- CPU x 1 / System FAN x 1 connector
- CD-in connector
- Front panel audio connector
- Front panel connector
-  1 xSPDIF out connector
-3/2 x USB 2.0 connectors (3 for 73U/PV, 2 for 73V)
- 1 x Floppy disk drive connector
- 4 x serial ATA connectors
- 1 x serial port connector
-1 x ATA133 HD connectors
- 1 x IEEE1394 connector (optional)
- 1 x TPM connector (optional)
- Chassis intrusion switch connector
- Clear CMOS jumper
MSI Reminds You...
The floppy disk cable will be optional.



Back Panel I/O Ports
- 1 x PS/2 Keyboard
- 1 x PS/2 Mouse
-  1 x6 in 1 Audio jack
- 4 x USB 2.0 ports

- 1 x RJ45 LAN Jack
- 1 x Graphic Card port (D-sub)
- 1 x IEEE1394 port
- 1 x DVI port
- 1 x HDMI port


BIOS
The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and
expansion cards of the board automatically.
The mainboard provides a Desktop Management Interface (DMI) function which records your
mainboard specifications.


Dimension
24.4cm(L) x 22.0cm(W) M-ATX Form Factor
Mounting
6 mounting holes.


Product Warranty


1 Year Return to Base
