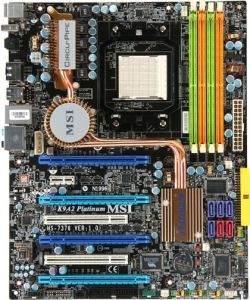

MSI K9A2 Platinum Motherboard
AM2+, 790FX, HT 5200, 4x DDR2-1066, 4x PCI-Ex16 v2.0, 6x SATA-II, 2x eSATA, RAID, GigLAN, 8Chl, ATX

No Longer Available

Part Number:

78180

(?) Brand:

MSI Web Site

Manuf No:

K9A2-Platinum
K9A2Platinum

Shipping Weight:

2 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

K9A2Platinum, K9A2-Platinum, K9A2P, K9A2-P

K9A2 Platinum

MSI Reminds you :
Because of the limitations of chipset, this MB does not support Win98/ME.

Features

Key components status hardware monitor.
Monitor the Dual Core CPU each unit status.
Optimize System status define.
Auto speed up with system loading change.

The MSI Live Update online is designed to automatically download and update the BIOS and driver when theres a new version online. It helps reduce the risk of getting the wrong file and minimize the trouble of searching the files from MSI website.

Live Update 3 is a single utility software that automatically checks BIOS, driver and utility updates and installs for you , which can save your time for searching and lower the risk while updating.

AMD Cool'n'Quiet technology that based on famous PowerNow technology just brings fresh air to hot-fighting desktop platform. Cool'n'Quiet technology can automatically adjust processor ratio to throttle CPU speed with four modes.

Specifications

CPU

AMD Phenom/Athlon/Sempron in the Socket AM2+ package.
Please refer to CPU Support for compatible CPU; the above description is for reference only.

FSB

HyperTransport 3.0 supporting speed up to 2600MHz

Chipset

AMD 790FX and SB600 Chipset

Main Memory

Supports Dual DDR II 533/667/800/1066
- 4 DDRII DIMMs (240pin / 1.8V)
- Supports a maximum memory size up to 8GB.

Slots

2 mazarine PCI Express x16 slots(PCI Express Bus SPEC V2.0 compliant; supports CrossFire Technology)
2light-blue PCI Express x16 slots with x8 operations (PCI Express Bus SPEC V2.0 compliant; supports CrossFire Technology)
When 4 PCI Express x16 slots are all installed, the PCIE x 16 lanes will autoarrange form x16/ x0/ x16/ x0 to x8/ x8/ x8/ x8
1 PCI Express x1 slots
2 PCI slots, support 3.3V/ 5V PCI bus Interface.

On-Board IDE

One IDE port by AMD SB600
- Supports Ultra DMA 66/100/133 mode
- Supports PIO, Bus Master operation mode
- Can connect up to two IDE devices

On-Board SATA

4 SATA II (1~4) ports by AMD SB600
2 SATA II (5~6) ports by Promise T3, support SAS ready devices, for storage devices only
2 eSATAports by Promise T3, for storage devices only
- Supports storage and data transfers at up to 300 MB/s

RAID Function

- SATA II 1~4 support RAID 0, 1 and 0+1 mode by AMD SB600
- SATA II 5~6 & 2 eSATA ports support RAID 0, 1 and 0+1 mode by Promise T3

MSI Reminds You...
The RAID setup floppy disk is optional depending on the districts. You can download the files from the website to make the setup disk.

Audio

Chipset integrated by Realtek ALC888/ALC888T
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec

LAN

Realtek PCI-E GbLAN controller 8111B
- Integrated Fast Ethernet MAC and PHY in single chip
- Supports 10Mb/s, 100Mb/s and 1000Mb/s
- Compliance with PCI-Express Bus specification v1.0a

Internal I/O Connectors

- ATX 24-pin power connector
- ATX 4-pin 12V CPU power connector
- ATX 4-pin VGA power connector
- CPU / System x 4 FAN connectors
- CD-in connector
- Front panel audio connector
- Front panel connector
- 3 x USB 2.0 connector support additional 6 ports
- 1 x Floppy disk drive connector
-6 x Serial ATA II connectors
- 1 x ATA133 HD connectors
- 1 x SPDIF-out header
- 1 x Serialport header (optional)
- 1 x VoIPcard header (optional)

MSI Reminds You...
The floppy disk cable will be optional.

Back Panel I/O Ports

- 1 x PS/2 keyboard

- 1 x PS/2 mouse
- 1 xOptical SPDIF out
- 1 x IEEE1394 Port(optional)
- 1 x 6 in 1 audio jack
- 4 x USB 2.0 ports
-1 x RJ45 LAN jack
- 2 x eSATA ports

Dimension

30.5cm(L) x 24.5cm(W) ATX Form Factor

Mounting

9 mounting holes.

Product Accessories

MSI Reminds You...
The accessories will probably be different according to the different selling areas of product models. For details of accessories, please refer to the descriptions on the product package.

No additional files, specification sheets, guides or documentation found for product.

Warranty: 3-year Manufact.

Full manufacturers warranty details are available at the manufacturers (MSI) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
