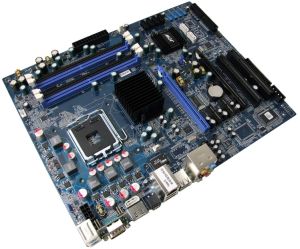

J&W JW-IP35-S Motherboard
LGA775, P35, 4x DDR2-800, 2x PCI-Ex16, SATA-II, eSATA, 2x GigLAN, 8Chl, ATX


Large image is available

Product May Vary From Image

Our Price:Discontinued

Techbuy Part No:78402
Usually Ships: No Longer Available Details
Brand:J&W Web Site
Manuf No:JW-IP35-S
 JWIP35S
Shipping Weight:2 KG How Much?
Date Added:28/11/2007
Rating: Not Rated
Currency:AUD Convert

Product Description

JW-IP35-S

  1. LGA775 Intel Core2 Extreme, Core2 Quad, Core2 Duo, Pentium Dual-Core processors
  2. Supports Intel next generation 45nm Multi-Core processors
  3. 1333/1066/800 FSB
  4. Dual Channel DDR2 800/667 x 4 DIMMs, Max. 8GB
  5. 2 x PCIe x16, 2 x PCIe x1, 2 x PCI
  6. ATA x 1, SATAII x 6, eSATA x 1
  7. 7.1 Channel HD Audio
  8. Marvell Gigabit LAN
  9. 12 USB 2.0 ports, Debug LED
Overview

Specification

Processor

  1. LGA775 for Intel Core 2 Extreme, Core 2 Quad, Core 2 Duo, Pentium  Dual Core, Pentium  D, Pentium  4, Celeron  (Conroe-L) and next generation 45nm Yorkfield & Wolfdale Processors

Chipset

  1. Intel P35 + ICH9
  2. Marvell  8056 Gigabit Ethernet Controller
  3. Super I/O: Winbond W83627DHG chip
  4. Realtek ALC883/ALC888 (optional) 8-Channel HD Audio Codec
  5. 8M bit flash ROM

Front Side Bus

  1. 1333/ 1066/ 800 MHz FSB

Memory

  1. Type: Dual Channel DDR2 800/ 667 support
  2. Max capacity: 8 GB
  3. DIMM slots: 4

Internal I/O

Connectors

  1. 1 x 24-pin ATX power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x floppy connector
  4. 1 x IDE connector (for 2 PATA devices)
  5. 4 x SATA 3Gb/s connectors
  6. 1 x CPU fan connector
  7. 1 x system fan connector
  8. 1 x NB fan connector
  9. 1 x front panel connector
  10. 1 x front audio connector
  11. 1 x CD/Aux In connector
  12. 4 x USB 2.0 header for additional 8 USB 2.0 ports (by cables)
  13. 1 x IR connector
  14. 1 x eSATA connector

Expansion Slots

  1. 2 x PCI-E x16 slots supporting Crossfire Technology (2nd slot running at PCI-E x4 speed)
  2. 2 x PCI-E x1 slots
  3. 2 x PCI slots

Rear Panel I/O

  1. 1 x PS/2 Keyboard port
  2. 1 x PS/2 Mouse port
  3. 1 x eSATA port
  4. 4 x USB 2.0 ports
  5. 1 x RJ45 LAN ports (DUAL Gigabit LAN)
  6. 6 x Audio ports (Line In / Line Out / MIC In / Rear Speaker Out / Center-Subwoofer Speaker Out / Side Speaker Out)
  7. 2 x S/P DIF ports (coaxial & optical)
  8. One Debug Diagnosis LED
  9. One COM port

Form Factor

  1. ATX
  2. 245mm x 304.8mm

H/W Monitoring

  1. Winbond W83627DHG
  2. System health status auto-detect and reported by BIOS

BIOS

  1. 1 x 8Mbit flash ROM, Award BIOS

Bundle Software

n/a

Remark

  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
  2. This product does not support Win9X/ME, due to most hardware/software vendors no longer offer support for Win9X/ME.
  3. Solid Capacitors on PWM Area, Gigabit LAN, Debug LED, Good Overclocking ability.

*



Product Warranty


2-year RTB
