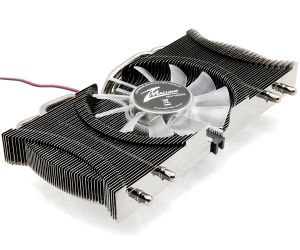

The product is equipped with Zalmans patented VFP (Variable Fin Profile) technology. Fan installed inside the heatsink maximizes the cooling efficiency and the products maximized dissipation surface area provides excellent performance. |
| |
 |
Use of four high performance heatpipes maximizes heat transfer. |
| |
 |
Pure copper thin fins (0.3mm) for excellent cooling performance. |
| |
 |
Cools not only the VGA chipset and VGA RAM, but all other VGA components as well. |
| |
 |
80mm Slim LED Fan for excellent performance and great aesthetics. |
| |
 |
Newly improved installation structure provides easy installation and broad compatibility. |
| |
 |
Adjustable fan speed controller(FAN MATE 2) enables control of noise and fan speed. |
|
|
|
| |
 |
| |
 |
| |
| Dimensions |
160(L) x 80(W) x 30(H) mm |
| Weight |
390g |
| Base Material |
Dissipation Fins : Pure Copper,
Base : Pure Copper, Heatpipe : Pure Copper |
|
| |
 |
| |
| Dimensions |
80(L) x 80(W) x 15(H) mm |
| Bearing Type |
2 Ball-Bearing |
| Speed |
5V, Quiet Mode |
1,650rpm 10% |
12V, Performance Mode |
3,600rpm 10% |
| Noise Level |
5V, Quiet Mode |
20dBA 10% |
12V, Performance Mode |
36dBA 10% |
|
| |
 |
|
|
| |

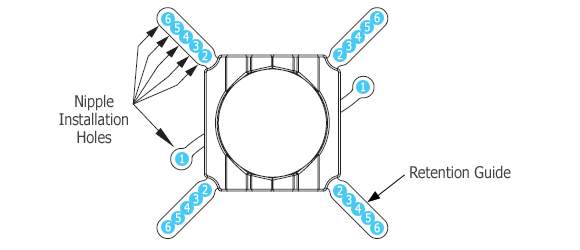

| Nipple Installation Holes |
 |
VGA Card |
 |
|
ATI X1600 Series
ATI X1300 Series
ATI Radeon 9*** Series (except 9550/9600)
ATI Radeon X*** Series
NVIDIA Geforce4 MX Series
NVIDIA Geforce FX 5200
NVIDIA Geforce FX 5500
NVIDIA Geforce FX 5600(FX 5700)
NVIDIA Geforce 6600 Series (except 6600 AGP Series) |
| |
 |
|
NVIDIA Geforce4 TI 4 Series
NVIDIA Geforce FX 5700(Ultra) Series
NVIDIA Geforce FX 5800 Series
NVIDIA Geforce 6600 Series (except 6600 AGP Series) |
| |
 |
|
ATI X2600 Series
ATI X2400 Series
ATI X1650 Series
ATI X1600 Series
NVIDIA Geforce 8600 Series
NVIDIA Geforce 8500 Series
NVIDIA Geforce 7600 Series
NVIDIA Geforce 7300 Series
NVIDIA Geforce 6600 Series (except 6600 AGP Series) |
| |
 |
|
NVIDIA Geforce FX 5900 Series
NVIDIA Geforce FX 5950 Series |
| |
 |
|
NVIDIA Geforce 8800GT, 8800GTS (G92)
ATI HD 3870, HD3850
ATI X1950 Series, ATI X1900 Series
ATI X1800 Series
NVIDIA Geforce 7950 Series
NVIDIA Geforce 7900 Series
NVIDIA Geforce 7600 Series
NVIDIA Geforce 7800 Series
NVIDIA Geforce 6800 Series |
| |
 |
|
NVIDIA Geforce 8800 Series (G80) |
| |
|
| |
 |
 |
- One (1) VGA Cooler
- Eight (8) RAM Heatsinks
- Four (4) Nipples
- Four (4) Fixing Nuts
- Four (4) Fixing Nuts for SLI/CrossFire
- One (1) PVC Washer Plate
- Four (4) Rubber Rings
- Four (4) Springs
- One (1) Thermal Grease
- One (1) Fan Controller (FAN MATE 2)
- One (1) Cable for FAN MATE 2
- One (1) Double-Sided Tape (to attach FAN MATE 2)
- One (1) Users Manual |
|
|
|
| |
 |
| Zalman affixes a Computer Noise Prevention System (CNPS) mark to all components used for noiseless computers. |
| |
 |
|
By installing this product on a VGA (Video Graphics Array) card, a PCI slot adjacent to the PCIe (or AGP) slot will become unusable. |
| |
|
The product cannot be installed on Matrox VGA cards, NVIDIA PCX 5*** , NVIDIA Geforce 6600 AGP Series, Geforce 7600/7900 AGP Series, and ATI Radeon 9550/9600 Series. |
| |
|
If the VGA card and/or its components interfere with the installation of this product, then stop the installation, refer to the list of compatible VGA cards at Zalmans website, and install this product with one of the compatible VGA cards. |
| |
|
NVIDIAs Geforce 8800 Series requires the installation of Zalmans RAM Heatsink ZM-RHS88 before installing VF1000 LED. |
| |
|
The use of an exhaust fan positioned on the rear side of the case is recommended for enhancement of product performance. |
|
