All stock codes associated to this product
HVR2200MCE, 24HVR2200MCE
|
 |

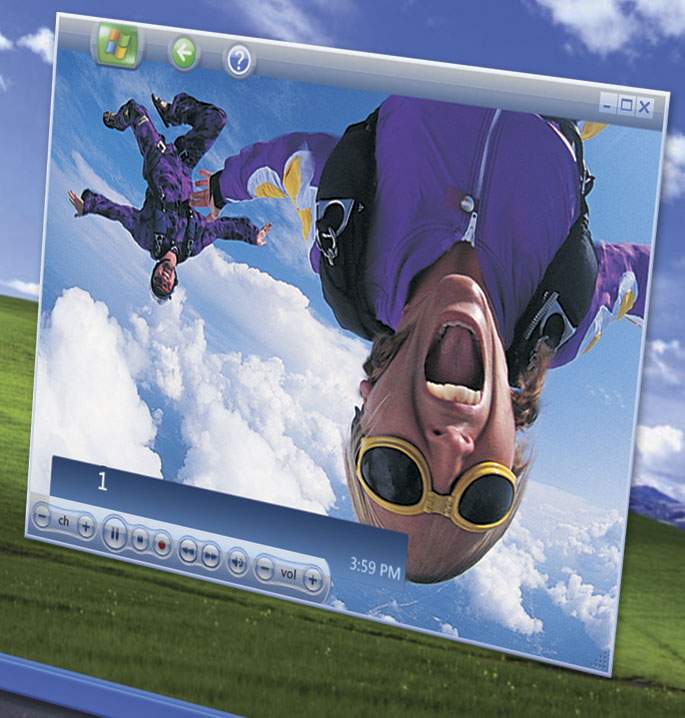

Watch analogue TV on your PC, in a window or full screen.
|
|
Watch Freeview digital TV on your PC, in a window or full screen. Digital TV gives you sharper pictures and better sound!
|
|
Record analogue or digital TV to your PCs hard disk using high quality MPEG-2!
|
|
Included in this package
|
 |

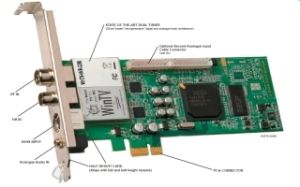

WinTV-HVR-2200 PCI-Express card with built-in DVB-T, PAL/SECAM TV receivers, FM radio receiver and S-Video, Composite and stereo audio inputs.
|
|
Software on CD-ROM (incl. manual)
|
|
Quick Installation Guide
|
|
WinTV-HVR-2200 features
|
|
Digital and Analogue TV for your PC on a single slot PCI-Express board. Includes a hybrid analogue aerial/cable receiver plus a Freeview DVB-T digital TV receiver. Watch analog TV or digital TV on your PC screen!
|
|
Plug and play TV tuner support for Windows Media Center Application. Use the LiveTV button in Media Center to watch, pause and record TV on your PC. And use Media Center's built-in TV scheduler to record your favourite TV shows to disk.
|
|
Windows Media Center Application supports up to two TV tuners, so you can watch one TV channel while recording another (or record two TV shows at once!).WinTV-HVR-2200 MCE has dual tuner so you can record one channel and watch a different channel at the same time!
|
| Digital TV features |
|
Pause digital TV with instant replay.
|
|
Record digital TV to your PC's hard disk using high quality hardware MPEG-2. encoding Digital TV recordings will typically take 1,5 Gb of disk space per hour.
|
|
Analogue TV features
|
|
Record analogue TV shows to your PC's hard disk using our hardware MPEG-2 encoder. TV recordings will typically take 1,5 Gb of disk space per hour.
|
|
Auxiliary audio/video input for analogue video sources such as VCRs, Camcorders, satellite TV boxes, etc. S-Video and composite video, too!
|
WinTV-HVR-2200 - your TV bridge to the future!
WinTV-HVR-2200 brings analogue and digital terrestrial TV (DVB-T) to your PC!
If you live in an area where you can receive Freeview digital TV, the WinTV-HVR-2200 supports digital TV watching, pause, recording and playback on your PCs screen.
If you live in an area where you cant currently receive Freeview digital TV, the WinTV-HVR-2200 can still be used to watch and record analogue TV from cable or a TV aerial. But you are prepared for the future! When digital TV comes to your area, WinTV-HVR-2200 will also receive the new digital TV channels.
If you live in an area where you can receive both analogue cable plus Freeview digital TV, you have the best of both worlds! Watch analogue and digital TV on your PC screen, in a window or full screen.
Freeview digital TV brings you sharper pictures, more TV choice and offers great stereo sound enriching your PCs multimedia experience. WinTV-HVR-2200s digital TV receiver adds great features to your TV watching: excellent digital video quality, near CD quality audio, automatic identification of channel names. You can record digital TV programs to your PCs hard disk in an MPEG-2 format without losing quality. Plus pause live TV with instant replay and get teletext reception.
Receive analogue television over cable TV or terrestrial antenna, with great stereo audio. Record your TV shows in MPEG-1-VCD, MPEG-2-SVCD or MPEG-2-DVD. You can also receive analogue teletext!
Three-in-one digital video recorder - Record your favourite analogue or digital TV shows with one simple click. Or record from VCR or camcorder. You can also use Media Center application to schedule your TV recordings on a daily, weekly or once only schedule.
Digital Video Recorder - Record analogue, DVB-T TV in high quality MPEG-2, or high definition digital TV in H.264! Use Windows Media Center Application-TV scheduler to automatically record your favourites TV shows, on a daily, weekly or once only schedule. Or use the free Electronic Program Guide for digital TV to have an overview of all up coming programmes!
|
System Requirements
|
|
Digital TV (DVB-T) reception and recording: PC with 1.5 GHz processor (min. recommended)
|
|
Microsoft Windows XP / XP MCE 2005 / Vista
|
|
DirectDraw compatible AGP or PCI Express graphics card
|
|
A free PCI-Express slot
|
|
Sound card or on board sound
|
|
CD-ROM drive (for Software installation)
|
* For Digital Terrestrial reception, a high gain aerial is recommended. The WinTV-HVR-2200 uses a rooftop aerial for DVB-T reception in the same way that most people currently receive their analogue television programmes. Some viewers will need to replace their aerials to receive digital transmissions if the installation is old or in poor condition. Digital Terrestrial coverage is improving all the time as digital terrestrial television transmitters are continuously being updated.
* For Digital Terrestrial reception, a high gain antenna is recommended.
The WinTV-NOVA / WinTV-HVR uses a rooftop antenna in the same way that most people currently receive their analogue television programmes. Digital Terrestrial coverage is improving all the time as digital terrestrial television transmitters are continuously being deployed.
For Singapore residence, some DVB-T reception with indoor antenna might be impaired by walls and high neighboring buildings/structures/trees. In such environments, an outdoor / roof-top DVB-T antenna is recommended. If you are using roof-top antenna with amplified signal, in theory, you should not encounter any reception problem and you should be able to receive all free-to-air DVB-t channels available in Singapore.
For optimal reception of DVB-T channels with any indoor antenna (DVB-t compatible), you have to be in a location with minimum disturbance on the DVB-T signal. If you are using indoor antenna in a building, you may receive only TV Mobile (scan with channel number 37) as it has stronger signal transmission than other free-to-air DVB-t channels.
Please note that Starhub SCV point in Singapore is not for DVB-t reception.
Hauppauge also reserves the right to make improvements and/or changes to the product, programmes and/or specifications described in the above information at any time without notice
