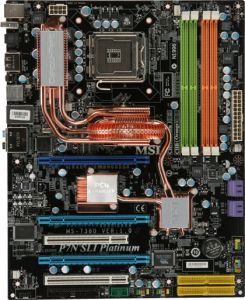

MSI P7N SLI Platinum Motherboard
LGA775, nForce 750i SLI, 1333FSB, 4x DDR2-800, 3x PCI-Ex16, 4x SATA-II, RAID, 8Chl, GigLAN, ATX

No Longer Available

Part Number:

81140

(?) Brand:

MSI Web Site

Manuf No:

P7N SLI PLATINUM

Shipping Weight:

2 KG (Includes product packaging)
Estimate Shipping

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

P7NSLIPLATINUM, P7N SLI PLATINUM, MSI3003

P7N SLI Platinum

Features

With 4-phase PWM IC, dual channel PWM design and Hi-c CAP, which lead to better power converting, reducing noise and expand the lifespan and stability.
Hi-c CAP can bring 100x faster electrical conductivity than solid acpacitor and less power loss. PWM brings more power efficiency, thus lower the real power spend.

3-way NVIDIA SLI Technology build the fastest gaming solution available with NVIDIA nForce 680i SLI MCPs (or other latest 3-way SLI enabled MCPs) and three NVIDIA GeForce 8800 GTX or GeForce 8800 Ultra-based graphics cards.(*Note:For Windows Vista Only.)
Compared with single graphic card solution, it brings 2.8X faster performance gained.

Power/Reset/ Clear CMOS are designed with button to be easy use.
Help power-users tweaking process in-chasis enviornment
Onboard SATA ports are stacked on the mainboard to avoid mechanical issue with giant graphic cards like 8800 Ultra.

Key components status hardware monitor.
Monitor the Dual Core CPU each unit status.
Optimize System status define.
Auto speed up with system loading change.

The MSI Live Update online is designed to automatically download and update the BIOS and driver when theres a new version online. It helps reduce the risk of getting the wrong file and minimize the trouble of searching the files from MSI website.

Live Update 3 is a single utility software that automatically checks BIOS, driver and utility updates and installs for you , which can save your time for searching and lower the risk while updating.

Specifications

CPU

Supports Socket 775 for Intel Core 2 Extreme, Core 2 Quad,Core 2 Duo, P4, P4EE, Pentium D, Pentium XE processors.
Supports FSB 1333/1066/800/533MHz.
Supports EIST technology.
Supports Intel Hyper-Threading technology.
Please refer to CPU Support for compatible CPU; the above description is for reference only.

MSI Reminds you...
1. NVIDIA nForce Series boards DO NOT support Windows 98/ME
2. SLI Technology only supports 32-bit and 64-bit Windows XP
3. For the best performance and commitment of convenience, please use memories listed in MSI approved memory module vendor list (Please check memory test report), which provides the easiest, up-to-date memory configurations.

Chipset

NVIDIA nForce 750i SLI (C72P) Chipset

NVIDIA nForce 430i (MCP51) Chipset

Main Memory

Supports dual channel DDR2 533/667/800, using four 240-pin/1.8V DDR2 DIMMs.
Supports a maximum memory size up to 8GB

Slots

Three PCI Express x16 slots
- themazarine slot PCI Express x 16 slot (PCI_E1)supportsPCIE2.0 x 16mode.
- the two light-blue PCI Express x 16 slots (PCI_E2 & PCI_E3)support PCI Express x 8 mode only.
- supports SLI technology.
Two 32-bit v2.3 Master PCI bus slots (support 3.3v/5v PCI bus interface)

On-Board IDE

An IDE controller on the NVIDIA nForce430i chipset provides IDE
HDD/CD-ROM with PIO, Bus Master and Ultra DMA133/100/66 operation modes.
- Can connect up to 4 IDE devices.

On-Board SATA

nForce 430i supports 4 SATA II ports (SATA 1 to 4).
- Transfer rate is up to 300 MB/s.
-2 eSATA port by JMicron JMB363 (back panel, optional)

NV RAID
- 4 SATA ports support RAID 0, 1, 0+1, 5 or JBOD is supported
- 2 eSATA ports (back panel) supportRAID 0/1 mode

MSI Reminds You...
The RAID setup floppy disk is optional depending on the districts. You can download the files from the website to make the setup disk.

Audio

Chip integrated by Realtek ALC888
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 spec.

LAN

- Supports 10/100/1000 Fast Ethernet by Realtek RTL8211BL

IEEE1394

VIA VT 6308P chipset
- Transfer rate is up to 400Mbps

Internal I/O Connectors

- ATX 24-Pin power connector
- 8-pin ATX 12V power connector
- CPU / Systemx3 FAN connectors
- CD-in connector
- Front panel audio connector
- Front panel connector
- 1 x IEEE1394 connector (optional)
- 2 x USB 2.0 connector support additional 4 ports
- 1 x Floppy disk drive connector
- 4 x serial ATA connectors
- 1 x serial port connector (optional)
- SPDIF-out connector
- 1 x TPM module connector (optional)
-2 x ATA133connectors
- Chassis intrusion switch connector
- Clear CMOS button

MSI Reminds You...
The floppy disk cable will be optional.

Back Panel I/O Ports

- 1 x Clear CMOS button

- 1 x PS/2 Keyboard
- 1 x PS/2 Mouse
-2 x eSATA ports
- 1 x Optical SPDIF out
- 1 x6 in 1 Audio jack
- 1 x IEEE1394 port (optional)
- 4 x USB 2.0 ports
- 1 x RJ45 LAN Jack

BIOS

The mainboard BIOS provides "Plug & Play" BIOS which detects the peripheral devices and
expansion cards of the board automatically.
The mainboard provides a Desktop Management Interface(DMI) function which records your
mainboard specifications.

Dimension

30.4cm(L) x 24.5cm(W) ATX Form Factor

Mounting

9 mounting holes.

MSI Reminds You...
The accessories will probably be different according to the different selling areas of product models. For details of accessories, please refer to the descriptions on the product package.
