| Features |
| Motherboard |
Super H8DCE |
| Processor/Chipset |
| CPU |
- Dual 940-pin ZIF Sockets
- Supports up to two Dual-Core AMD Opteron 200 Series processor(s)
- VRM x3
|
| Chipset |
- HyperTransport Link
- nVidia nForce Pro 2200 (CK804)
- nVidia nForce Pro 2050 (CKIO4)
|
| System Memory |
| Memory Capacity |
- Eight 184-pin DIMM sockets
- Supports up to 16 GB DDR 400 MHz memory or
- Supports up to 16 GB DDR 333 MHz memory or
- Supports up to 32 GB DDR 266 MHz memory
- Single or Dual(recommended) channel memory
- For Single CPU: Memory must be populated in the adjacent memory bank
- For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks
|
| Memory Type |
- DDR 400/333/266MHz buffered (registered) ECC SDRAM 72-bit, 184-pin gold-plated DIMMs
|
| DIMM Sizes |
- 256 MB, 512 MB, 1GB, 2GB, 4GB**
|
| Memory Voltage |
|
| Error Detection |
- Corrects single-bit errors
- Detects double-bit errors (using ECC memory)
|
| On-Board Devices |
| SATA |
- nVidia nForce Pro 2200 SATA2 Controller
- nVidia nForce Pro 2050 SATA2 Controller
- 8 SATA Ports
- nVidia RAID 2.0
- SATA RAID 0, 1, 10 & JBOD support
|
| Network Controllers |
- nVidia nForce Pro 2200 & 2050 Dual Port Gigabit Ethernet Controller
- Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
|
| Audio |
- AC'97 audio CODEC with high quality 6-channel sound
- Front-side audio header
|
| Expansion Slots |
| PCI-Express |
- 2x PCI-e x16 slots
- 2x PCI-e x4 (using x8) slots
|
| PCI |
|
| Input / Output |
| Serial ATA |
- Integrated SATA2 Controller
- Eight Serial ATA Connectors
- Eight SATA hard drives supported
|
| IDE |
- Dual ATA 133/100 EIDE channels support up to four UDMA IDE devices
|
| Floppy |
- 1 Floppy port; 1.44 MB, 2.88 MB, 3-mode support
|
| LAN |
|
| USB |
- FUCI
- Up to 8 USB Ports 2.0 Compliant, 1.1 Compatible
|
| Audio |
- 1 Line In / Line Out / Microphone ports
|
| Keyboard / Mouse |
- PS/2 keyboard and mouse ports
|
| Serial Ports |
- 2 Fast UART 16550 serial ports
|
| Parallel Ports |
|
| Form Factor |
- Tower / 4U Rackmountable
- Optional Rackmount Kit (CSE-PT26)
|
| Model |
|
| Dimensions |
| Height |
|
| Width |
|
| Depth |
|
| Gross Weight |
|
| Available Colors |
|
| Front Panel |
| Buttons |
- Power On/Off button
- System Reset button
|
| LEDs |
- Power LED
- Hard drive activity LED
- 2x Network activity LEDs
- System Overheat / Fan Fail LED
|
| Ports |
|
| Drive Bays |
| Hot-swap |
- 8x 1" SATA Hot-swap Drives
|
| Peripheral Bay(s) [90o Rotatable] |
- 2x 5.25" Peripheral Drive Bay
- 1x 5.25" Bay For Floppy Drive
|
| Peripheral Drives |
| Floppy |
- Panasonic 3.5" 1.44MB Floppy Drive
|
| SATA Backplane |
| SATA Hard Drive Backplane |
| System Cooling |
| Fans |
- 4x 5000 RPM Hot-swappable PWM Cooling Fans
|
| Power Supply |
645W Low-Noise AC power supply with PFC
[ 24-pin, (4-pin, 8-pin) = 12V ] |
| AC Voltage |
- 100 - 240V, 50/60Hz, 11-5.5 Amp
|
| DC Output |
|
| +5V |
|
| +5V standby |
|
| +12V |
|
| -12V |
|
| +3.3V |
|
| PC Health Monitoring |
| CPU |
- Monitors CPU Core Voltages, +3.3V, +5V, 12V & +3.3V Standby, HyperTransport Link voltage 1.2V, memory voltage 2.5V, nVidia nForce Pro 2200 & 2050 voltage 1.5V
- Up to 8 fan status
- Supports System Management Utility
- S3 Suspend To RAM (STR)
|
| FAN |
- Total up to 8-fan status
- 3-pin fan speed control or
- 4-pin PWM fan connector
|
| Temperature |
- Monitoring for CPU, chassis, environment
|
| LED |
|
| Other Features |
|
| System BIOS |
| BIOS Type |
- 4Mb Flash EEPROM with AMI BIOS
|
| BIOS Features |
- Plug and Play (PnP)
- SMBIOS 2.3
- APM 1.2
- DMI 2.1
- ACPI 1.0
- Fan Speed Control
|

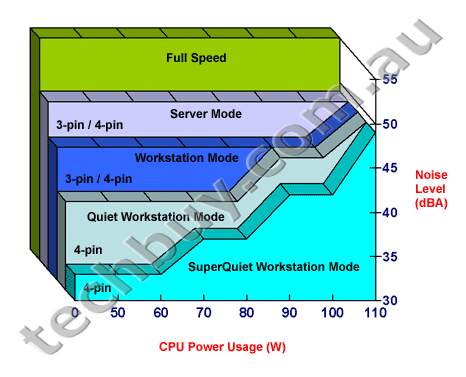

| Super Quiet Features |
| The SuperQuiet Workstation Mode is an optimized fan speed control setting that is designed for workstation systems to minimize unnecessary fan noise and airflow. This mode is especially designed for systems with light to medium application loads. When enabled, the system optimizes the fan speed to circulate just enough air during increased usage while maintaining noise levels lower than ambient office noise. |
|
|
