DOMINATOR - Extreme Performance, Overclockable Memory
The DOMINATOR family of memory represents the ultimate in performance technology engineering from Corsair. The DOMINATOR was designed to have the highest performing IC maximum over-clocking capability and efficient DHX cooling all the while being stable and reliable.
Corsair TWIN2X4096-8500C5DF 4GB (2 x XMS2 2GB), PC2-8500 (1066MHz) DDR2 RAM
- 2x240-pin DIMMs
- Non ECC, Unbuffered
- 5-5-5-15 Latency
- 64Mx8 DRAMs
- Dual-path Heat Exchange (DHX) Technology
- E.P.P Technology
- Dominator Airflow Fan
DOMINATOR - Best of Corsair's Engineering
Very few components make it into the DOMINATOR family. Corsair performs rigorous testing and screening on all components to select only the best for the DOMINATOR modules. The tests check for high frequency and/or low latency capabilities for each IC. Then, they are thoroughly tested for maximum interoperability and reliability as a united group to meet the stringent design criteria demanded by performance computing and gaming users.
Superior Heat Dissipation
Heat is the enemy of your computers key components. And the more you tweak components for performance, the more heat is generated. Heat will slow down your system and impact long term reliability. With traditional DDR2 memory, the standard method of chip packaging involves a BGA (Ball Grid Array). In a BGA, small balls of solder, organized as a grid, are the leads that connect the device to the module circuit board. A Micron Semiconductor study shows that in a BGA memory device as much as 50% of the heat generated by the chip is actually conducted into the circuit board. Since traditional heat sinks are only attached to the front surface of memory chips, theres no easy thermal path for the heat coming from the back of the chips.

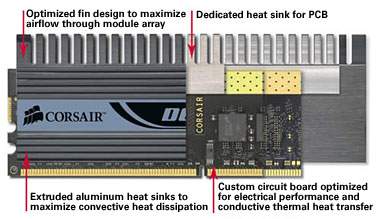

Corsairs Unique Dual-path Heat Xchange (DHX) Solves the Problem
Corsairs engineers have developed a unique technology that maximizes heat dissipation while improving reliability, even in the most extremely overclocked memory module. Dual-Path Heat Exchange (DHX) technology utilizes two methods to effectively remove heat from the memory circuit board - Convection and Conduction.
Optional AirFlow - Extra Cooling for Extreme Overclocking
The optional Airflow fan unit contains three 40mm tachometer-controlled fans to provide impinging airflow to the memory subsystem. With the moderate RPMs required to provide adequate forced air, the Airflow fan is nearly silent. The fan easily clamps onto most motherboards.
Overclocking Now Made Easier with Enhanced Performance Profiles (EPP)
Corsair and NVIDIA have jointly developed a new open standard that enhances the Serial Presence Detect (SPD). This exciting new development simplifies the overclocking process while ensuring platform and component compatibility. EPP compatible motherboards can access and take advantage of added performance capabilities and information. The result: simplified overclocking and unparalleled control for experts.
DOMINATOR - Setting the New Standard
DOMINATOR is the industrys performance and award leader. It has won numerous honors to date including various Editors Choice awards and several Memory of the Year honors.
