Apple MacBook Pro Notebook
Core 2 Duo (2.4GHz), 15.4" WXGA+, 2048MB, 200GB, SuperDrive, WiFi-n, BT, CAM, Firewire 800, OSX

Room for more.

MacBook Pro has a standard hard drive up to 250GB and up to 4GB of RAM. So there's more room for even bigger ideas.

Power duo.

The new Intel Core 2 Duo processors run at speeds up to 2.6GHz on a groundbreaking 45-nm process technology with up to 6MB L2 cache. And the powerful NVIDIA GeForce 8600M GT graphics processor now includes up to 512MB of video memory.

Supersized display.

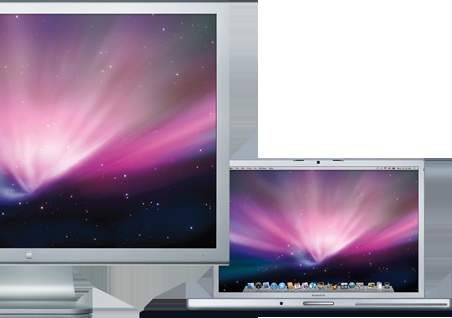

Connect an Apple Cinema Display to expand your desktop and lose nothing in translation. Thats because the DVI connection gives you a pure digital signal from system to display. View more than 4 million pixels on a 30-inch Apple Cinema HD Display, powered by the NVIDIA GeForce 8600M GT graphics processor.

Even the power cord is a feature.

The MacBook Pro power adapter with MagSafe connector is a magnetic connection instead of a physical one. So, if you happen to trip over the power cord, you wont send MacBook Pro flying. The cord simply disconnects, without damage to either the cord or the notebook.

Sounds all around.

MacBook Pro sounds as good as it looks, with unprecedented attention to audio detail. For musicians on the go, MacBook Pro offers pristine sound through crisp, clear stereo speakers, a built-in microphone and optical digital audio on both input and output.

Built-in iSight.

Strategically placed in the center of the MacBook Pro display bezel is a small but powerful iSight camera. Wherever you go, you can video conference with iChat, make a movie with iMovie and experiment in Photo Booth.

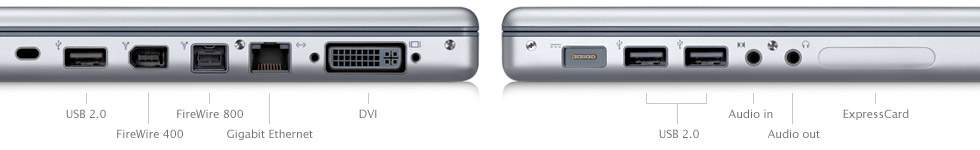

Connections and expansion

• One FireWire 400 port at up to 400 Mbps
• One FireWire 800 port at up to 800 Mbps
• 15-inch MacBook Pro: Two 480-Mbps USB 2.0 ports
• 17-inch MacBook Pro: Three 480-Mbps USB 2.0 ports
• ExpressCard/34 slot
• Kensington cable lock slot

Wireless

Built-in AirPort Extreme Wi-Fi wireless networking² (based on IEEE 802.11n draft (specification); IEEE 802.11a/b/g compatible

Built-in Bluetooth 2.1 + EDR (Enhanced Data Rate)

Built-in 10/100/1000BASE-T Gigabit Ethernet (RJ-45 connector)

Audio

• Built-in stereo speakers
• Built-in omnidirectional microphone (located under left speaker grille)
• Combined optical digital audio input/audio line in (minijack)
• Combined optical digital audio output/audio line out (minijack)

Input

• Built-in full-size keyboard with 78 (U.S.) or 79 (ISO) keys, including 12 function keys and 4 arrow keys (inverted "T" arrangement)
• Backlit keyboard with ambient light sensor for automatic adjustment of keyboard illumination and screen brightness
• Solid-state trackpad with Multi-Touch gesture support for precise cursor control; supports two-finger scrolling, pinch, rotate, swipe, tap, double-tap and drag capabilities

Display

15-inch MacBook Pro

15.4-inch (diagonal) antiglare widescreen TFT LED backlit display with support for millions of colours; optional glossy widescreen display

Supported resolutions: 1440 by 900 (native), 1280 by 800, 1152 by 720, 1024 by 640 and 800 by 500 pixels at 16:10 aspect ratio; 1024 by 768, 800 by 600 and 640 by 480 pixels at 4:3 aspect ratio; 1024 by 768, 800 by 600 and 640 by 480 pixels at 4:3 aspect ratio stretched; 720 by 480 pixels at 3:2 aspect ratio; 720 by 480 pixels at 3:2 aspect ratio stretched

17-inch MacBook Pro

17-inch (diagonal) antiglare widescreen TFT display with support for millions of colours; optional glossy widescreen display

Supported resolutions: 1680 by 1050 (native), 1280 by 800, 1152 by 720, 1024 by 640 and 800 by 500 pixels at 16:10 aspect ratio; 1280 by 1024 pixels at 5:4 aspect ratio; 1280 by 1024 pixels at 5:4 aspect ratio stretched; 1024 by 768, 800 by 600 and 640 by 480 pixels at 4:3 aspect ratio; 1024 by 768, 800 by 600 and 640 by 480 pixels at 4:3 aspect ratio stretched; 720 by 480 pixels at 3:2 aspect ratio; 720 by 480 pixels at 3:2 aspect ratio stretched

Optional 17-inch (diagonal) antiglare TFT widescreen LED backlit display with support for millions of colours; optional glossy widescreen display

Supported resolutions: 1920 by 1200 (native), 1680 by 1050, 1280 by 800, 1152 by 720, 1024 by 640 and 800 by 500 pixels at 16:10 aspect ratio; 1280 by 1024 pixels at 5:4 aspect ratio; 1280 by 1024 pixels at 5:4 aspect ratio stretched; 1600 by 1200, 1024 by 768, 800 by 600 and 640 by 480 pixels at 4:3 aspect ratio; 1600 by 1200, 1024 by 768, 800 by 600 and 640 by 480 pixels at 4:3 aspect ratio stretched; 720 by 480 pixels at 3:2 aspect ratio; 720 by 480 pixels at 3:2 aspect ratio stretched

Processor and memory

15-inch MacBook Pro

2.4GHz Intel Core 2 Duo processor with 3MB on-chip shared L2 cache running 1:1 with processor speed; or 2.5GHz or 2.6GHz Intel Core 2 Duo processor with 6MB L2 cache

17-inch MacBook Pro

2.5GHz or 2.6GHz Intel Core 2 Duo processor with 6MB on-chip shared L2 cache running 1:1 with processor speed

• 2GB (two 1GB SO-DIMMs) of PC2-5300 (667MHz) DDR2 memory; two SO-DIMM slots support up to 4GB
• 800MHz frontside bus

Storage

15-inch MacBook Pro

• 200GB or 250GB 5400-rpm Serial ATA hard drive; optional 200GB 7200-rpm drive³
• 8x slot-loading SuperDrive (DVDR DL/DVDRW/CD-RW)

Maximum write: 8x DVD-R, DVD+R; 4x DVD-R DL (double layer), DVD+R DL (double layer), DVD-RW, DVD+RW; 24x CD-R; 10x CD-RW

Maximum read: 8x DVD-R, DVD+R, DVD-ROM; 6x DVD-ROM (double layer DVD-9), DVD-R DL (double layer), DVD+R DL (double layer), DVD-RW, DVD+RW; 24x CD

17-inch MacBook Pro

• 250GB 5400-rpm Serial ATA hard drive; optional 200GB 7200-rpm drive³; optional 300GB 4200-rpm
• 8x slot-loading SuperDrive (DVDR DL/DVDRW/CD-RW)

Maximum write: 8x DVD-R, DVD+R, DVD+RW; 6x DVD-RW; 4x DVD-R DL (double layer), DVD+R DL (double layer); 24x CD-R; 16x CD-RW

Maximum read: 8x DVD-R, DVD+R, DVD+RW, DVD-ROM; 6x DVD-ROM (double layer DVD-9), DVD-R DL (double layer), DVD+R DL (double layer), DVD-RW; 24x CD

Electrical and operating requirements

• Line voltage: 100V to 240V AC
• Frequency: 50Hz to 60Hz
• DC input: 18.5 Vdc, 4.6A maximum
• Operating temperature: 10 to 35 C (50 to 95 F)
• Storage temperature: -24 to 45 C (-13 to 113 F)
• Relative humidity: 0% to 90% noncondensing
• Maximum operating altitude: 3,000 m (10,000 feet)
• Maximum storage altitude: 4,500 m (15,000 feet)
• Maximum shipping altitude: 10,997 m (35,000 feet)
