ASUS DRW-2014S1T DVD Burner - SATA
  • 20xDVD±R, 8xDVD±R DL, 8xDVD+RW, 6xDVD-RW - Black

IMG 1 of 1
No Longer Available
Part Number:
82040
(?) Brand:
ASUS Web Site
Manuf No:
DRW-2014S1T-BLK
DRW2014S1TBLK
Shipping Weight:
1.2 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
DRW2014S1TBLK, DRW-2014S1T-BLK, ASO0007
ASUS DRW-2014S1T X Multi DVDR/RW DRIVE



The ASUS DRW-2014S1T is X Multi DVDR/RW drive capable of reading data from and writing data on DVD+R/RW/DVD-R/RW/ DVD-RAM formats. The dual compatibility feature of the DRW-2014S1T allows you to create DVDs that can be played or read by most DVD-ROM drives and DVD players. This function provides you with flexibility and efficiency in terms of multimedia data storage and sharing.

Multi Function: (X MULTI)
- Max. 20X DVDR/ 8X DVD+RW/ 6X DVD-RW/ 8X DVDR (DL)
- Max. 48X CD-R/ 32X CD-RW
- Max. 16X DVD-ROM/ 48X CD-ROM
- Max: 14X DVD-RAM Write/12X DVD-RAM Read

Over-Speed Burning
Burn 2.4X DVDR (Double Layer) Disc at 8X Speed

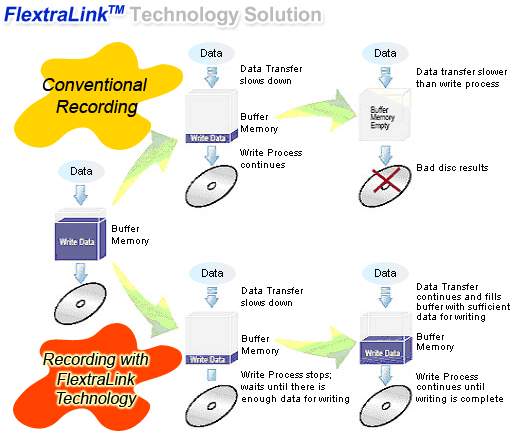

FlextraLink Buffer Underrun Errors Prevention Technology
Built-in FlextraLink  prevents users from buffer underrun problems and eliminates the creation of unusable discs. Throughout the recording process, FlextraLink  consistently monitors the data buffer status to ensure best recording quality under high-speed operation.

FlextraSpeed Optimal Writing Speed Adjustment Technology
Built-in FlextraSpeed  and AI Auto Speed Adjustment Tech. enhance accuracy and reliability when reading/writing/re-writing across a broad range of certified media in different formats. FlextraSpeed  continuously monitors the recording media and sets the optimal writing speeds to ensure best recording quality. The ASUS proprietary FlextraSpeed  occupies minimal system resources so the PC remains full operational and available for other applications even during recording process.

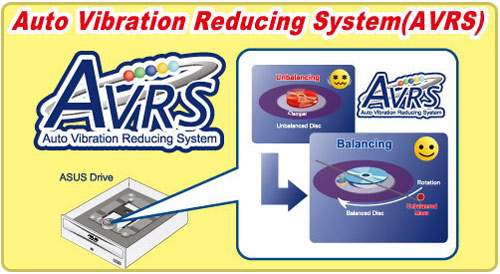

Auto Vibration Reducing System (AVRS)
The AVRS technology is designed to minimize the vibration caused by the spindle motor and resonance between components as well as the drive and PC cases. AVRS is designed to reduce vibration and noise induced by unbalanced mass of rotating machinery. With AVRS, ASUS DRW-2014S1T provides high readability and playability.


Compatible with a Wide Range of Disc Formats.

Operates on Horizontal or Vertical Mounting.

ASUS Unique Live Firmware Update Tools.

Bundle Burning Software.

Windows XP/ NT/2000/VISTA Supported.
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
* PCB color and bundled software versions are subject to change without notice.
* Brand and product names mentioned are trademarks of their respective companies.




Specifications
Write Speed
DVD-R 20X,16X,12X,10X,8X,4X,2X
DVD-RW 6X,4X,2X,1X
DVD+R 20X,16X,12X,10X,8X,4X
DVD+RW 8X,6X,4X,2.4X
DVD+R(DL) 8X,6X,4X,2.4X
DVD-R (DL) 8X,6X,4X
CD-R 48X,40X,32X,16X,8X
CD-RW 32X,24X,16X,10X,4X
DVD-RAM 14X,5X
Read Speed
DVD-R(DL): 8 X max.
DVD+R(DL): 8 X max.
DVD-ROM (Single): 16 X max.
DVD-ROM (Dual): 8 X max.
DVD-RAM: 12 X max.
CD-ROM: 48 X max.
CD-RW: 40 X max.
CD-R: 40 X max.
Access time
DVD: 140 MS
CD: 150 MS
Writing Mode
DVD-R & DVD-R(DL) DAO(Disc-At-Once)/Incremental Recording (Multi-Border Recording)
DVD-RW & DVD-RW (DL) DAO(Disc-At-Once)/Restricted Overwriting/Incremental Recording (Multi-Border Recording)
DVD+R & DVD+R (DL) Sequential Recording (Multi-Session Recording)
DVD+RW & DVD+RW (DL) Random Recording
CD-R/RW DAO(Disc-At-Once)/TAO(Track-At-Once)/SAO(Session-At-Once)/Packet Recording (Multi-Session Recording)
O/S Compatibility
Windows 2000
Windows NT
XP compatible
Vista compatible
Interface
SATA
Data Buffer
2 MB
Bundle Software
Latest Burning Software
Disc Formats
Write: DVD+/-RW,DVD+/-R,CD-R,CD-RW
Read: DVD-ROM,DVD+/-RW,DVD+/-R,Photo CD,Video CD,CD-DA,CD-Extra,CD-Text,CD-R,CD-RW,DVD-RAM
Disc Diameters
12cm/8cm
MTBF
60,000 Power On Hours
Operating Duty Cycle (Read) 20 % POH
Operating Duty Cycle (Write) 2 % POH
MTTR
30 Minutes
Mounting Orientation
Vertical and Horizontal +5 ~ -5
Dimension(WxHxD)
148x42.3x172.4 mm (W x D x H)
Weight
690 g
Power Requirements
DC+5V 5%,DC+12V 10 %
Temperature
Operating: 5 to 45
Storage: -20 to 60
Humidity
Operating: 5% ~ 85% (Non-condensing)
Storage: 5% ~ 90% (Non-condensing)
Vibration
Operating: 0.2 G peak (at 10~500 Hz)
Storage: 1.5 G peak (at 10~500 Hz)
