| CPU |
- Support for an Intel Core 2 Extreme processor/ Intel Core 2 Quad processor/Intel Core 2 Duo processor/ Intel Pentium processor Extreme Edition/Intel Pentium D processor/ Intel Pentium 4 processor Extreme Edition/Intel Pentium 4 processor/ Intel Celeron processor in the LGA 775 package
(Go to GIGABYTE's website for the latest CPU support list.)
- L2 cache varies with CPU
- 1600/1333/1066/800 MHz FSB
|
| Chipset |
- North Bridge: Intel X48 Chipset
- South Bridge: Intel ICH9R
|
| Memory |
- 4 x 1.5V DDR3 DIMM sockets supporting up to 8 GB of system memory
- Dual channel memory architecture
- Support for DDR3 1900/1600/1333/1066/800/MHz, XMP memory modules.
Please refer "Memory Support List" for memory support information.
|
| Audio |
- Realtek ALC889A codec
- High Definition Audio
- 2/4/5.1/7.1-channel
- Support for DTS (dts NEO:PC)
- Support for S/PDIF In/Out
- Support for CD In
|
| LAN |
- Realtek 8111C chip (10/100/1000 Mbit)
|
| Expansion Slots |
- 2 x PCI Express 2.0 x16 slots (The PCIE_16_1 slot supports x16; the PCIE_16_2 supports x16.)
- 3 x PCI Express x1 slots (share with the PCIE_16_2 slot)
- 2 x PCI slots
|
| Storage Interface |
South Bridge:
- 6 x SATA 3Gb/s connectors (SATAII0, SATAII1, SATAII2, SATAII3, SATAII4, SATAII5) supporting up to 6 SATA 3Gb/s devices
- Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
GIGABYTE SATA2 chip:
- 1 x IDE connector supporting ATA-133/100/66/33 and up to 2 IDE devices
- 2 x SATA 3Gb/s connectors (GSATAIIA, GSATAIIB) supporting up to 2 SATA 3Gb/s devices
- Support for SATA RAID 0, RAID 1, and JBOD
iTE IT8718 chip:
- 1 x floppy disk drive connector supporting up to 1 floppy disk drive
|
| IEEE 1394 |
- T.I. TSB43AB23 chip
- Up to 3 IEEE 1394a ports (2 on the back panel, 1 via the IEEE 1394 bracket connected to the internal IEEE 1394 header)
|
| USB |
- Integrated in the South Bridge
- Up to 12 USB 2.0/1.1 ports (8 on the back panel, 4 via the USB brackets connected to the internal USB headers)
|
| Internal I/O Connectors |
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x 4-pin PCIe 12V power connector
- 1 x floppy disk drive connector
- 1 x IDE connector
- 6 x SATA 3Gb/s connectors
- 1 x CPU fan header
- 2 x system fan headers
- 1 x power fan header
- 1 x North Bridge fan header
- 1 x front panel header
- 1 x front panel audio header
- 1 x CD In connector
- 1 x S/PDIF In header
- 1 x S/PDIF Out header
- 2 x USB 2.0/1.1 headers
- 1 x IEEE 1394a header
- 1 x parallel port header
- 1 x serial port header
- 1 x power LED header
- 1 x chassis intrusion header
|

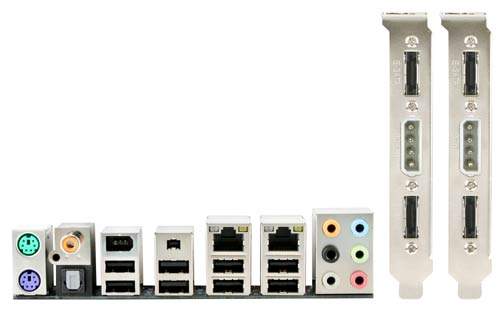

| Back Panel Connectors |
- 1 x PS/2 keyboard port
- 1 x PS/2 mouse port
- 1 x coaxial S/PDIF Out connector
- 1 x optical S/PDIF Out connector
- 8 x USB 2.0/1.1 ports
- 2 x IEEE 1394a ports
- 2 x RJ-45 port
- 6 x audio jacks (Center/Subwoofer Speaker Out/Rear Speaker Out/Side Speaker Out/Line In/Line Out/Microphone)
|
| I/O Controller |
- iTE IT8718 chip
|
| H/W Monitoring |
- System voltage detection
- CPU/System temperature detection
- CPU/System/Power fan speed detection
- CPU overheating warning
- CPU/System/Power fan fail warning
- CPU fan speed control
|
| BIOS |
- Supports QuadBIOS
- 2 x 8 Mbit flash ROM
- Use of licensed AWARD BIOS
- PnP 1.0a, DMI 2.0, SM BIOS 2.3, ACPI 1.0b.
|
| Unique Features |
- Support for Dynamic Energy Saver
- Support for @BIOS
- Support for Download Center
- Support for Q-Flash
- Support for EasyTune
- Support for Xpress Install
- Support for Xpress Recovery2
|
| Form Factor |
- ATX Form Factor; 30.5cm x 24.4cm
|
| Remark |
- Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
- Due to most hardware/software vendors no longer offer support for Win9X/ME. If some vendors still has Win9X/ME drivers available, we will publish on website.
- Duo to chipset limitation, Intel ICH9R RAID driver does not support Windows 2000 operating system.
|
