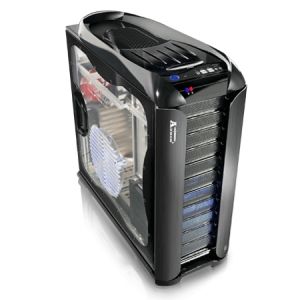

ThermalTake Armor+ Chassis Inc. Side Window w. 23cm Fan, no PSU - Black

No Longer Available

Part Number:

83669

(?) Brand:

ThermalTake Web Site

Manuf No:

VH6000BWS

Shipping Weight:

38 KG (Includes product packaging)
Estimate Shipping

Date Added:

22/4/2008

Add to wishlist

Write a Review

Details Files Images & Video

All stock codes associated to this product

VH6000BWS, CASEVH6000BWS, CASE-VH6000BWS

Patent Information
Country	Patent No.
Taiwan	M324401 D122247

	Optimized design for both liquid cooling and air cooling system
	Sliding hood with toolbox on top. (Upgradable to LCS.)
	10 PCI slots design for quad-graphic card configuration
	Tool free design for 5.25 device and PCI slot.
	Sliding motherboard tray
	Independent thermal management for CPU, VGA & HDD.
	Cable management system for better cable routing and internal air flow
	Evolutionary adjustable PSU supporting bridge
	MicroATX, ATX, Extend-ATX supported

Organized HDD cable management

Support up to 14
drive bays
(7 5.25 and 7 3.5 device)

Sliding Motherboard tray


High efficiency HDD cooling module	23 cm fan installed for extra VGA cooling	Swappable HDD module/ Fan module	Swappable VGA fan holder


Removable HDD cage	7 Modularized HDD tray	7 5.25 slot-in to lock device.


10 Screwless PCI slots with preserved screw holes	Extra bottom space for better expandability. (After HDD/Fan module removed)	Adjustable PSU supporting bridge


Front (intake): 140 x 140 x 25mm fan or 120 x 120 x 25 fan	Bottom (intake) : Two 140 x 140 mm fans or Two 120 x 120 mm fans

Side (intake): 230 x 230 x 20mm blue LED fan, 800rpm, 15dBA	Honeycombed opening

HDD (intake):
140 x 140 x 25mm blue LED fan, 1000rpm, 16dBA or
120 x 120 x 25mm fan

Rear (exhaust) :
120 x 120 x25 mm TurboFan,
1300rpm, 17dBA

Bottom (intake) :
140 x 140 x 25 mm Fan, 1000rpm, 16dBA or
120 x 120 x 25 mm Fan, 1300rpm, 17dBA

Front (intake) :
140 x 140 x 25 mm Fan, 1000rpm, 16dBA or
120 x 120 x 25 mm Fan, 1300rpm, 17dBA

VGA (intake) :
140 x 140 x 25 mm Fan (optional) ,
or 120 x 120 x 25 mm Fan (optional)

140 x 140 x25mm,
1000 rpm, 16dBA

120 x 120 x25mm,
1300 rpm, 17dBA

Model	VH6000BWS
Case Type	Super Tower
Dimension (HWD)	600 x 245 x 625 mm (23.6 x 9.6 x 24.6 inch)
Net Weight	16.8kg(37.0lb)
Side Panel	Transparent window
Sliding Motherboard Tray	Yes
Cable Management	Yes
Sliding hood	Yes
Adjustable PSU bridge	Yes
Material	Front door: Aluminum/ Chassis: 1.0mm SECC
Color	Black
Cooling System	- Front (intake) : 140 x 140 x 25mm blue LED fan, 1000rpm, 16dBA or 120 x 120 x 25mm fan - Rear (exhaust) : 120 x 120 x25 mm TurboFan, 1300rpm, 17dBA - Side (intake) : 230 x 230 x 20mm blue LED fan, 800rpm, 15dBA - Bottom (intake) : Two 140 x 140 mm fans (optional) or Two 120 x 120mm fans (optional) - VGA (intake) : 140 x 140 x 25mm fan (optional) or 120 x 120 x 25mm fan (optional)
Motherboards	9.6 x 9.6 (Micro ATX), 12 x 9.6 (ATX), 12 x 13 (Extend ATX)
Drive Bays -5.25 Drive Bay -3.5 Drive Bay -3.5 Drive Bay(Hidden)	7 1(Converted from one 5.25 drive bay) 7
Front I/O	e-SATA connector x 1, USB2.0 x 4, IEEE 1394 Firewire x 1, HD Audio
Expansion Slots	10
