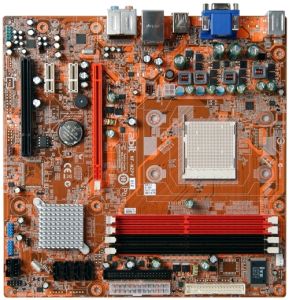

Abit NF-M2PV Motherboard
  • AM2, GeForce 6100 + nForce 405, HT 2000, 2x DDR2-800, PCI-Ex16, 4x SATA-II, RAID, LAN, 8Chl, VGA, mATX

IMG 1 of 1
No Longer Available
Part Number:
83937
(?) Brand:
Abit
Manuf No:
NF-M2PV; 1003075401
NFM2PV; 1003075401
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
NF-M2PV;, 1003075401, NFM2PV;1003075401, NF-M2PV
Specifications


CPU

  • Socket AM2 Processor with 2000MT/s system bus
  • AMD Cool 'n' Quiet Technology
Chipset
  • NVIDIA GeForce6100+430 single chip
Memory
  • 2 X 240-pin DIMM sockets support max. memory capacity 8GB
  • Supports Dual channel DDR2 800/667/533 Un-buffered ECC/Non-ECC memory
Graphics
  • Integrated NVIDIA GeForce6100 Graphics
  • Windows Vista Premium H/W Ready
LAN
  • On board 10/100 LAN
Audio
  • On board HD 7.1 CH Audio CODEC
Expansion Slots
  • 1 x PCI-E X16
  • 2 x PCI-E X1
  • 1 x PCI
Internal I/O
  • 1 x Floppy Port supports up to 2.88MB
  • 1 x Ultra DMA 133/100/66/33 IDE connector
  • 2 x 5*2 pin and 2 x 5*1 pin USB2.0 header (support 6 ports)
  • 1 x FP-Audio connector
Back Panel I/O
  • 1 x PS/2 Keyboard, 1 x PS/2 Mouse
  • 1 x VGA
  • 4 x USB2.0, 1 x RJ-45 LAN Connector
  • Audio connector (Front, Line-in, MIC-in, Center/Subwoofer, Surround, Rear Surround)
Serial ATA
  • 4 x SATA 3Gb/s support SATA RAID 0/ 1/ 0+1/ 5
Form Factor
  • Micro ATX form factor 244 x 244mm
  • PCB Color: Orange
RoHS
  • 100% lead-free process and RoHS compliant

No additional files, specification sheets, guides or documentation found for product.

Warranty: 2-year RTB

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
