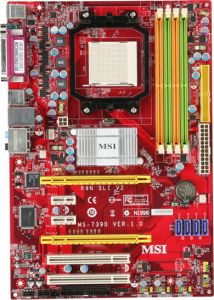

MSI K9N SLI V2 Motherboard
AM2, nForce 570LT SLI, HT 2000, 4x DDR2-800, 2x PCI-Ex16, RAID, GigLAN, 8Chl, ATX

CPU

AMD  Athlon 64 X2, Athlon 64, Athlon FX and Sempron in the Socket AM2 package.
Please refer to CPU Support for compatible CPU; the above description is for reference only.

FSB

HyperTransport 1.0/2.0 supporting speed up to 1GHz (2000MT/s)

Chipset

NVIDIA nForce 570LT SLI Chipset

Main Memory

Supports Dual DDR2 667/800
- 4 DDR2 DIMMs (240pin / 1.8V)
- Supports a maximum memory size up to 8GB.

Slots

2 PCI Express x16 slots support SLI technology, support PCIE x 8 speed
2 PCI Express x1 slots. (support PCI Express Bus specification v1.0a compliant)
2 PCI slots, support 3.3V/ 5V PCI bus Interface.)

On-Board IDE

One IDE port by NVIDIA nForce 570LT SLI
- Supports Ultra DMA 66/100/133 mode
- Supports PIO, Bus Master operation mode
- Can connect up to two IDE devices

On-Board SATA

4 SATA II ports by NVIDIA nForce 570 SLI
- Supports storage and data transfers at up to 3Gb/s

RAID Function

- SATA II 1~4 supports RAID 0/ 1/ 0+1/5 or JBOD mode by NVIDIA nForce 570LT SLI

Audio

Chipset integrated by Realtek ALC888
- Flexible 8-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec

LAN

- Supports Gigabit LAN 10/100/1000 Fast Ethernet by Realtek RTL8211BL

Internal I/O Connectors

- ATX 24-pin power connector
- ATX 4-pin 12V CPU power connector
- CPU / System x 2 FAN connectors
- CD-in connector
- Clear CMOS Jumper
- Chassis intrusion switch connector
- Front panel audio connector
- Front panel connector
- 3 x USB 2.0 connector support additional 6 ports
- 1 x Floppy disk drive connector
- 4 x Serial ATA II connectors
- 1 x ATA133 IDE connectors
- TPM Module connector (optional)
- 1 x SPDIF-out connector (optional)

Back Panel I/O Ports

- 1 x Parallel port
- 1 x Serial port (COM 1)
- 1 x PS/2 keyboard
- 1 x PS/2 mouse

Dimension

30.5cm(L) x 21.0cm(W) ATX Form Factor

Mounting

6 mounting holes.
